Flat Mount 1300x600 400lbs Heavy Duty; PosPost install Leveling; Locks

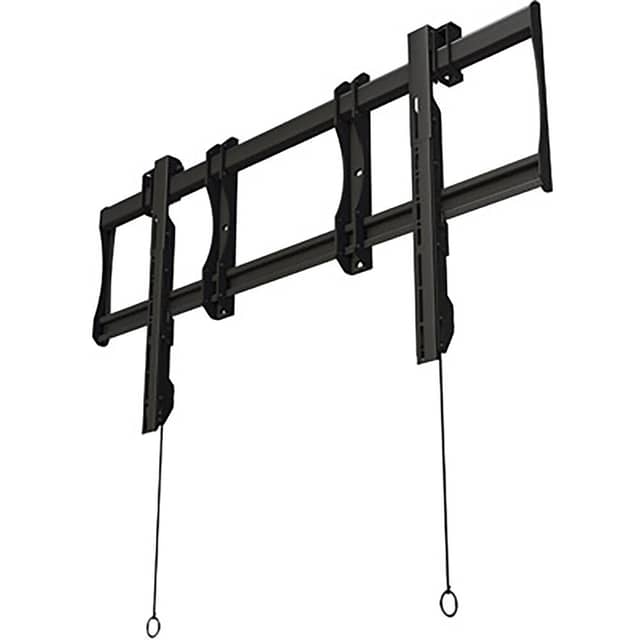

The Mustang Professional MPF-XHD136UAL is a heavy-duty flat display mount designed for 70-inch to 100-inch-plus large-format and interactive displays. It supports displays weighing up to 400 pounds and accommodates VESA patterns up to 1300x600mm. A 1.97-inch depth from the wall, post-installation leveling, and dual steel lock brackets address the core requirements of large-display mounting.

Ideal Use Cases

This model is intended for large-format and interactive displays within the stated 70-inch to 100-inch-plus size range. Its 400-pound load rating makes it suitable for compatible displays that exceed the capacity of lighter-duty mounts. The maximum 1300x600mm VESA pattern also addresses the wider mounting configurations commonly associated with physically large displays.

The flat mounting design is appropriate when the display should remain close to the wall rather than extend outward on an articulated mechanism. At 1.97 inches from the wall, the MPF-XHD136UAL provides a defined mounting depth for planning the display installation and surrounding space.

Why Choose This Model

The MPF-XHD136UAL combines high load capacity, broad VESA support, a close wall depth, post-installation leveling, and physical security provisions in one mount. Its high-grade cold rolled steel and aluminum construction is specifically identified for the demands of large-format display mounting.

Post-installation leveling is an important practical feature. Once a compatible display is mounted, its level can be refined without treating the initial placement as the final adjustment. This is particularly useful with large displays, where small alignment differences can become more noticeable across the width of the screen.

Security is addressed through dual steel lock brackets with security screws. These components provide a defined locking arrangement for installations where limiting unauthorized removal or movement is a consideration.

Installation and Integration

Before installation, confirm that the display falls within the mount’s stated limits: a maximum weight of 400 pounds and a VESA pattern no larger than 1300x600mm. Display size is identified as 70 inches through 100 inches and larger, but weight and mounting-pattern compatibility remain essential selection criteria.

The mount positions the installed display 1.97 inches from the wall. This measurement should be considered when planning the relationship between the display, wall surface, and any installation requirements behind the screen. Because the product is a flat mount, it is intended for an installation centered on a close-to-wall display position.

After the display has been mounted, the post-installation leveling feature allows alignment to be adjusted. The dual steel lock brackets and security screws can then be used as the mount’s stated security provision. The supplied data does not identify box contents, wall-material requirements, or additional installation accessories, so those details should be confirmed for the specific project.

Performance Highlights

• Supports compatible displays with a load rating of up to 400 pounds.
• Accommodates VESA mounting patterns up to 1300x600mm.
• Designed for 70-inch to 100-inch-plus large-format and interactive displays.
• Positions the display 1.97 inches from the wall.
• Provides post-installation leveling for final alignment.
• Uses high-grade cold rolled steel and aluminum construction.
• Includes dual steel lock brackets with security screws as its stated security system.

What Makes It Different

The defining characteristic of the MPF-XHD136UAL is the concentration of large-display specifications in a flat mounting format. The 400-pound rating supports substantially heavy compatible displays, while the 1300x600mm maximum VESA pattern addresses wide mounting interfaces. These capabilities are paired with a 1.97-inch wall depth rather than an unspecified mounting profile.

Its post-installation leveling and dual-lock security arrangement add two clearly documented functions beyond basic display support. Leveling provides a way to refine alignment after mounting, while the dual steel brackets and security screws address physical locking. Together, these features make the model easy to evaluate against specific capacity, alignment, profile, and security requirements.

Final Assessment

The Mustang Professional MPF-XHD136UAL is a purpose-defined flat mount for compatible large-format and interactive displays. Its strongest selection points are the 400-pound load rating, maximum 1300x600mm VESA support, 1.97-inch wall depth, post-installation leveling, and dual steel lock brackets with security screws. For a display within those stated limits, it offers a focused combination of heavy-duty capacity, close wall placement, adjustable final alignment, and integrated physical security.
