Description
LG US340C Overview

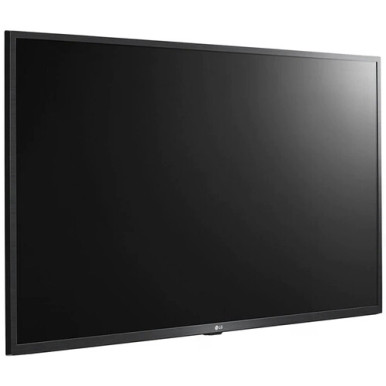

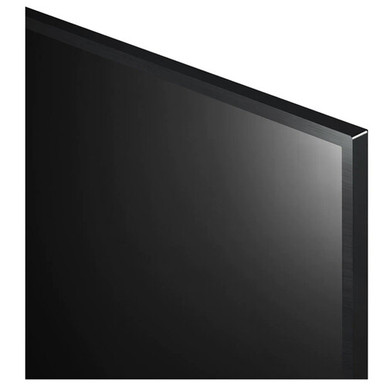

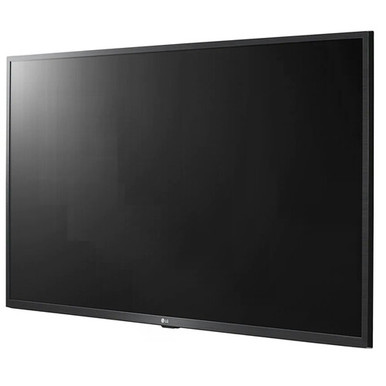

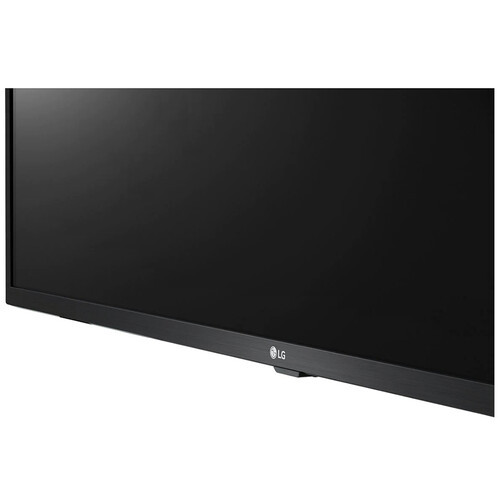

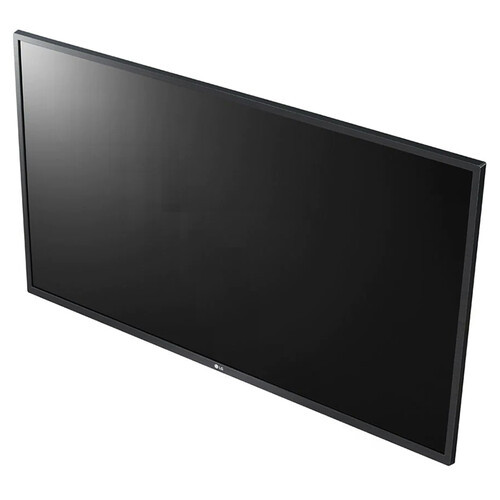

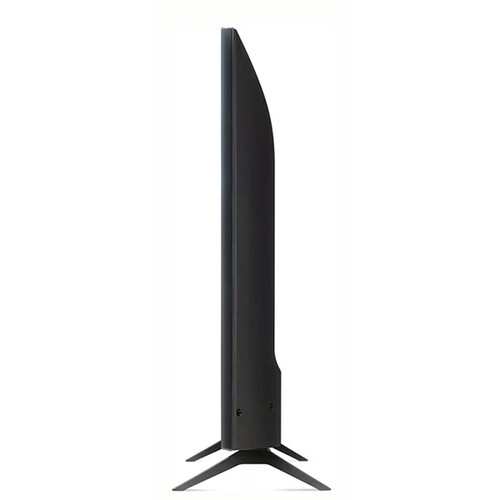

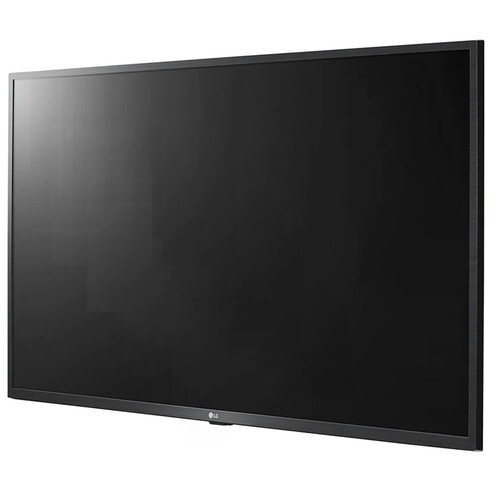

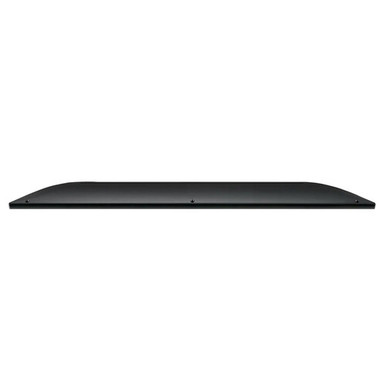

Welcome clients or advertise your business or product with the LG US340C 75" Class HDR 4K UHD Commercial IPS LED TV. It features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 350 cd/m² and 1400:1 contrast ratio help improve visibility in high-brightness environments, such as a storefront window.
The US340C upscales Full HD content to near-4K quality to enhance the clarity and impact of your content. Dual 10W speakers enable your message to be heard as well as seen
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- Up to 350 cd/m² of Brightness
- HDR10 & HLG Compatibility
- 1400:1 Contrast Ratio
- 3.5mm Composite Video, 2x HDMI Inputs
- Built-In Ethernet Connectivity
- Digital Signage Capable
- Dual Built-In 10W Speakers
- Remote Control Included
4K UHD Resolution
With 4K UHD resolution, the US340C series provides more detail and more vivid, realistic color. The 4K Upscaler automatically upscales Full HD content to near-4K quality. IPS technology allows for wide viewing angles with accurate color.
Customizable Screen
The US340C series allows for a variety of greeting messages to make your customers feel welcome. You can also set content to be displayed even if there is no input signal.
Compatible with A/V Control Systems
The US304C is certified by Crestron Connected for seamless integration and automated control.
USB Auto Playback
USB data cloning makes managing multiple displays more efficient. Instead of setting up each display one by one, data can be copied to a thumb drive for one display, then copied to each other display.
DPM (Display Power Management)
DPM can be configured to be on only when there is a TV signal present to manage power more efficiently.
Time Scheduler
Schedule when the TV will turn on and off automatically. Set opening/closing hours and holidays to conserve energy while ensuring that your commercial or corporate messaging is seen at the most opportune hours.
Additional Features
- HDR 10 Pro
- NTP Sync Timer
- RJP (Remote Jack Pack) compatibility
- Teleadapt/Guestlink (HDMI CEC)
- SmartEnergy Saving
- Motion Eye Care
- Lock Mode
- Hotel Mode/PDM/Installer Menu
- Insert Image
- USB Auto Playback+ (Playlist)
- Moving Picture Playback
- Sleep Timer
- WoL (Wake on LAN)
- SNMP
- Self Diagnostics (USB)
- Simplink HDMI CEC
- IR out via RS-232C
- Multi IR Code
- SuperSign Control
LG US340C Specs
Display
| Screen Size (Diagonal) | 75" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| HDR Compatibility | HDR10, Hybrid Log Gamma |
| Brightness | 350 cd/m² |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1400:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Response Time | 8 ms (GtG) |
| Backlighting Technology | LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 – Audio, Video (Side) 1 x HDMI – Audio, Video (Rear) 1 x RF Antenna – Audio, Video (Rear) 1 x 1/8" / 3.5 mm – Audio, Video (Rear) |
| Output Ports | 1 x TOSLINK Optical – Audio (Rear) 1 x 1/8" / 3.5 mm – Audio (Rear) |
| USB Ports | 1 x USB 2.0 Type-A (Side) |
| Ethernet Ports | Rear: 1 |
| Control | RS-232C via DE-9/DB-9 |
| Digital Media Slot | None |
General
| TV Tuner | Yes - ATSC, Clear QAM |
| HDCP Support | Yes, Version 1.4 |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| External Speaker Output | 1 W |
Convenience
| Analog Video Formats | NTSC |
Electrical
| Power Consumption | Maximum: 246.2 W Typical: 221.0 W Standby: < 0.5 W |
Environmental
| Certifications | FCC, UL, as per Manufacturer |
Physical
| Wall Mounting | 600 x 400 mm |
| Dimensions | 66.7 x 38.5 x 3.5" / 1693.0 x 978.0 x 88.8 mm (without Stand) 66.7 x 41.3 x 13.6" / 1693.0 x 1048.0 x 345.0 mm (with Stand) |
| Weight | 76.3 lb / 34.6 kg (without Stand) 78 lb / 35.4 kg (with Stand) |
Packaging Info
| Package Weight | 98 lb |
| Box Dimensions (LxWxH) | 71.5 x 43.5 x 9" |
