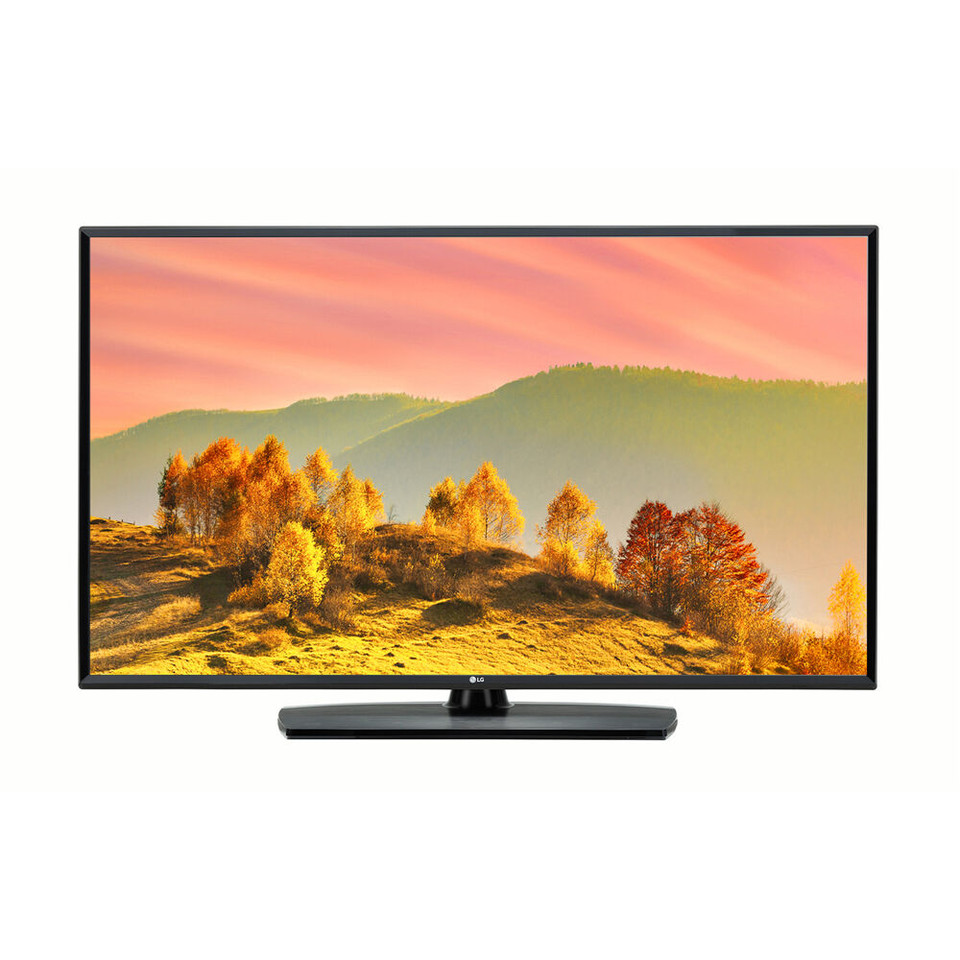

LG 65UN570H0UD 65" 4K UHD PRO IDIOM HOSPITALITY TV

The UN570H Series 65″ UHD 4K HDR Commercial Hospitality TV from LG is tailor-made for commercial industries like hotels or hospitals, offering a breathtaking 4K image with HDR10 and HLG support that enhances contrast for a more realistic viewing experience of TV shows and movies. For operators, the UN570H is designed for effortless setup and management with the Pro:Centric Direct hotel content management solution, along with embedded b-LAN featuring the Pro:Idiom chipset to handle PPV content distribution. Here are some key features:

Pro:Centric Direct: This hotel content management solution streamlines the management of multiple UN570H installations, allowing for remote servicing and management via LAN connection. Pro:Centric enables custom interface implementation and supports IoT-based in-room control.

Pro:Idiom: The Pro:Idiom chipset, combined with embedded b-LAN connection, simplifies the restriction or granting of access to PPV content.

Ez-Manager: Deploying multiple UN570H units is made easy with Ez-Manager, a built-in system that automatically configures Pro:Centric TVs, eliminating the need for manual setup.

Multi-Code IR: The UN570H supports multi-code IR technology, ensuring that users can control their TVs without interference in locations where multiple TVs are used in close proximity, such as hotel suites or hospital rooms.

Smart Features:

• Smart Home launcher bar
• Quick Access
• ARC (Audio Return Channel on HDMI 2)
• Wake on RF
• Diagnostics via RF remote
• Simplink (HDMI-CEC)
• Anti-theft system (Kensington lock, Credenza/security aperture, and lock down plate)

Additional Hospitality Features:

• Port block
• Insert image
• Instant on
• Auto off/sleep timer
• Energy-saving mode

Additional UN570H Features:

• Game Optimizer
• Dual 10W built-in speakers
• 3 x HDMI 2.0 ports (two on the side, one in the rear)

Specification

• ategory

  Pro:Centric Enhanced

DESIGN

• Front Colour

  Ashed Blue

• Stand Type

  1 pole (Fixed)

DISPLAY

• Inch

  65″

• Resolution

  3,840 x 2,160 (UHD)

VIDEO

• HDR 10 Pro / HDR HLG

  Yes / Yes

• Game Optimizer

  Yes

AUDIO

• Speaker System

  2.0 ch

• Speaker (Sound Output)

  10W + 10W

BROADCASTING
SYSTEM

• Digital (Terrestrial, Cable, Satellite)

  ATSC, Clear QAM

HOSPITALITY SOLUTION

• Solution Type

  Pro:Centric (Direct 5.5, PCA 3.8)

• Pro:Idiom (Mobile, Lite)

  Yes

SMART FEATURE

• Smart Feature

  Smart Home (Launcher Bar), Quick Access, HDMI-ARC (HDMI 2), Wake on RF, Diagnostics (RF Remote), Simplink (HDMI-CEC) (1.4), Anti-theft System (Kensington Lock, Credenza/Security Screw Hole (Except 65″), Lock Down Plate (for Easy Installing) (Except 65″))

HOSPITALITY FEATURE

• Hospitality Feature

  Port Block, Insert Image, Instant ON, Auto Off / Sleep Timer, Energy Saving Mode, b-LAN Embedded

JACK INTERFACE

• Set Side

  HDMI In 2 (2.0), USB (2.0)

• Set Rear / Bottom

  HDMI In (2.0), RF In (Single b-LAN), AV In (Phone Jack Type), Digital Audio Out (Optical), TV link Configuration (Phone Jack Type) (b_LAN Service), RJ45 (Usage Purpose) (Pro:Centric)

DIMENSION

• VESA Compatible

  300 × 300 mm

• W × H × D / Weight (with Stand)

  1,454 × 909 × 340 mm / 22.9 kg

• W × H × D / Weight (without Stand)

  1,454 × 838 × 57.7 mm / 21.5 kg

• W × H × D / Weight (Shipping)

  1,600 × 970 × 228 mm / 28.9 kg

• On Bezel Width (L/R/U/B)

  12.8 / 12.8 / 12.8 / 19.9 mm

• Off Bezel Width (L/R/U/B)

  6.8 / 6.8 / 6.8 / 18.4 mm

POWER

• Power Supply

  AC 100-240 V, 50/60 Hz

REQUIRED LISTING(CERTIFICATION)

• EMC

  FCC
