8K Ready 16 Port Multi Format Digital Matrix Switcher

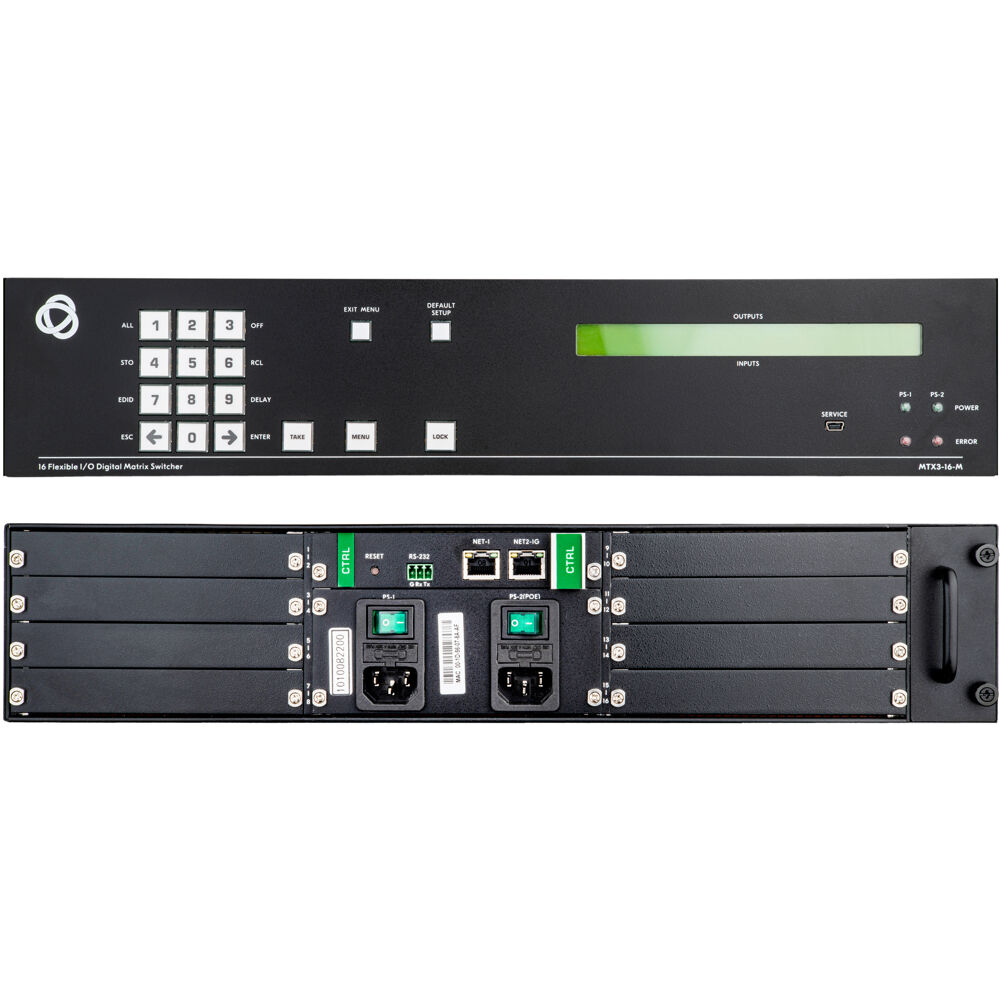

The Kramer MTX3-16-M is an intelligent, high-performance 16×16 modular matrix designed for switching and distributing multi-format audiovisual signals. Its 8K-ready architecture, specified 50Gbps bandwidth, and 60Hz refresh rate provide a foundation for demanding signal-routing systems. The chassis combines eight flexible card slots with an included CTRL central control card, allowing the system to be configured around the required mix of input and output connections.

Ideal Use Cases

This model is suited to centralized AV installations that need to route multiple sources among multiple destinations. Its modular design is particularly useful when the required combination of signal formats, inputs, and outputs cannot be addressed efficiently by a fixed-format matrix. Integrators can configure the available slots with input or output matrix cards and select either dual-port or quad-port card designs. This flexibility supports systems that need a purpose-built port arrangement while retaining the routing capacity of a 16×16 matrix platform.

Why Choose This Model

The MTX3-16-M provides a configurable alternative to matrices with permanently assigned connector types. Eight card slots accommodate modular matrix cards carrying either input or output signals, enabling the chassis to be adapted to the intended AV workflow. Dual-port and quad-port card options provide further control over how the available slots are allocated. The included CTRL central control card adds secured LAN connectivity for remote management and control, giving system operators network-based access to the matrix. These capabilities make the chassis appropriate when flexibility and centralized control are central design requirements.

Installation and Integration

Installation begins with determining the required balance of inputs and outputs and then selecting compatible modular cards for the eight available slots. Each slot can accommodate a matrix card with quad or dual ports, and cards may be assigned to either input or output multi-format signals. This structure lets an integrator build the signal interface around the installation instead of accepting a fixed connector arrangement.

The CTRL central control card is included in the chassis and provides secured LAN connectivity for remote system management and control. Network planning should therefore be included in the integration process. The source data does not specify which modular input or output cards are included, so the final connection types and populated port configuration depend on the cards selected for the system.

Performance Highlights

The MTX3-16-M is identified as an 8K-ready matrix and is specified with 50Gbps bandwidth and a 60Hz refresh rate. Its 16×16 architecture is designed for the switching and distribution of multi-format audiovisual signals. The high-bandwidth platform is paired with a modular signal-card structure, allowing performance capability and interface selection to be addressed within the same chassis. This combination supports signal-routing designs that require both substantial matrix capacity and a tailored input/output configuration.

What Makes It Different

The defining feature of the MTX3-16-M is the way it separates the matrix chassis from the final signal-interface configuration. Instead of establishing every input and output format at the factory, the chassis supplies eight slots for dual-port or quad-port modular cards. Those cards can handle either input or output multi-format signals, giving integrators direct control over slot allocation and port direction.

The included CTRL central control card is another key distinction. It centralizes matrix control and adds secured LAN connectivity for remote management. Together, the modular card architecture and networked control system create a matrix that can be configured around a specific signal-routing plan while maintaining a consistent 16×16 platform.

Final Assessment

The Kramer MTX3-16-M is a strong fit for installations requiring configurable multi-format AV switching rather than a fixed collection of ports. Its eight modular card slots, support for dual- and quad-port input or output cards, included CTRL control card, and secured LAN management provide a flexible integration framework. With 8K-ready positioning, 50Gbps bandwidth, a 60Hz refresh rate, and 16×16 routing capability, it offers a clearly defined foundation for building a customized matrix system. Required modular cards should be selected according to the intended signal formats and input/output balance.
