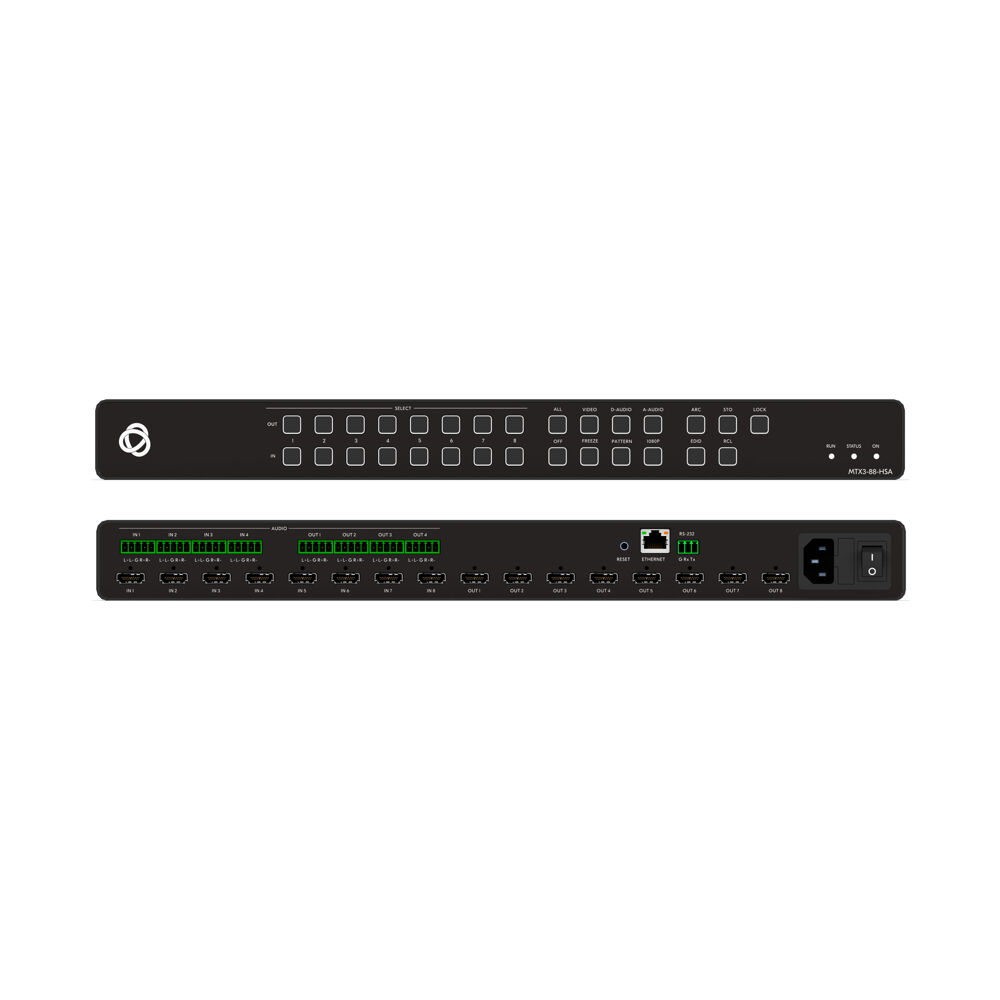

8x8 4K60 4:4:4 HDMI+Audio Scaler Based Matrix/Switcher

Ideal Use Cases

The MTX3-88-HSA is intended for HDMI distribution layouts that need eight source connections independently routed across eight HDMI outputs. It is especially relevant when sources and sinks have different capabilities, since each output can be upscaled or downscaled independently. This output-level scaling makes the matrix suitable for mixed endpoint environments without treating all eight destinations as one identical group.

Systems combining HDMI audio, analog audio, and ARC sources are another strong fit. The integrated audio matrix can route digital or analog audio sources to sinks, including ARC sources, and provides four analog audio inputs and four analog audio outputs. Installations requiring both video distribution and flexible audio paths can use the documented capabilities of one matrix/switcher.

Why Choose This Model

The MTX3-88-HSA combines 8×8 HDMI routing with a dedicated video scaling processor. All eight HDMI inputs are independently routable to eight HDMI outputs, while each output supports its own upscaling or downscaling. This design directly addresses capability differences between connected sources and sinks instead of applying one scaling requirement across every destination.

The processor is specified to provide fast, clean switching in less than one second. Its listed 4K60 4:4:4 capability establishes the central video performance level. On the audio side, the integrated matrix expands routing beyond digital audio by adding four analog inputs, four analog outputs, and support for routes involving ARC sources.

Installation and Integration

Connection planning begins with up to eight HDMI sources and eight HDMI sink devices. Each source can be assigned through the matrix to the required HDMI output, while output scaling can account for differences between the source and the connected sink. Because scaling is supported individually on every output, each destination path can be handled according to its own capability requirements.

Analog audio integration is organized around four input ports and four output ports. These connections operate alongside digital audio routing, allowing the system design to include either digital or analog audio sources and corresponding sinks. ARC sources can also participate in the available audio routes. This combined architecture is useful when the required video and audio paths do not follow identical routing patterns.

Performance Highlights

• Eight HDMI inputs independently routable to eight HDMI outputs.
• 4K60 4:4:4 video capability.
• Fast, clean switching in less than one second.
• Independent upscaling or downscaling at every HDMI output.
• Four analog audio inputs and four analog audio outputs.
• Digital and analog audio source-to-sink routing.
• Support for ARC audio sources.

These capabilities address three core system requirements: high-resolution HDMI routing, adaptation between differing endpoint capabilities, and audio routing that extends beyond HDMI-only signal paths. The result is a scaler-based matrix built around clearly defined video and audio functions.

What Makes It Different

The defining feature of the MTX3-88-HSA is the combination of independent scaling on all eight HDMI outputs and an integrated audio matrix. Its video section does more than select an input and direct it to an output; it can scale each output up or down to account for the capabilities of the relevant source and sink. The specified switching time of less than one second further supports rapid routing changes.

The audio section is not limited to digital signals carried with HDMI. Four analog input ports and four analog output ports extend the available routing choices, while ARC sources are explicitly supported. Bringing 8×8 HDMI routing, per-output scaling, digital audio, analog audio, and ARC source routing together distinguishes this model from a basic HDMI selector.

Final Assessment

The MTX3-88-HSA is a high-quality 8×8 scaler-based matrix for systems requiring 4K60 4:4:4 HDMI distribution and adaptable output processing. It provides eight independently routable HDMI inputs, eight HDMI outputs, per-output upscaling or downscaling, and clean switching in less than one second.

Its integrated audio matrix adds meaningful routing capability through four analog inputs, four analog outputs, digital and analog source-to-sink routing, and ARC source support. For installations where endpoint capability differences and audio flexibility matter alongside input and output count, this model offers a focused combination of documented video scaling and audio matrix functions.
