8x8 Seamless Matrix Router, 3X3 Videowall & Multi-viewer

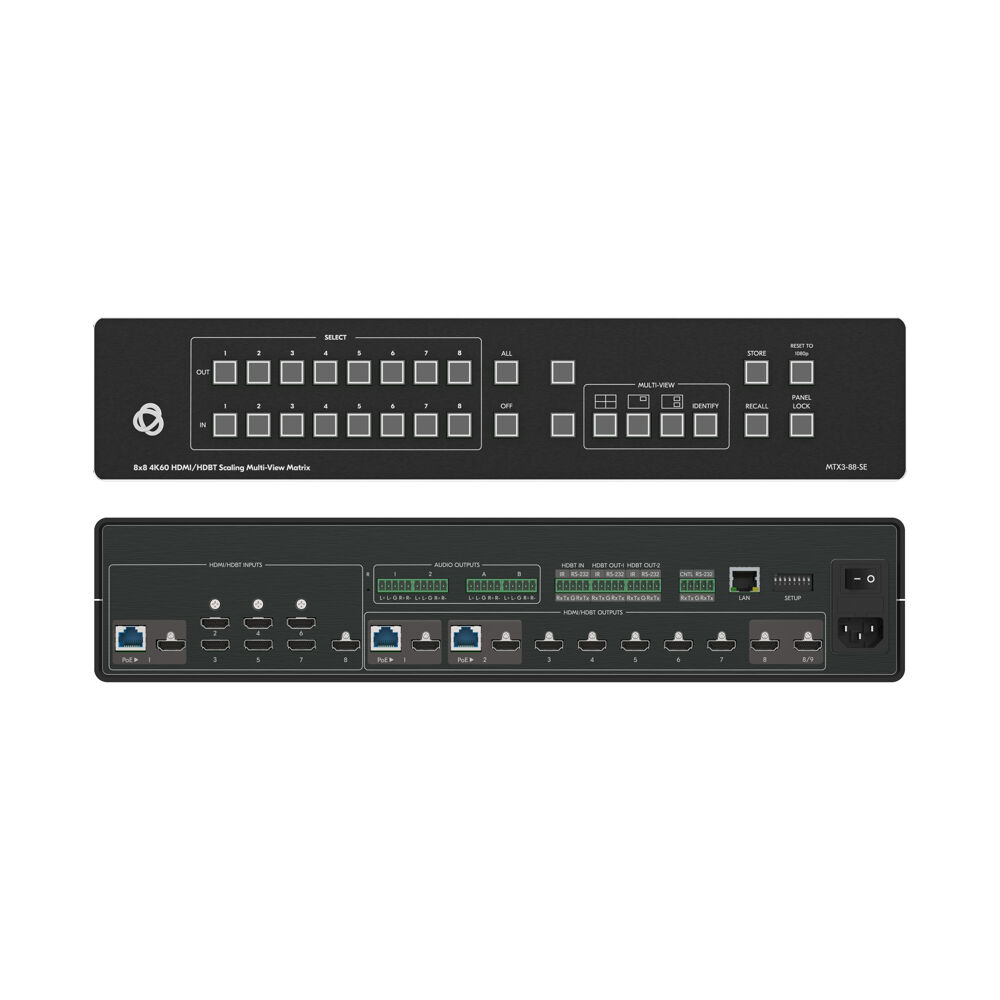

The MTX3-88-SE is a high-performance video-processing seamless matrix scaler built around eight HDMI inputs and eight HDMI outputs. Each HDMI input is independently routable, allowing source-to-display assignments to be managed within one 8×8 platform. An additional HDBT input and two mirrored HDBT outputs expand the connection layout, while integrated multi-viewer and 3×3 video wall capabilities support composite viewing and wall-based presentations.

Ideal Use Cases

This model is suited to presentation systems that need to route multiple HDMI sources among multiple displays while also supporting combined views. Its configuration addresses several specific workflows without limiting the installation to straightforward one-source-per-screen routing.

• Independent routing of eight HDMI inputs to eight HDMI outputs.
• Seamless quad-view presentation for displaying multiple sources within a combined view.
• 3×3 video wall applications requiring coordinated content presentation.
• Local and remote presentation through two mirrored HDBT outputs.
• Systems that need an additional HDBT input alongside the primary HDMI connections.

Why Choose This Model

The MTX3-88-SE combines matrix routing, scaling, multi-viewing, and video wall functionality in one video-processing platform. Its eight HDMI inputs can be routed independently to the eight HDMI outputs, giving each output a selectable source assignment within the matrix. This makes the unit useful when displays need different source content or when routing assignments must change between presentations.

The multi-viewer adds another presentation option by producing high-quality seamless quad-views. Instead of using every display for a single full-screen source, a quad-view can organize content into a four-view presentation. The two mirrored HDBT outputs provide a paired distribution path for presenting the same processed view in local and remote locations.

Installation and Integration

Integration planning should begin with the eight HDMI source connections and eight HDMI display connections. Each input and output can then be assigned according to the required matrix workflow. The additional HDBT input provides a separate connection path for an HDBT source, while the two HDBT outputs should be planned as mirrored outputs rather than two independently routed matrix destinations.

For a 3×3 video wall installation, document the intended display positions and source assignments before configuration. For multi-viewer use, identify which content will appear in the seamless quad-view and where the mirrored HDBT presentation will be shown. This approach keeps the matrix, video wall, and multi-viewer roles clearly defined during commissioning.

The supplied information does not specify HDMI version, HDCP support, supported resolutions, physical dimensions, power requirements, mounting options, or included accessories. Any project requirements involving those details should be confirmed before final installation.

Performance Highlights

The listed refresh rate is 60Hz, and the listed bandwidth is 1 Gbps. The central performance feature is the seamless video-processing design, which supports the matrix scaler and high-quality seamless quad-view presentation. Eight independently routable HDMI inputs and eight HDMI outputs provide the main signal-routing capacity, while the integrated scaling function supports the unit’s broader video-processing role.

The additional HDBT input and mirrored HDBT outputs complement the HDMI matrix when local and remote presentation are both required. Because the HDBT outputs are mirrored, they are specifically intended to carry a duplicated presentation path rather than separate output selections.

What Makes It Different

Routing is only one part of the MTX3-88-SE’s function. The model brings together an 8×8 HDMI matrix, a seamless matrix scaler, quad-view multi-viewing, 3×3 video wall capability, and HDBT connectivity. This combination allows the system to move between individually routed displays, composite multi-view presentations, and coordinated video wall operation within the same platform.

The HDBT arrangement is also distinct: one additional HDBT input supplements the eight HDMI inputs, while two mirrored HDBT outputs support matching local and remote presentations. This clearly defined architecture is useful when the same processed quad-view needs to be delivered to two HDBT output paths.

Final Assessment

The MTX3-88-SE is a focused choice for installations requiring independent 8×8 HDMI routing together with integrated multi-viewer and 3×3 video wall functions. Its eight HDMI inputs, eight HDMI outputs, additional HDBT input, and two mirrored HDBT outputs support flexible presentation layouts without separating routing and quad-view processing into different workflows. For projects centered on 60Hz operation, seamless quad-views, and combined local and remote presentation, it provides a clearly structured video-processing platform.
