6x2 PoE Audio Matrix with DSP and AEC

Ideal Use Cases

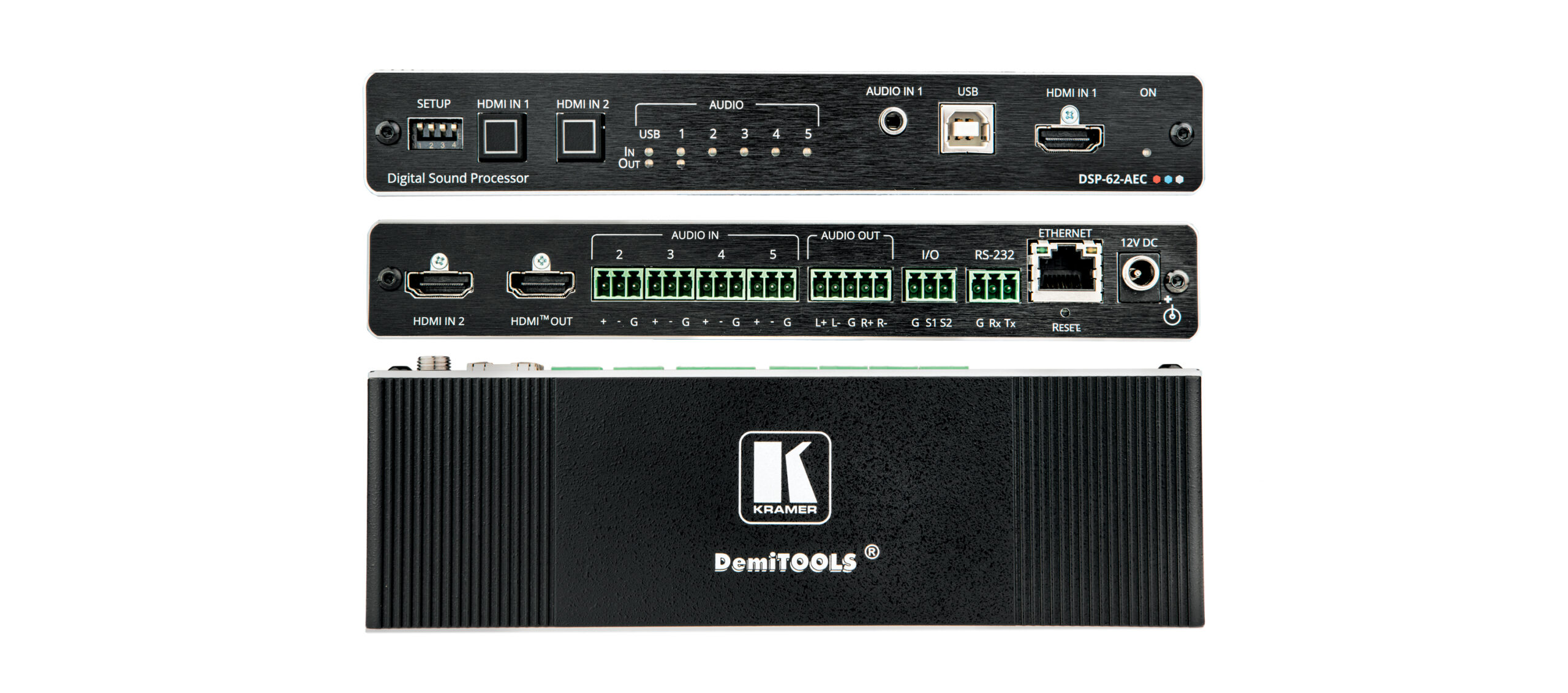

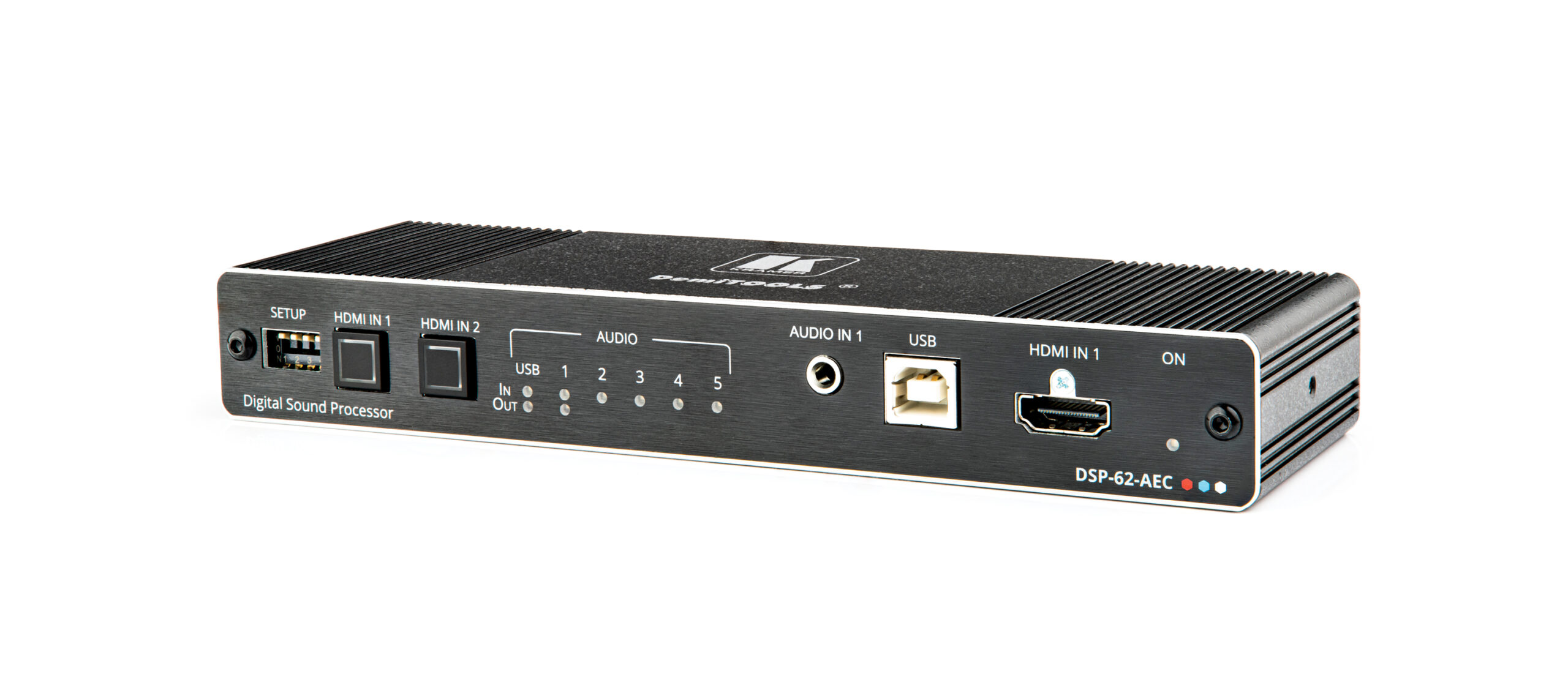

The Kramer DSP-62-AEC is designed for professional audio systems that need a 6 x 2 matrix together with signal processing and communications-oriented audio features. Its six-input, two-output architecture suits installations where multiple incoming audio sources must be managed across two output paths. Acoustic Echo Cancellation makes the model relevant to systems that incorporate microphones, remote participants, or other two-way audio workflows.

HDMI de-embedding allows audio carried by an HDMI signal to become part of the system's audio workflow. A class-compliant USB audio interface provides another path for integrating USB-based audio sources or hosts. These capabilities make the DSP-62-AEC a focused option for installations that combine conventional audio routing, HDMI program audio, USB audio, and echo-managed communication.

Why Choose This Model

The DSP-62-AEC brings several core functions together: 6 x 2 matrix switching, multi-channel DSP, Acoustic Echo Cancellation, HDMI de-embedding, and class-compliant USB audio. This combination addresses projects where routing alone is insufficient and audio signals also require processing or echo cancellation.

As a member of the Kramer XSPerience family of DSP products, the unit is positioned as an advanced professional audio matrix. Its comprehensive graphical interface is intended to make detailed system configuration intuitive and accessible. That interface is especially significant when a project requires control over several audio paths and processing functions rather than a simple fixed signal route.

Installation and Integration

System planning should begin with the 6 x 2 matrix structure: identify the six input-side audio paths and determine how they will feed the two available output paths. Projects using HDMI audio can incorporate the unit's de-embedding capability, while compatible USB systems can connect through the class-compliant USB audio interface. The model is also identified as supporting PoE, which should be considered when planning its power and network-related infrastructure.

Configuration is handled through the provided graphical interface. This gives the installer a centralized way to configure the audio system's available functions and refine the behavior of individual signal paths. The supplied product information does not specify dimensions, mounting options, connector counts, operating temperature, or included accessories, so those details should be confirmed separately when preparing a complete installation plan.

Performance Highlights

Multi-channel DSP is the central processing feature, supporting audio management across the matrix's multiple channels. Integrated AEC addresses acoustic echo within applicable audio workflows, while HDMI de-embedding provides direct access to audio embedded in an HDMI signal. USB audio is supported through a class-compliant interface, adding a defined digital audio integration option alongside the matrix and HDMI functions.

The supplied technical data lists an 18Gbps bandwidth and a 60Hz refresh rate. No HDMI version, supported resolution, HDCP level, audio sampling specification, frequency response, latency figure, or detailed DSP processing list is provided, so no additional performance claims are implied.

What Makes It Different

The defining characteristic of the DSP-62-AEC is the specific combination of matrix routing and integrated audio functions. It is not presented solely as a 6 x 2 switcher: multi-channel DSP and AEC are built into the same model, with HDMI de-embedding and class-compliant USB audio extending the available source options.

The graphical configuration interface further distinguishes the product by placing detailed setup within a user-friendly visual environment. For systems that must coordinate several input paths, two destinations, echo cancellation, HDMI audio, and USB audio, this integrated approach provides a clearly structured platform based on one configuration experience.

Final Assessment

The Kramer DSP-62-AEC is a professional 6 x 2 PoE audio matrix for projects requiring more than basic source selection. Its multi-channel DSP, Acoustic Echo Cancellation, HDMI de-embedding, class-compliant USB audio interface, and graphical configuration environment form a tightly defined feature set. It is best matched to installations where these capabilities are required together and where six incoming audio paths must be organized across two output paths.
