Ultra bright large-venue projector with powered lenses and HDBaseT™.

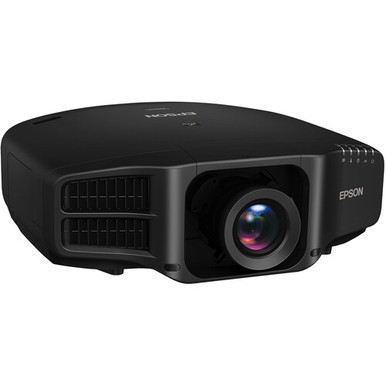

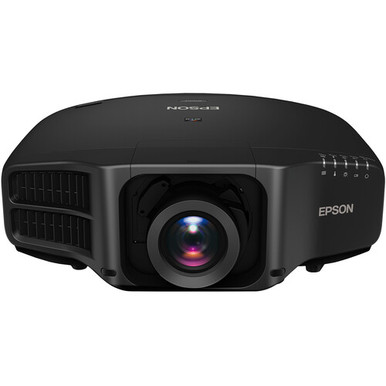

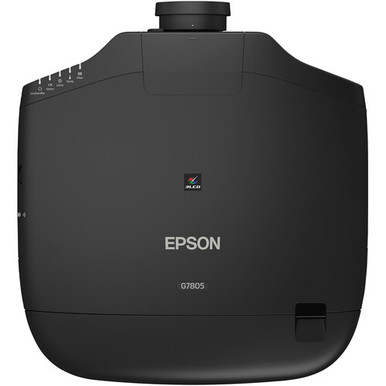

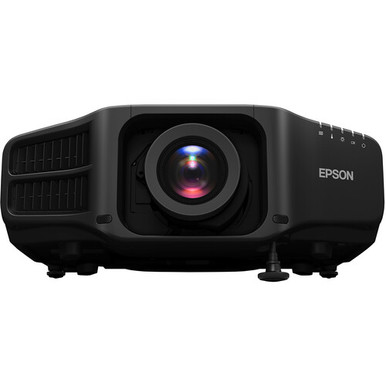

The Pro G7805 large-venue projector delivers ultra bright, uncompromising image quality and XGA resolution. Offering high Color Brightness, Epson® 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the sleek, black G7805 features 8000 lumens of color brightness and 8000 lumens of white brightness1. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI and DVI-D inputs. It also offers nine optional interchangeable lenses with powered lens shift and lens memory (Ships with Middle#1 Lens - V12H004M08). Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.
High Color Brightness with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% Balanced Color Brightness and White Brightness*. Delivering 8000 lumens of color brightness and 8000 lumens of white brightness, the PowerLite Pro G7805 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.
Projection System: High-aperture Epson 3-chip 3LCD technology
Native Resolution: XGA (1024 x 768)
Color Brightness: 8000 lumens
White Brightness: 8000 lumens
Specifications Projector:
Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 8000 lumensWhite Brightness - White Light Output: 8000 lumensAspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 400 W UHELamp Life:
- Normal mode: Up to 3000 hours
- ECO mode: Up to 4000 hours
Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.44 – 2.32Size - projected distance: 50" – 300"Keystone Correction:
(For Standard Lens)
- Horizontal: ±30 degrees
- Vertical: ±45 degrees
Color Reproduction: Up to 1 billion colors
Effective Scanning Frequency Range:
Pixel Clock, Horizontal, Vertical:Pixel Clock
- 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
Horizontal
Vertical
General:
Temperature: 32° to 113° F (0° to 45° C)Weight: 28.4 lb (with standard lens)Security:
- Security cable hole
- Lens lock
- Kensington® lock provision,
Projection Lens:
Type: (For Standard Lens) Powered focus / zoomF-number: (For Standard Lens) 1.70 – 2.30Focal Length: (For Standard Lens) 24.0 mm – 38.2 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.6xLens Shift:(For Standard Lens)
- Vertical: ±67 degrees
- Horizontal: ±30 degrees
Projector Details:
Display Performance:
Input Signal:
- NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
- Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)

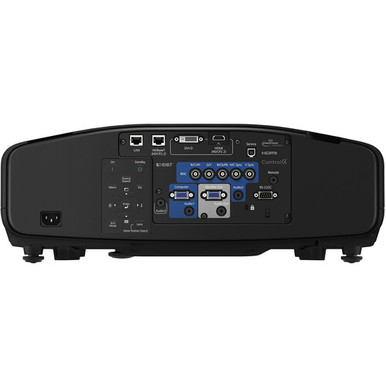

Interfaces:
- HDBaseT x 1
- DVI-D x 1
- HDMI x 1
- Computer: D-sub 15 pin x 1
- Component Video: BNC x 1
- Audio-in: Mini stereo x 3
- Audio Out x 1
- Network: RJ-45 x 1, 100 Mbps Serial: RS-232c
- Hardwire remote jack x 1
- Monitor Out: D-sub 15 pin x 1
Fan Noise:
- Normal mode: 39 dB
- ECO mode: 31 dB
Projector Dimensions:
Including feet: With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)Excluding feet and lens: 20.67 x 16.73 x 7.28 (W x D x H)
Remote Control:
Features: Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:Right / Left:
- Front: ±60 degrees
- Rear: ±30 degrees
Upper / Lower:
- Front: ±20 degrees
- Rear: +10 to +50 degrees
Power:
Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
- Normal mode:601 W
- ECO mode: 498 W
- Communication on: 2.0 W standby
- Communication off: 0.5 W standby
