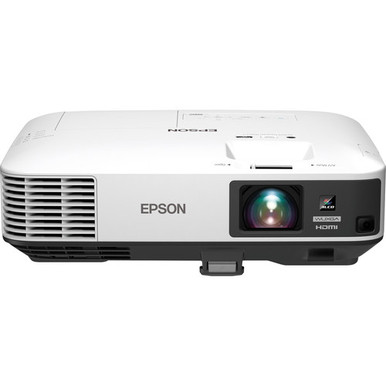

Epson 2265U Overview
Enjoy bright, vibrant images with the Epson PowerLite 2265U 5500-Lumen WUXGA 3LCD Projector. Its 5500 lumens of brightness, combined with its 15,000:1 contrast ratio, will help it overcome ambient light in many situations, helping it retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution will help ensure that text is clear at most viewing distances.
The PowerLite 2265U features VGA, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and a wireless LAN module is also included for wireless networking.
Key Features
- Brightness of 5500 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.38 to 2.28:1 Throw Ratio
- HDBaseT, VGA, Composite, 2 x HDMI Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Built-In 16W Speaker
- Ethernet and RS-232 Controllable
- Wireless LAN Module & IR Remote Included
High Color and White Brightness Levels
Both color and white brightness of 5500 lumens.
Wireless Ready
The PowerLite 2265U includes a LAN module for wireless connectivity.
HDBaseT
HDBaseT technology combines HDMI, Ethernet, and RS-232 into one cable.
HDMI with MHL Connectivity
View 1080p content and mirror your compatible mobile device with MHL and standard HDMI, for instant access to movies, games, and more.
Auto Screen Fit
The Auto Screen Fit feature is designed to quickly and easily adjust the image to fit the screen.
3LCD Color Accuracy
3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
Enhanced Sharpness and Detail
Up to 15,000:1 contrast ratio for enhanced detail.
Stream Content from Your Smartphone or Tablet
The PowerLite 2265U can mirror your mobile device either via MHL or wirelessly using Miracast with the included wireless module.
Secure Wireless Networking
The included wireless LAN adapter is compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols.
Split Screen
Simultaneously project two images (video or still) side-by-side from two different sources.
Remote Management and Control Tools
The included software allows for remote monitoring and control of networked Epson projectors. The PowerLite 2265U is also compatible with the Crestron RoomView software.
Epson 2265U Specs
Image Display
| Display System |
3-Chip Polysilicon TFT LCD |
| Native Chip Resolution |
1920 x 1200 (WUXGA) |
| Maximum Brightness |
5500 Lumens |
| Aspect Ratio |
Native: 16:10 |
| Contrast Ratio |
15000:1 |
| Color Depth |
10-Bit (1.07 Billion Colors) |
Lens
| Focus |
Manual |
| Lens |
f/1.5 - 2 (f = 23 - 38.4 mm) |
| Optical Zoom |
Manual: 1.6x |
| Throw Distance |
4.921 - 29.199' / 1.5 - 8.9 m |
| Throw Ratio |
1.38 to 2.28:1 |
| Projection Size |
50 - 300" / 127.00 - 762.00 cm |
Features
| Keystone Correction |
Vertical: ± 30°
Horizontal: ± 20° |
| Supported HDR Input Formats |
None |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
16W |
| Remote |
Yes |
Input/Output Connectors
Inputs/Outputs
|
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15/DB-15) Video Input
2 x 1/8" / 3.5 mm Mini Audio Input
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
1 x Ethernet (RJ45) LAN Input
1 x RS-232 (DE-9/DB-9) Control Input
1 x USB Type-B Data Input
1 x USB Type-A Power Output |
| Wireless LAN / Wi-Fi |
Yes, Built-in |
General
| Light Source |
Lamp (1 x UHE) |
| Lamp Power |
300 W |
| Expected Lamp Life |
Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours |
| Fan Noise |
Medium Brightness: 39 dB
Low Brightness: 29 dB |
| Security |
Cable Lock Slot
Password Protection |
| AC Input Power |
120 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Medium Brightness: 429 W
Low Brightness: 340 W
Standby Mode (Lamp Off): 2.4 W
Standby Mode (Lamp Off): 0.21 W |
| Dimensions (W x H x D) |
14.8 x 4.9 x 11.5" / 37.6 x 12.4 x 29.2 cm Including feet
14.8 x 4.3 x 11.5" / 37.6 x 10.9 x 29.2 cm Excluding feet |
| Weight |
10.4 lb / 4.7 kg |
Packaging Info
| Package Weight |
15.2 lb |
| Box Dimensions (LxWxH) |
20.9 x 15 x 8.2" |
