Display TV LCD Wall Mount Swivel Tilt 60"-100" Flat Screen Panel

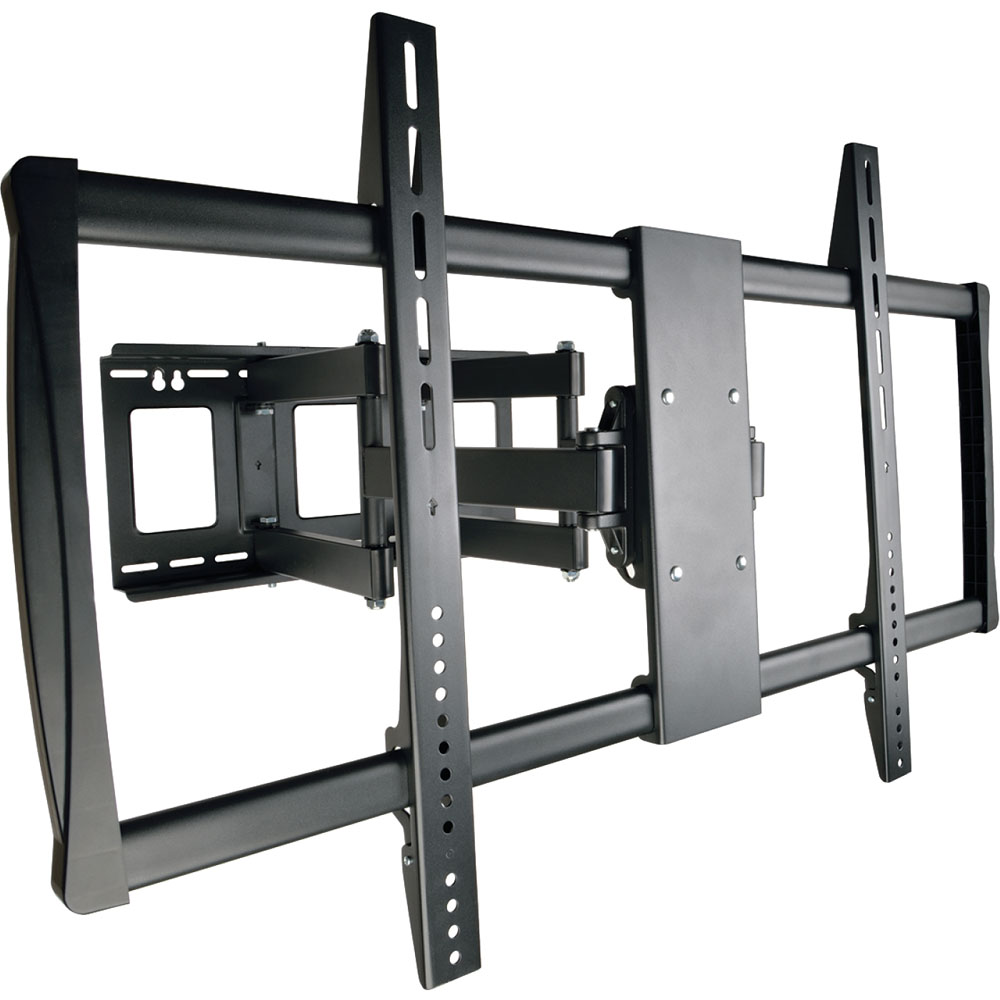

The Eaton DWM60100XX is a full-motion wall mount designed for one flat-panel television or monitor measuring 60 to 100 inches. Its steel construction supports displays weighing up to 275 lb (124.7 kg), while swivel, tilt, level, and extension adjustments provide multiple positioning options. The mount is black, UL Listed, and identified as part of the Eaton Tripp Lite series.

Ideal Use Cases

This model is intended for wall-mounted installations involving a large monitor or HDTV. It fits most flat-panel displays from 60 to 100 inches and accommodates one display at a time. The combination of a 275 lb maximum capacity and numerous listed VESA patterns makes it appropriate when the display falls within the stated size, weight, and mounting-pattern limits. Full-motion adjustment also suits installations where the screen must be repositioned after mounting rather than kept in one fixed orientation.

Why Choose This Model

The DWM60100XX combines large-display compatibility with a substantial specified load capacity. Its durable steel construction supports up to 275 lb, and its adjustment system provides 90-degree swivel, -15-degree to +15-degree tilt, and -3-degree to +3-degree level adjustment. The arm has a specified extension range of 2.76 minimum to 24.61 maximum. These capabilities provide more positioning control than a fixed wall mount while retaining compatibility with an extensive selection of listed VESA patterns.

Installation and Integration

The mount is designed specifically for wall installation. Assembly is required, and the product information states that tools are necessary. Before installation, the display should be checked against the 60- to 100-inch size range, 275 lb weight limit, and the complete list of supported VESA patterns. Listed patterns include 200x200, 300x300, 400x400, 500x500, 600x600, 800x600, 900x600, and numerous rectangular configurations.

The package includes the wall mount, a wall template, two wall brackets, mounting hardware, spacers, washers, concrete anchors, anchor bolts, a hex key, and an owner’s manual. Four cable guides are also supplied for integrating display cables with the installation. The included fasteners cover M4, M5, M6, and M8 screw sizes in the quantities and lengths specified for this model.

Performance Highlights

Full-motion operation is the central performance feature. The screen can swivel through 90 degrees and tilt from -15 degrees to +15 degrees. A separate -3-degree to +3-degree level adjustment allows minor screen alignment after mounting. The arm moves between its stated minimum and maximum extension positions, allowing the installed display to sit closer to the wall or extend outward. The mount’s listed dimensions are 46 inches in length/depth, 23.35 inches in width, and 3.14 inches in height.

What Makes It Different

The DWM60100XX brings together compatibility with 60- to 100-inch flat panels, a 275 lb maximum weight capacity, and three forms of screen adjustment. It is built from steel rather than an unspecified construction material and includes four cable guides among its installation components. The mount is UL Listed, and its stated compliances are REACH and RoHS. Its broad, explicitly documented VESA-pattern list also provides a concrete way to verify compatibility before mounting a monitor or HDTV.

Final Assessment

This Eaton Tripp Lite series mount is a well-defined option for a single large flat-panel display that requires wall installation and full-motion positioning. Its key selection criteria are straightforward: a 60- to 100-inch screen, weight no greater than 275 lb, and a VESA pattern included in the manufacturer’s list. For installations meeting those requirements, the DWM60100XX provides steel construction, extensive supplied hardware, cable guides, and swivel, tilt, level, and arm-extension adjustment in one UL Listed assembly.
