Display TV LCD Wall Mount Tilt 45" to 85" Flat Screen / Panel

Ideal Use Cases

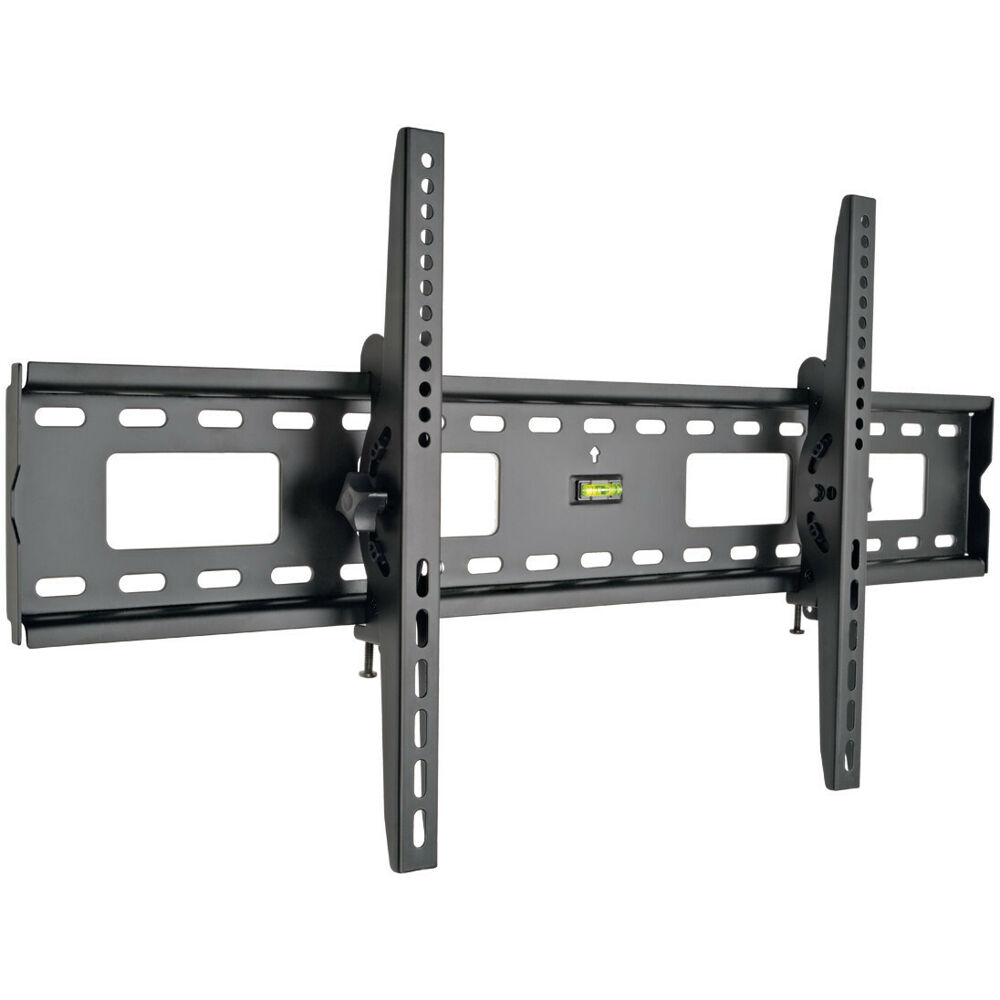

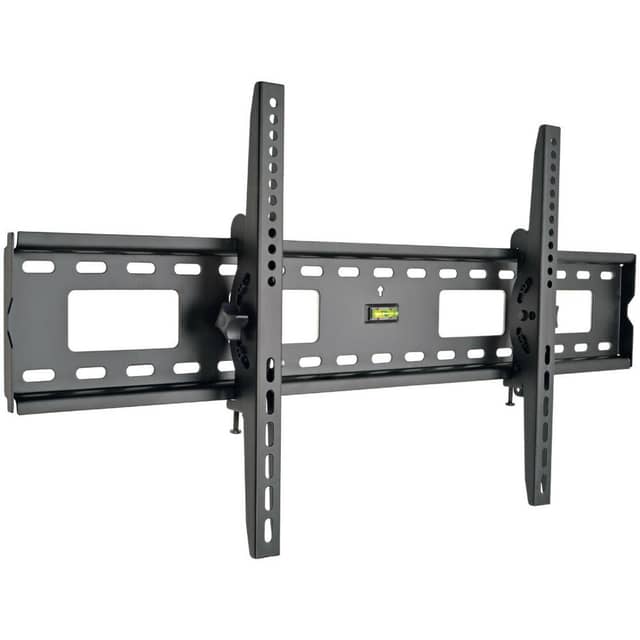

The Eaton DWT4585X is designed for wall-mounted installation of a single monitor or HDTV measuring 45 to 85 inches. Its 200 lb maximum weight capacity makes it suitable for large flat-panel displays that fall within the listed size, weight, and VESA compatibility requirements. The mount positions the display 2.48 inches from the wall, helping it remain out of sight behind the screen for a sleek, professional appearance.

Its adjustable tilt is useful when a display needs to be positioned above or below the preferred viewing line. With motion from -10° to +10°, the screen angle can be adjusted for more comfortable viewing while retaining a close-to-wall installation.

Why Choose This Model

This model combines a high weight capacity, steel construction, and broad VESA pattern support in a straightforward wall-mounting solution. It supports one display weighing up to 200 lb, or 90.7 kg, and is compatible with both monitors and HDTVs. The black finish keeps the mounting structure visually understated behind the installed display.

The DWT4585X supports VESA patterns ranging from 200 x 200 through 800 x 400, including numerous intermediate configurations. This selection helps accommodate many flat-panel mounting layouts without changing the mount itself. Buyers should confirm their display’s dimensions, weight, and VESA pattern before installation.

Installation and Integration

The DWT4585X is intended specifically for wall mounting. Assembly is required, and the product information states that tools are necessary. The package includes mounting hardware for several display configurations: four M5 x 14 screws, four M6 x 14 screws, four M6 x 30 screws, four M8 x 20 screws, four M8 x 30 screws, four washers, six D6 washers, eight small spacers, four big spacers, six anchor bolts, and six concrete anchors. An owner’s manual is also supplied.

Before beginning installation, verify that the display is between 45 and 85 inches, weighs no more than 200 lb, and uses one of the specified VESA patterns. Select the included screws, washers, and spacers that correspond to the display and installation requirements. The mount’s listed product dimensions are 35.2 inches in length or depth, 6.2 inches in width, and 2.7 inches in height, with a product weight of 6.75 lb.

Performance Highlights

The primary adjustment is tilt, providing a range from -10° to +10°. This lets the mounted screen angle upward or downward while the display remains only 2.48 inches from the wall. The mount supports most flat-panel displays from 45 to 85 inches when the display also meets its weight and VESA requirements.

Steel construction supports the mount’s listed 200 lb capacity. Its single-display design keeps the installation focused and uncomplicated, while the close wall distance contributes to a clean profile once the monitor or HDTV is in position.

What Makes It Different

The DWT4585X stands out through its combination of large-display compatibility, 200 lb capacity, and extensive VESA support. Compatible patterns include 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 300, 500 x 400, 600 x 300, 600 x 400, 800 x 300, and 800 x 400.

Unlike a wall mount without viewing-angle adjustment, this model provides controlled tilt in both directions. It also includes an assortment of screws, spacers, washers, anchor bolts, and concrete anchors, giving installers the listed components together with the mount and owner’s manual. The product is identified as an Eaton Tripp Lite series standard wallmount monitor mount and lists RoHS3, RoHS, and REACH compliance.

Final Assessment

The Eaton DWT4585X is a practical choice for mounting one compatible 45- to 85-inch monitor or HDTV close to a wall. Its black steel construction, 200 lb capacity, 2.48-inch wall distance, broad VESA compatibility, and -10° to +10° tilt range address the essential requirements of a large flat-panel installation. For a proper fit, confirm the display’s size, weight, and mounting pattern before assembly.
