Display TV LCD Wall Mount Tilt 60" - 100" Flat Screen / Panel

Ideal Use Cases

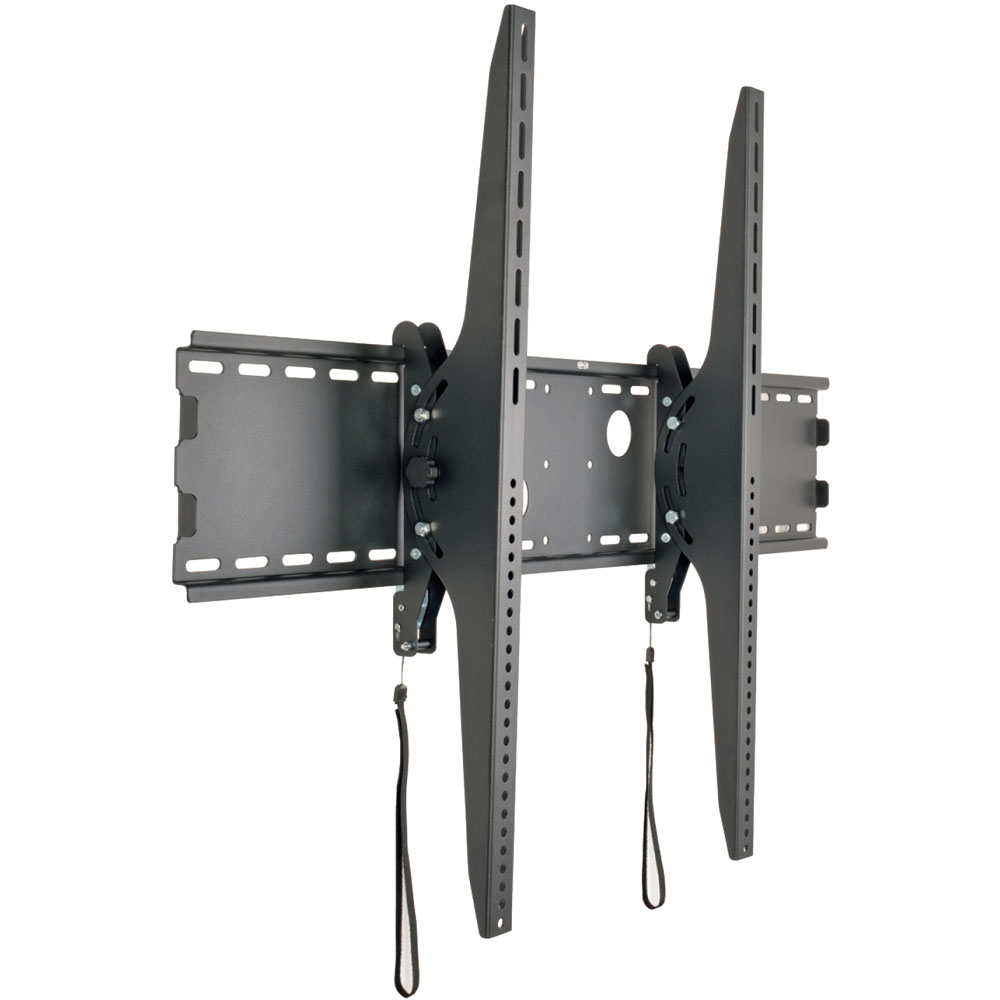

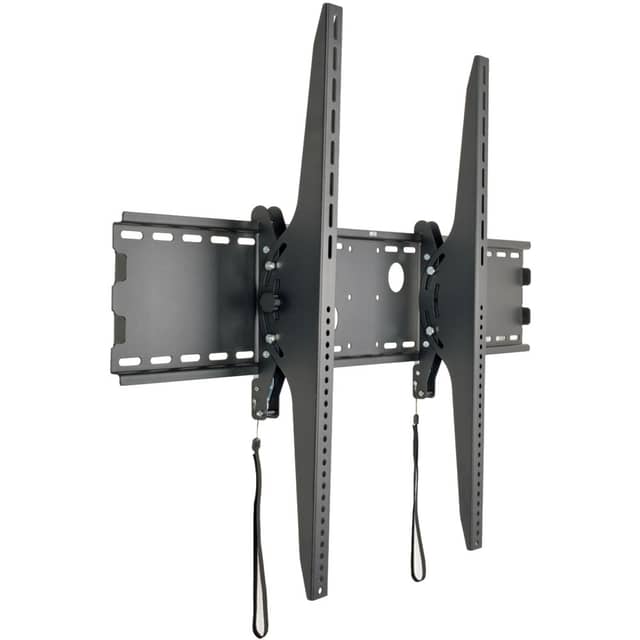

The Eaton Tripp Lite series DWT60100XX is designed for wall-mounting one large flat-panel monitor or HDTV. It fits most displays from 60 to 100 inches and supports a maximum weight of 350 lb (158.8 kg), making it suitable for installations that require substantial display capacity. Its black steel construction and out-of-sight mounting design support a sleek, professional appearance. The tilt mechanism provides positioning flexibility while keeping the display mounted on the wall.

Why Choose This Model

This model combines high weight capacity with an extensive selection of documented VESA mounting patterns. Listed compatibility includes patterns from 100×100 through 1000×800, plus numerous intermediate configurations for large displays. The mount is UL Listed and identified as UL Certified in the supplied product features. It also complies with REACH and RoHS requirements. A 5-year limited worldwide warranty provides defined long-term coverage for the mount.

The DWT60100XX is made from steel and supports a single monitor or HDTV. Its listed 15° to +15° tilt capability allows the display angle to be adjusted for the intended viewing position. Two tilt-adjusting knobs are included with the mounting hardware.

Installation and Integration

The DWT60100XX is intended specifically for wall installation. Assembly is required, and the product information states that tools are necessary. The supplied mounting template can help establish placement before the wall plate and display hardware are installed. Adapter brackets and multiple spacer sizes are included to support compatible display configurations.

The package contains a mounting template, wall plate, two adapter brackets, two tilt-adjusting knobs, four big spacers, eight small spacers, four washers, six D6 washers, six anchor bolts, and six concrete anchors. Display fasteners include four M5 x 14 screws, four M6 x 14 screws, four M6 x 30 screws, four M8 x 20 screws, and four M8 x 30 screws. An owner’s manual is also supplied.

The mount measures 46.6 inches in length/depth, 9.2 inches in width, and 2.7 inches in height. Its product weight is 17.36 lb. Before installation, the display’s weight and exact VESA pattern should be compared with the mount specifications, and the appropriate supplied fasteners, spacers, and wall hardware should be selected for the installation.

Performance Highlights

• Supports most 60- to 100-inch flat-panel displays.
• Maximum weight capacity of 350 lb (158.8 kg).
• Listed 15° to +15° tilt range for display positioning.
• Supports one monitor or HDTV.
• Extensive VESA compatibility, including listed patterns up to 1000×800.
• Black steel construction.
• UL Listed, with REACH and RoHS compliance.

The mount is designed to remain visually unobtrusive behind the installed display. Its tilt function supplies the available motion without changing the wall-mounted format, while the broad VESA list supports many mounting-hole arrangements used by large flat-panel displays.

What Makes It Different

The defining combination is the 350 lb capacity, support for displays as large as 100 inches, and the unusually broad documented VESA list. Patterns include compact options such as 100×100 and 200×100 as well as large formats including 900×800, 1000×700, and 1000×800. This breadth makes precise compatibility checking possible across a wide range of monitor and HDTV mounting layouts.

The installation package is also comprehensive, with multiple screw sizes, two spacer sizes, adapter brackets, washers, anchor bolts, concrete anchors, a mounting template, and an owner’s manual. These supplied components provide several documented hardware options for matching the mount to a compatible display and installation surface.

Final Assessment

The Eaton DWT60100XX is a strong match for a compatible 60- to 100-inch monitor or HDTV that weighs no more than 350 lb and requires wall mounting with tilt adjustment. Its steel construction, UL Listed status, extensive VESA support, included installation components, and 5-year limited worldwide warranty create a well-documented solution for a single large flat-panel display. Confirm the display weight and exact VESA pattern before installation.
