Display TV LCD Wall Mount Fixed 45″ to 85″ Flat Screen / Panel

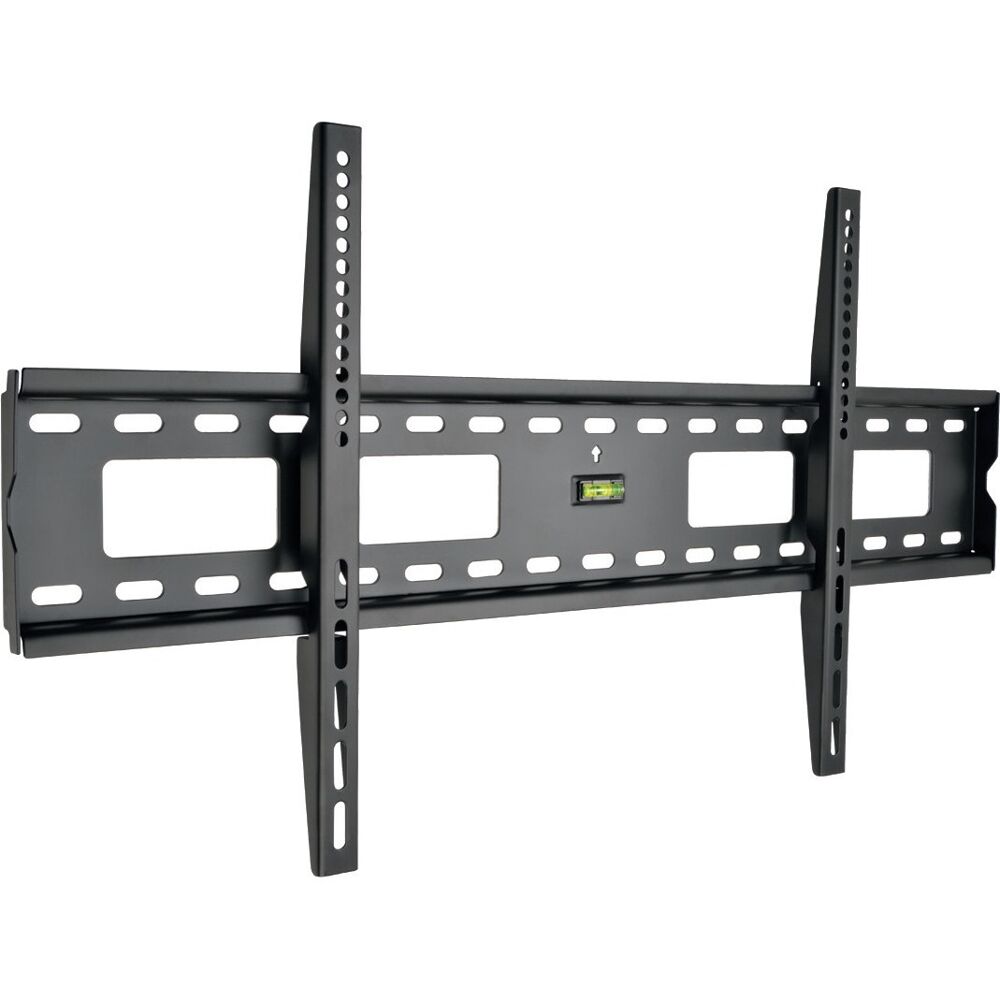

The Eaton Tripp Lite series DWF4585X is a fixed wall mount designed for one flat-panel monitor or HDTV measuring 45 to 85 inches. Its black steel construction supports displays weighing up to 200 lb (90.7 kg), while a broad selection of VESA mounting patterns accommodates many large-screen installations. The fixed design keeps the display positioned against the wall and out of sight for a sleek, professional appearance.

Ideal Use Cases

This model is intended for installations that require a large monitor or HDTV to remain in a fixed viewing position. It is suitable for compatible flat-panel displays from 45 to 85 inches and supports one display at a time. Because it does not incorporate tilt, swivel, or other display movement, the DWF4585X is best matched with spaces where the viewing height and angle can be established during installation.

The mount is especially relevant when a clean wall-mounted presentation is preferred over a display stand. Its adjustable mounting rails can compensate for off-center wall studs, giving installers additional flexibility when aligning the screen with the intended viewing area.

Why Choose This Model

The DWF4585X combines a 200 lb maximum capacity with steel construction and compatibility with numerous VESA patterns. Supported patterns include 200×200, 200×300, 200×400, 300×200, 300×300, 300×400, 400×200, 400×300, 400×400, 500×300, 500×400, 600×300, 600×400, 800×300, and 800×400.

This range makes the mount adaptable to many compatible monitors and HDTVs within its stated display-size range. Its fixed configuration also provides a straightforward choice for installations that do not require ongoing angle adjustments. The black finish helps the mounting hardware remain visually unobtrusive behind the display.

Installation and Integration

Assembly is required, and tools are necessary for installation. The package provides the wall plate, two adapter brackets, six anchor bolts, six concrete anchors, six D6 washers, four additional washers, eight small spacers, and four large spacers. Display fasteners include four M5 x 14 screws, four M6 x 14 screws, four M6 x 30 screws, four M8 x 20 screws, and four M8 x 30 screws. An owner’s manual is also included.

Before installation, confirm that the display’s dimensions, weight, and VESA mounting pattern match the mount’s specifications. The wall location and supplied anchoring hardware should also be evaluated for the intended installation. Adjustable mounting rails help address situations where the available wall studs are not centered behind the preferred display position.

The mount measures 35.2 inches in length or depth, 6.3 inches in width, and 2 inches in height. Its listed product weight is 5.7 lb, making these measurements useful when planning the wall area and installation process.

Performance Highlights

• Supports one compatible monitor or HDTV.
• Fits most flat-panel displays from 45 to 85 inches.
• Provides a maximum weight capacity of 200 lb (90.7 kg).
• Uses a fixed mounting position with no stated degrees of motion.
• Features adjustable rails for off-center wall-stud placement.
• Uses steel construction with a black finish.
• Supports fifteen listed VESA mounting patterns.

The product is listed as compliant with RoHS, REACH, and RoHS3 requirements.

What Makes It Different

The defining feature of the DWF4585X is the combination of high weight capacity, large-display compatibility, and adjustable mounting rails in a fixed wall-mount format. The rails address a common installation constraint by allowing compensation for wall studs that do not align with the desired center point of the display.

Its supplied collection of M5, M6, and M8 screws, two spacer sizes, adapter brackets, washers, anchor bolts, and concrete anchors supports integration with different compatible display and wall configurations. The fixed architecture is purpose-built for installations where a stable screen position and concealed mounting appearance are more important than tilt or swivel adjustment.

Final Assessment

The Eaton DWF4585X is a practical fixed mounting solution for one compatible 45- to 85-inch flat-panel monitor or HDTV. Its steel construction, 200 lb capacity, extensive VESA support, adjustable mounting rails, and included installation hardware make it well specified for large displays that will remain in a predetermined viewing position. Compatibility with the display and mounting surface should be verified before installation.
