1G Networked audio decoder with built in amplifier

The AVPro Edge AC-DANTE-AMP-2CH combines a 1G networked audio decoder with a two-channel local power amplifier. It decodes Dante Audio or AES67 streams and supplies up to 25W RMS per channel into 4-ohm loads or 12.5W RMS per channel into 8-ohm loads. A balanced line-level output, separate Dante and control network connections, onboard controls, and remote API support provide flexible integration within networked audio systems.

Ideal Use Cases

This model is ideal for installations requiring a compact endpoint to drive a local stereo speaker pair. It can also feed downstream audio equipment through its balanced line-level output. This makes it perfect for environments needing rack-free installation, localized amplification, real-time level verification, or remote volume adjustment. Its compact chassis and included wall or furniture mounting ears allow discreet placement near destination speakers or connected audio equipment.

Why Choose This Model

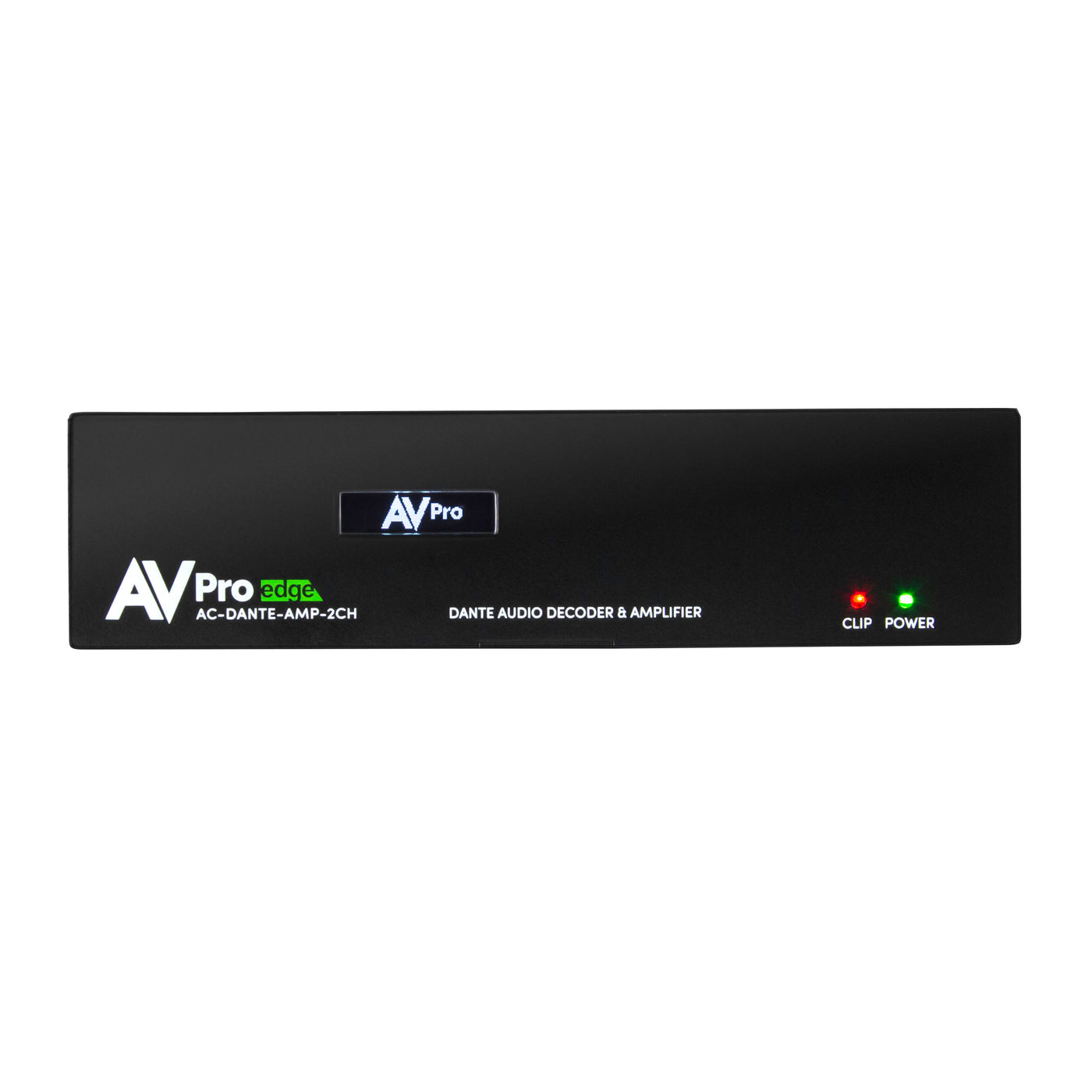

The AC-DANTE-AMP-2CH integrates network decoding, speaker amplification, and balanced line-level output within a single chassis. It supports two Dante flows and handles sampling rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz with 16-, 24-, or 32-bit word lengths. Audio can be encoded in either Dante Audio or AES67 format, allowing it to serve amplified speakers while also providing a balanced analog output for another device. The mini OLED display offers immediate feedback on speaker-level and line-level volume settings, aiding technicians during setup.

Installation and Integration

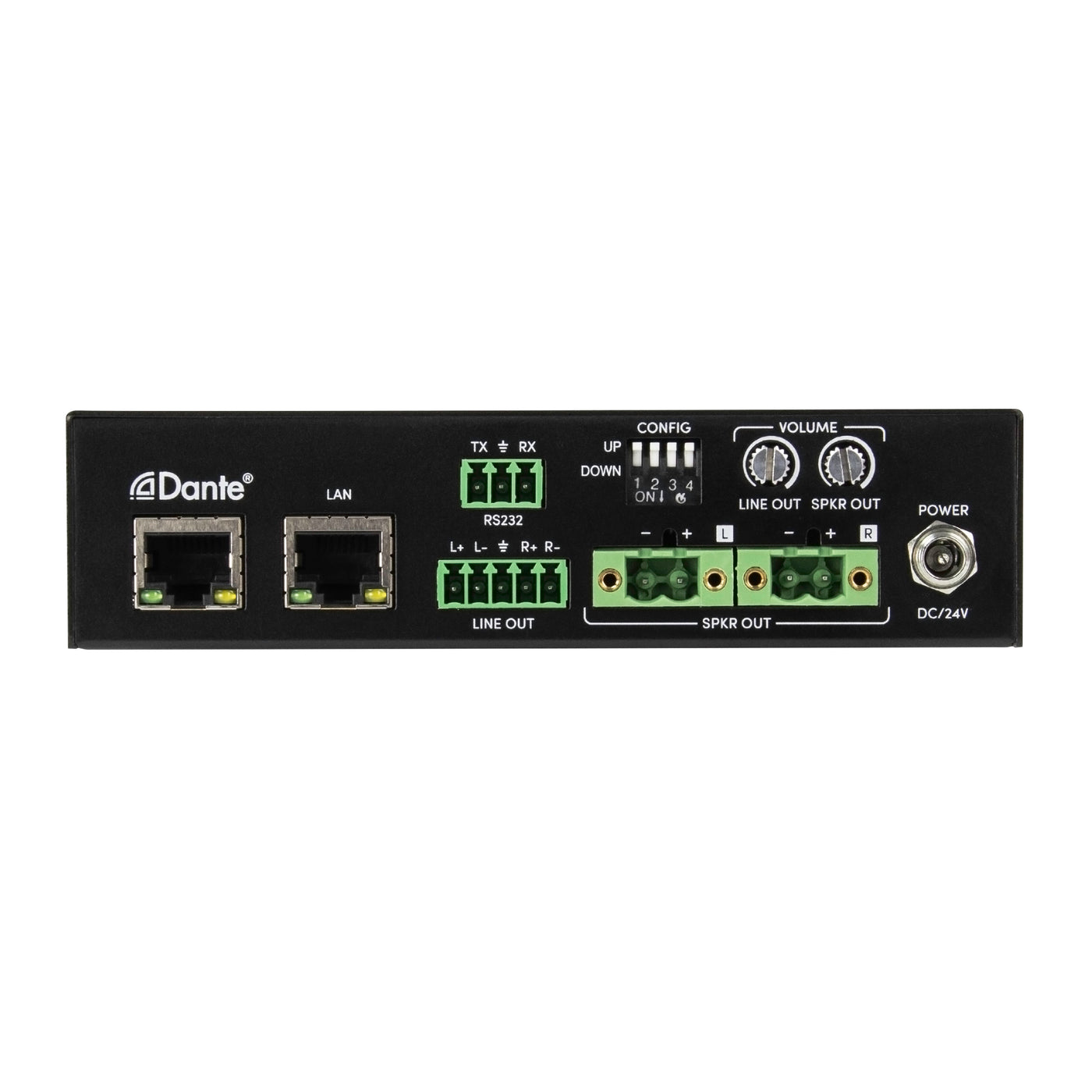

Featuring two Ethernet connections, the unit separates the Dante network interface from the control network interface, operating over standard Ethernet network distances. Screw terminals provide one amplified speaker output and one balanced line-level output, while RS232 is available for device control. Four DIP-switch settings allow configuration for set-and-forget installations or enable remote volume adjustment. Changes made directly on the unit or remotely through the API are reflected in real-time on the OLED display.

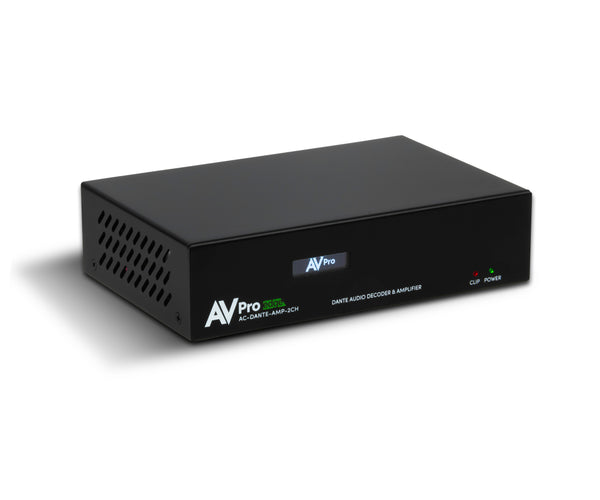

The compact chassis measures 14 x 9 x 3.5 cm (5.51 x 3.54 x 1.38 in) and weighs 444 g (0.98 lb). It includes wall and furniture mounting ears, with power supplied at 24V and 5A. The locking power connector prevents disconnection in installations susceptible to vibration, and the maximum power consumption is 100W.

Performance Highlights

The stereo speaker-level outputs are rated at up to 2 x 25W RMS at 0 dBFS into a 4-ohm load, with 12.5W RMS per channel for an 8-ohm load. The balanced line-level output reaches a maximum of 1 VRMS under its standard setting, or 1.5 VRMS when the 3 dB boost is active. It operates in conditions ranging from 23 to 125°F (-5 to 51°C), with humidity levels of 5% to 90% RH, and no condensation. Storage temperature ranges from 4 to 140°F (-20 to 60°C).

What Makes It Different

The AC-DANTE-AMP-2CH stands out by integrating a Dante Audio/AES67 decoder with two amplified output channels, unlike a decoder requiring separate amplification. It also retains a balanced line-level path, allowing the compact device to address various output needs. The OLED display provides local feedback, while API and RS232 control support system integration. DIP-switch configuration simplifies fixed deployments, and the locking power connection is ideal for installations exposed to vibration. The unit carries FCC and CE regulatory listings and is backed by AVPro Edge’s 10-year warranty.

Final Assessment

The AC-DANTE-AMP-2CH is a focused network-audio endpoint for systems demanding Dante or AES67 decoding, two-channel speaker power, and balanced line output in a small enclosure. Its supported sampling rates and word lengths, dual Ethernet connections, OLED level feedback, remote-control options, mounting hardware, and locking power connector offer a comprehensive set of installation features. The packaged unit measures 31 x 18 x 5.5 cm (12.2 x 7.08 x 2.17 in) and weighs 1.174 kg (2.59 lb).
