24 port 2 channel audio matrix with dual AEX inputs and outputs

{
"detailed_description": "

Ideal Use Cases

The AVPro Edge AC-MAX-24 is perfectly suited for distributed audio systems requiring flexibility and extensive connectivity in both residential and commercial settings. Whether you need to route numerous audio sources to a variety of outputs or blend analog and digital signals, this model provides the versatility you need. With its built-in AEX receivers, the matrix can transmit signals up to 130 meters, making it ideal for installations where source devices are distant from the main equipment rack.

Why Choose This Model

Choosing the AC-MAX-24 means opting for unparalleled control and customization. This model allows for independent channel volume, balance, tone adjustment, and equalization across each output. Its four 12V trigger outputs are configurable for seamless amplifier integration, enhancing operational flexibility. Furthermore, the IP/LAN and RS-232 control interfaces ensure compatibility with leading automation systems, giving integrators the freedom to choose their preferred amplification solutions.

Installation and Integration

The AC-MAX-24 is designed for easy installation, occupying just 2U of rack space. Its compact dimensions (88 x 440 x 234.95 mm) and manageable weight (8.7 lbs) make it a practical choice for various setups. It operates on 100-240 VAC power with a maximum consumption of 50 watts. The matrix supports in-system programming via a USB Type-C connection, and its flexible input/output architecture allows for seamless integration with local and remote audio sources.

Performance Highlights

With a frequency response from 20 Hz to 20 kHz and support for two-channel PCM digital audio, the AC-MAX-24 delivers exceptional sound quality. It supports sample rates from 32 kHz up to 192 kHz, ensuring high-fidelity audio reproduction. The matrix's low latency (≤60 milliseconds) and comprehensive audio adjustments provide precise control over sound output, making it a reliable choice for sophisticated audio setups.

What Makes It Different

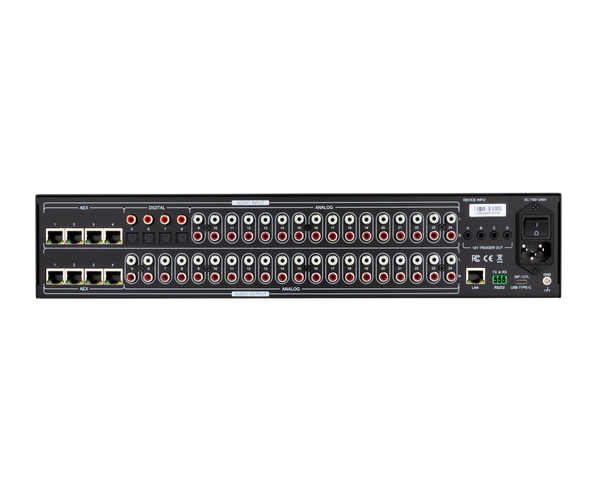

The AC-MAX-24 stands out with its unique combination of high-density local routing and decentralized AEX transport capabilities. It offers a blend of 16 analog RCA input pairs and digital coaxial/TOSLINK inputs, alongside four AEX inputs for extended reach. This configuration supports both central and remote system components, providing a flexible solution that accommodates diverse audio environments. Its robust API and AVPro Edge-developed GUI facilitate detailed configuration, making it an integrator-friendly choice.

Final Assessment

For projects demanding a versatile audio matrix with robust connectivity options, the AC-MAX-24 is an excellent choice. Its ability to handle up to 24 inputs and outputs, coupled with advanced audio management features, makes it ideal for both residential and commercial applications. Keep in mind the product warning regarding lead exposure, as noted by the State of California. This matrix offers a comprehensive audio solution that is both powerful and adaptable.

",
"short_description": "The AVPro Edge AC-MAX-24 is a versatile 24x24 audio matrix with 16 RCA input pairs, digital and AEX inputs, and numerous output options. It supports PCM up to 192 kHz and offers extensive control via IP/LAN and RS-232, making it ideal for complex audio systems in both residential and commercial environments."
}
