Welded Rack 25.5 inch Deep, 44RU

The AtlasIED 244-25 is an economical, stand-alone floor rack built for housing rack-mounted equipment in a welded cabinet. It provides 44RU of rack space while keeping cabinet depth to 25 1/2 inches. Construction is 16-gauge CRS, and the supplied cabinet configuration includes a base, top panel, side panels, adjustable mounting rails, and a removable locking rear door. The result is a clearly specified enclosure for installations that need substantial rack capacity, defined physical dimensions, and included rear access control.

Ideal Use Cases

This model is suited to installations that call for a full-height, floor-standing equipment cabinet rather than a small wall or desktop rack. Its 44RU capacity supports projects with a sizeable collection of rack-mounted components, while the 25 1/2-inch overall depth and 24-inch usable depth make it appropriate when equipment depth is known and space must be planned precisely. The stand-alone form also fits projects where a self-contained rack is the required cabinet format. Before selection, compare every component’s depth and the planned cable clearance with the stated 24-inch usable depth.

Why Choose This Model

The 244-25 combines the cabinet pieces needed for the basic enclosure in one specified model: base, top, side panels, rails, and rear door. Its mounting rails are adjustable, allowing the rail position to be considered during integration rather than treated as fixed. The rear door is both removable and locking, providing a defined access point that can be secured when installed. A 16-gauge CRS cabinet supplies the stated structural construction, while the 60-month warranty period from the date of purchase gives buyers a clear support term. These attributes make the model straightforward to compare against rack-space, depth, access, and warranty requirements.

Installation and Integration

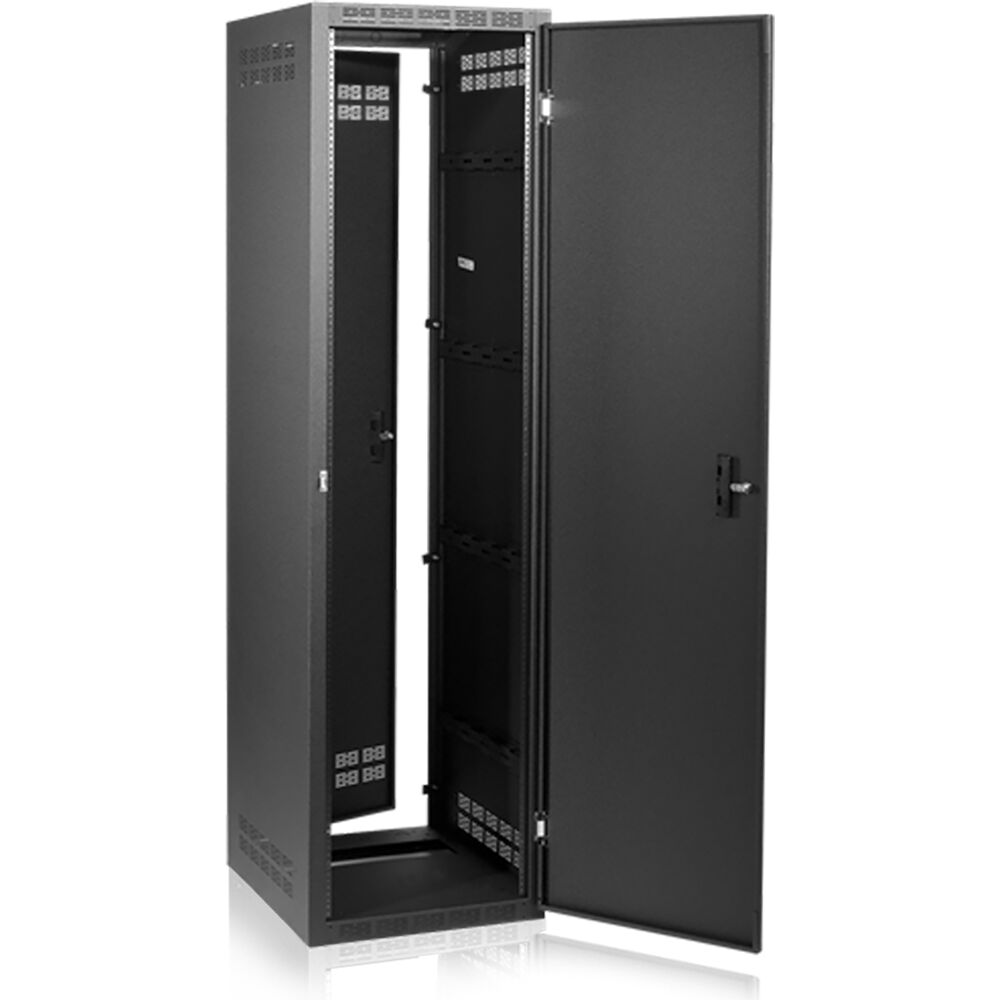

Plan the installation from the published cabinet dimensions: 81 1/4 inches high, 22 5/16 inches wide, and 25 1/2 inches deep. The corresponding metric figures are 206.375 cm high, 56.67 cm wide, and 64.77 cm deep. Usable depth is 24 inches, or 60.96 cm, so equipment fit should be checked against that internal working dimension rather than overall cabinet depth alone. The adjustable mounting rails should be positioned for the equipment being installed, and the 44RU total should be allocated before loading the cabinet. Because the rear door is removable, its installation state can be considered as part of the setup and access plan. The product imagery identifies the rack as shown with an optional front door; a front door is not listed among the supplied cabinet components.

Performance Highlights

The key capacity figure is 44 rack units. Overall depth is 25 1/2 inches, with 24 inches identified as usable, leaving a precise distinction between the external cabinet measurement and equipment space. The cabinet’s height and width are also provided in both imperial and metric units for planning. The recorded safety-listing value is 1678, and the warranty is stated as 60 months from the purchase date. Together, these figures provide the core information needed to evaluate physical fit, rack capacity, construction, and coverage without relying on unspecified performance claims.

What Makes It Different

What separates this model within the supplied data is its particular balance of 44RU capacity and a 25.5-inch-deep welded, stand-alone format. It is not presented as an empty frame: the source explicitly includes the base, top panel, side panels, mounting rails, and removable locking rear door. Adjustable rails add installation flexibility within the stated cabinet dimensions, while the locking rear door is already part of the described configuration. The clear 24-inch usable-depth figure also makes equipment-fit evaluation more precise than using the external depth by itself. Optional front-door imagery should not be interpreted as confirmation that a front door is included.

Final Assessment

The AtlasIED 244-25 is a strong match when the requirement is specific: 44RU of rack space, 24 inches of usable depth, a welded 16-gauge CRS cabinet, adjustable rails, and a removable locking rear door. Its published dimensions make space planning direct, and the included enclosure components reduce ambiguity about the base cabinet configuration. Confirm equipment depth against the usable-depth specification and account for any optional front door separately. For projects aligned with these measurements and features, the 244-25 offers a well-defined stand-alone rack backed by a 60-month warranty from the date of purchase.
