Welded Rack 30 inch Deep, 44RU

Ideal Use Cases

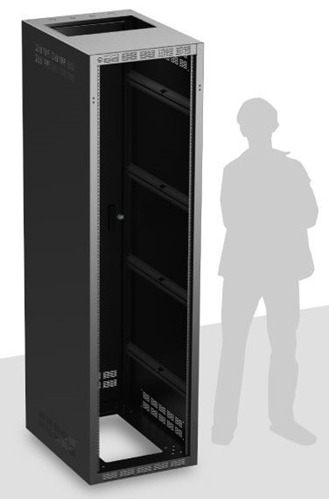

The AtlasIED 244-30 is an economical welded equipment cabinet designed for installations requiring 44 rack units within a 30-inch-deep enclosure. Its 81 1/4-inch height and 22 5/16-inch width provide a clearly defined equipment footprint, while the included mounting rails support the organization of compatible rack-mounted components. This model is suited to projects where a complete cabinet structure is preferred, with a base, top panel, side panels, mounting rails, and rear closure supplied as part of the cabinet.

Why Choose This Model

The 244-30 combines 44RU of rack space with welded construction and a 30-inch cabinet depth. The cabinet is constructed from 16-gauge CRS, giving buyers a specific material and gauge to evaluate when planning an installation. Adjustable mounting rails provide flexibility during equipment positioning, while the removable locking rear door supports controlled rear access. A 60-month warranty from the date of purchase establishes a defined coverage period for the cabinet.

This configuration is especially relevant when both capacity and enclosure dimensions must be known before equipment layout begins. The published imperial and metric measurements make it easier to compare the cabinet with the available installation area and the dimensional requirements of planned rack-mounted equipment.

Installation and Integration

The cabinet measures 81 1/4 inches high, 22 5/16 inches wide, and 30 inches deep. Metric dimensions are 206.375 cm high, 56.67 cm wide, and 76.2 cm deep. These measurements should be considered when planning placement, access, and surrounding clearance. The 44RU capacity defines the available vertical mounting space, while the adjustable mounting rails allow their position to be set as required for the installation.

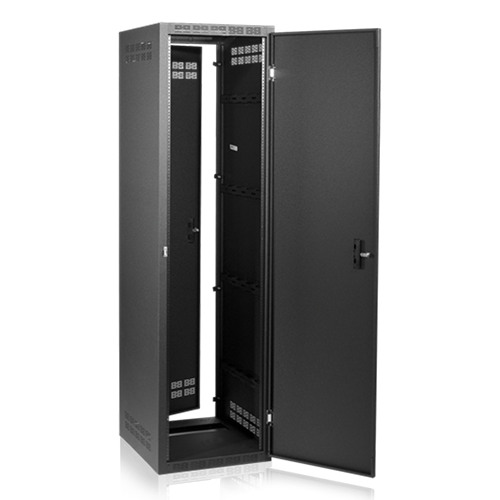

The removable locking rear door provides a defined rear access point and can be removed when the installation process requires unobstructed access. The supplied description identifies the base, top panel, side panels, mounting rails, and rear door as included cabinet components. Product imagery identifies the front door shown with the rack as optional, so a front door should not be assumed to be included with this model.

Performance Highlights

For an equipment rack, performance centers on usable capacity, construction, access, and physical dimensions. The 244-30 supplies 44 rack units in a welded cabinet constructed of 16-gauge CRS. Its 30-inch depth accommodates installations planned around that cabinet dimension, and the adjustable mounting rails add positioning flexibility within the enclosure. Side panels, a top panel, and a base complete the cabinet structure, while the locking rear door adds a removable rear closure.

The technical data also records a safety listing value of 1678. No weight, equipment load rating, ventilation specification, power requirement, or operating temperature is provided in the source data, so those characteristics should not be inferred from the cabinet dimensions or construction gauge.

What Makes It Different

The defining combination is straightforward: 44RU capacity, 30-inch depth, welded 16-gauge CRS construction, adjustable mounting rails, and an included removable locking rear door. Rather than leaving the cabinet configuration unclear, the source data identifies the principal structural components supplied with the rack. It also provides precise dimensions in both imperial and metric units, helping buyers verify the physical envelope before installation.

The model designation and SKU are both 244-30, making the required configuration easy to identify. The published 60-month warranty from the date of purchase further distinguishes the product information by providing a specific warranty duration instead of an unspecified coverage statement.

Final Assessment

The AtlasIED 244-30 is a practical choice for a project that specifically calls for a welded 44RU equipment cabinet with a 30-inch depth. Its 16-gauge CRS construction, adjustable mounting rails, supplied cabinet panels, and removable locking rear door establish a well-defined configuration. The exact height, width, and depth allow the installation footprint to be evaluated in advance. Buyers who require a front door should note that the door shown in the product imagery is identified as optional. For installations matching its dimensions and rack capacity, the 244-30 provides a clearly specified cabinet backed by a 60-month warranty.
