Zone Page Powered Relay Pack 6 Relays DPDT 24V 500MA

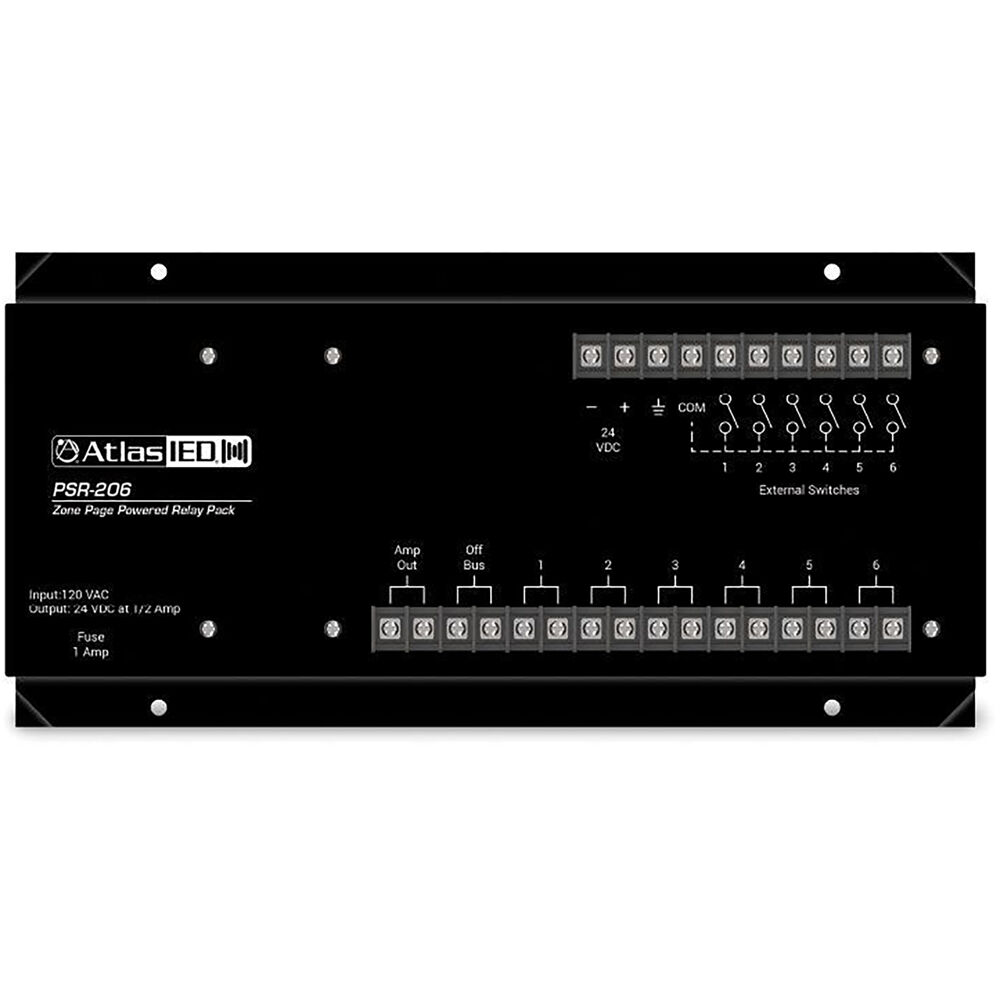

The AtlasIED PSR-206 combines six DPDT relays with a 24 VDC, 500 mA power supply in a compact, ready-to-mount zone page relay pack. It operates from 117 VAC at 60 Hz, consumes 12 watts, and provides relay contacts rated at 3 amps. The unit measures 13 1/4 inches wide, 4 3/8 inches high, and 2 1/4 inches deep, supporting installation where available mounting space must be considered carefully.

Ideal Use Cases

The PSR-206 is intended for zone page installations requiring multiple relays and low-voltage DC power within the same unit. It is suited to system designs specifying six DPDT relays, a 3-amp contact rating, and a 24 VDC supply rated at 500 mA. The product is specifically described for seamless integration with AtlasIED systems, making it a direct option when the required electrical characteristics match an AtlasIED installation.

Its combination of relay capacity and DC output also makes product selection more straightforward when both functions are required. The published ratings allow system planners to confirm relay count, contact capacity, supply output, input requirements, and physical size before specifying the unit.

Why Choose This Model

The defining feature of the PSR-206 is its collection of six DPDT relays. A DPDT configuration provides double-pole, double-throw switching, while the six-relay count gives the pack multiple switching resources in one compact design. Each relay is supported by the published 3-amp contact rating, providing a concrete limit for evaluating connected circuits.

The integrated power supply delivers 24 VDC at 0.5 amp, equivalent to 500 mA. This output specification is distinct from the 3-amp relay contact rating: the former identifies the available DC supply capacity, while the latter defines the relay contact rating. Keeping those values separate makes it easier to determine whether the PSR-206 matches the requirements of a planned system.

Installation and Integration

The PSR-206 has a compact, ready-to-mount construction. Its physical dimensions are 13 1/4 inches wide by 4 3/8 inches high by 2 1/4 inches deep. These measurements provide the information needed to plan mounting clearance and wiring access. The listed shipping weight is 5.00 pounds, or 2.27 kilograms; this figure represents packaged shipping weight rather than a stated net product weight.

Input power is specified as 117 VAC at 60 Hz, with power consumption of 12 watts. Installation planning should therefore account for the stated AC input and line frequency. Connected circuits should remain within the 3-amp contact rating, while equipment drawing from the DC supply should remain within its 24 VDC, 500 mA output specification. The ready-to-mount design is intended to support integration without requiring separate selection of a relay pack and the included power-supply function.

Performance Highlights

Six relays provide the core switching capacity of the PSR-206, and the DPDT configuration defines the available contact arrangement. The 3-amp contact rating gives installers a clear electrical value for load planning. Alongside the relay section, the 24 VDC power supply delivers up to 0.5 amp for compatible system requirements.

The unit draws 12 watts from a 117 VAC, 60 Hz input. These published values establish the full path from incoming AC power to the available low-voltage DC output and relay contact capacity. Rather than relying on unspecified performance language, the PSR-206 can be evaluated through its stated relay count, contact rating, supply output, power consumption, and dimensions.

What Makes It Different

The PSR-206 places six DPDT relays and a 500 mA DC power supply into one ready-to-mount zone page product. That combined configuration is its primary distinction within the supplied specifications. The shallow 2 1/4-inch depth and clearly documented width and height provide practical mounting information, while the stated input, output, and contact ratings support accurate system matching.

AtlasIED also provides a warranty period of 12 months from the date of purchase. This defined coverage period complements the product’s documented electrical and physical specifications.

Final Assessment

The AtlasIED PSR-206 is a focused choice for zone page applications requiring six DPDT relays, 3-amp contacts, and a 24 VDC, 500 mA supply. Its 117 VAC input, 12-watt consumption, compact dimensions, and ready-to-mount design are clearly specified for installation planning. For an AtlasIED system matching these ratings, the PSR-206 consolidates the required relay and power-supply functions in a single unit.
