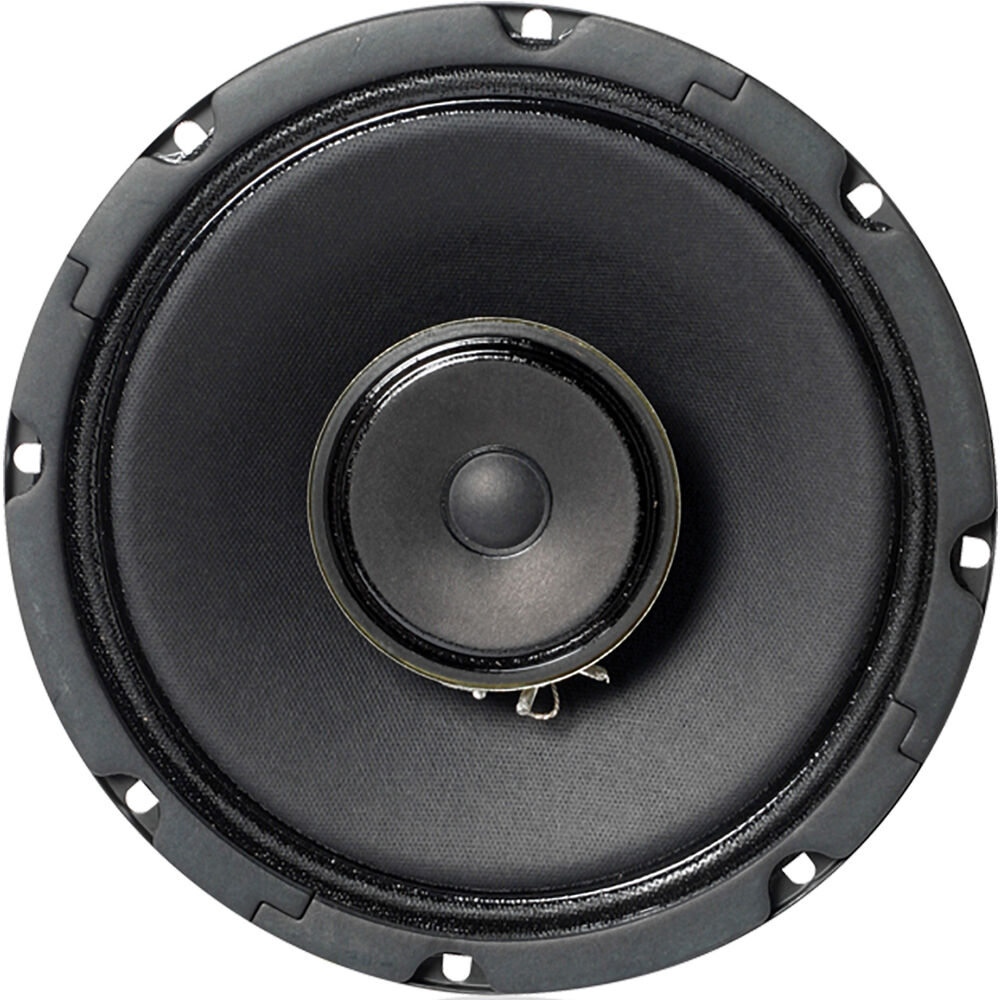

8″ Coaxial Loudspeaker with 70.7V-16W Transformer

The AtlasIED C803AT167 is a versatile 8-inch coaxial loudspeaker paired with a robust 16-watt 70.7V transformer. Designed to seamlessly integrate into various environments, this speaker is ideal for both paging and background music applications, providing a comprehensive audio solution.

Ideal Use Cases

The C803AT167 excels in settings requiring clear, consistent sound coverage, such as commercial spaces, offices, and educational institutions. Its 120-degree dispersion ensures wide sound coverage, making it perfect for large areas where uniform audio distribution is crucial. The ability to select from 4-, 8-, and 16-watt power taps offers flexibility in managing audio output to suit specific room acoustics and audience sizes.

Why Choose This Model

This model stands out with its balanced combination of performance and adaptability. The 40Hz–15kHz frequency response ensures rich audio quality, while the coaxial design enhances sound clarity. Rated at 98dB peak and 95dB average sensitivity, it delivers reliable sound performance suitable for diverse audio needs. Its treated paper construction enhances durability, ensuring long-lasting service.

Installation and Integration

Designed for in-ceiling mounting, the C803AT167 fits seamlessly into standard installation frameworks. Measuring 8 inches in diameter and 5 1/8 inches in depth, it is compact yet powerful. The speaker is compatible with a wide array of enclosures and baffles, offering installation flexibility. Its lightweight construction, at 4.75 lbs, simplifies handling and setup.

Performance Highlights

• Frequency Response: 40Hz to 15kHz
• Sensitivity: 98dB peak, 95dB average
• Dispersion: 120 degrees
• Power Taps: 4, 8, and 16 watts

These specifications underscore its capability to deliver consistent, high-quality sound across various audio applications. The 120-degree dispersion ensures broad coverage, ideal for expansive environments.

What Makes It Different

The C803AT167 distinguishes itself with its flexibility and comprehensive feature set at an affordable price point. The inclusion of multiple power taps allows for tailored audio output, catering to specific installation needs. Safety Listed 1480 compliance and a 60-month warranty underscore its reliability and commitment to quality.

Final Assessment

The AtlasIED C803AT167 is a cost-effective, high-performance in-ceiling loudspeaker solution suitable for a range of audio applications. Its robust design, combined with flexible installation options and dependable performance, makes it a valuable addition to any audio system. With clearly documented specifications and a strong warranty, it offers peace of mind and enduring value.
