8″ In-Wall PoE+ IP Loudspeaker Endpoint with Microphone, LCD Display,

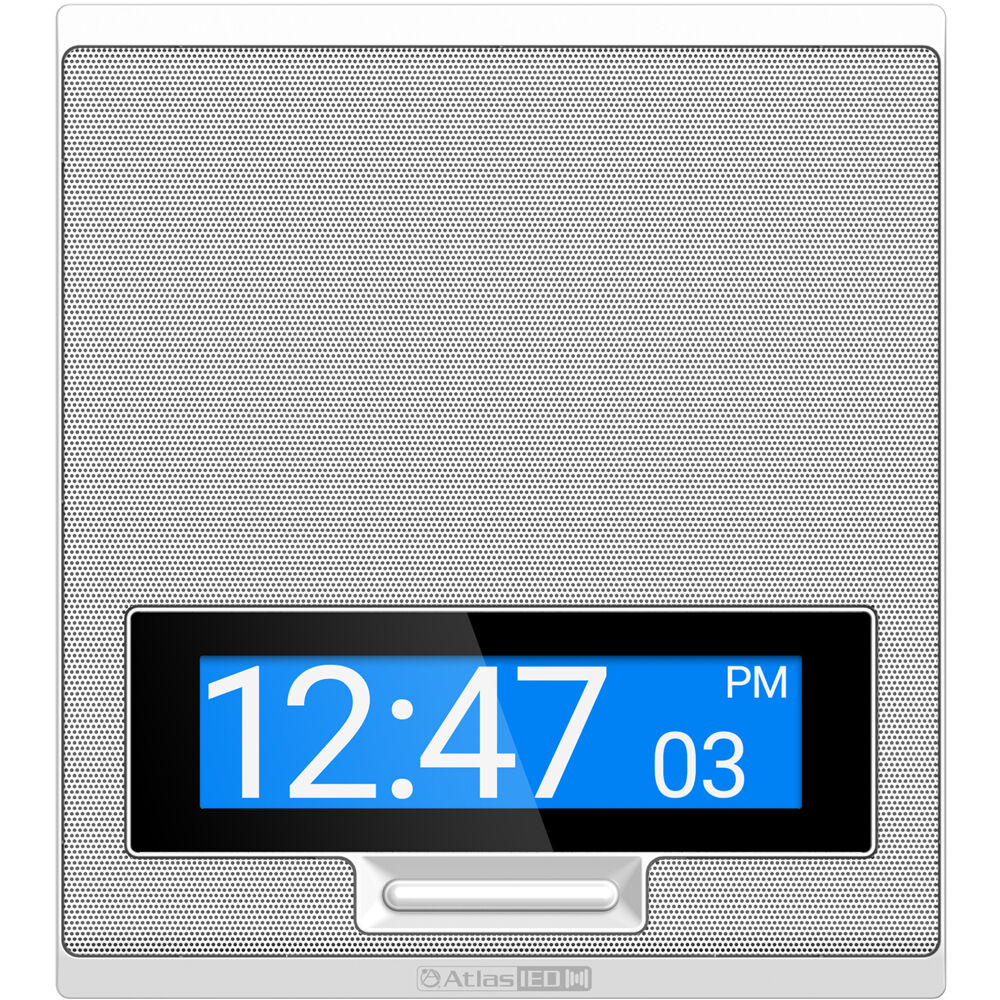

The AtlasIED IP-SDMF is an 8-inch in-wall PoE+ IP loudspeaker endpoint that combines audio reproduction, visual indication, and microphone capability. Its coaxial loudspeaker pairs an 8-inch LF driver with a 1-inch HF driver, while the integrated LCD display and LED flashers provide additional communication channels. Designed for critical alerts and public address, this model is particularly suited to high ambient noise areas and large spaces.

Ideal Use Cases

The IP-SDMF is intended for installations that need network-connected public-address audio together with visible alerting. Its combination of an LCD display, LED flashers, and microphone makes it appropriate for critical-alert applications where messages may need more than an audible component. The specified suitability for high ambient noise areas also makes the unit relevant where surrounding sound could compete with announcements.

Large spaces can benefit from its 105-degree dispersion, measured within the 2kHz octave band at the -6dB points. This coverage specification, paired with 98dB SPL average sensitivity, gives system designers concrete acoustic data for evaluating placement within a broader IP-based communication installation.

Why Choose This Model

This model consolidates an IP loudspeaker, LCD display, LED flashers, and microphone into a single wall-mounted endpoint. The coaxial driver arrangement provides dedicated 8-inch low-frequency and 1-inch high-frequency components, with a published frequency response of 86Hz to 15.5kHz. A 15-watt integrated amplifier supplies total power, and the primary speaker output is specified for 8 ohms.

Power capability is rated at 25 watts maximum under 802.3AT. The combination of PoE+, an RJ-45 connector, and HTTP GUI access for static configuration gives integrators clearly defined network and setup requirements without relying on undocumented connectivity options.

Installation and Integration

The IP-SDMF uses an RJ-45 connector and supports static configuration through an HTTP GUI. These features allow the endpoint to be incorporated into an IP-based alerting or public-address deployment using the configuration method stated by the manufacturer. No wireless connection is specified in the available product data.

The unit measures 14.37 inches high by 12.87 inches wide by 3.42 inches deep, equivalent to 365 by 327 by 87 millimeters. Its listed shipping weight is 6.37 pounds, or 2.89 kilograms. The supplied dimensional information can be used to plan the wall opening, mounting location, and available installation depth.

A powder-coated steel grille covers the loudspeaker assembly. The product is safety listed to 60950-1, and the stated warranty period is 60 months from the date of purchase. Mounting enclosures, included accessories, and package contents are not specified in the supplied data.

Performance Highlights

The 8-inch LF and 1-inch HF coaxial configuration provides a published operating range of 86Hz to 15.5kHz. Average sensitivity is rated at 98dB SPL, while dispersion is specified at 105 degrees in the 2kHz octave band using -6dB points. Together, these figures provide the principal performance references needed when assessing the endpoint for an audio system design.

The integrated amplifier is rated at 15 watts total power, and the overall power rating is listed as 25 watts maximum with 802.3AT. These separate specifications identify both the available integrated amplification and the unit’s published maximum PoE+ power rating.

What Makes It Different

The defining feature of the IP-SDMF is its combination of audible and visible communication elements. Instead of functioning only as a conventional loudspeaker, it incorporates an LCD display and LED flashers alongside the coaxial speaker and microphone. This configuration directly addresses critical-alert and public-address applications where visible notification can complement an announcement.

Its HTTP GUI for static configuration further distinguishes it as an IP endpoint rather than a passive loudspeaker. The RJ-45 connection, PoE+ power specification, integrated amplifier, and defined 8-ohm primary speaker output give integrators a focused set of connection and amplification details for system planning.

Final Assessment

The AtlasIED IP-SDMF is a purpose-built option for networked public address and critical alerts in large or high-noise environments. Its 8-inch coaxial loudspeaker, 98dB average sensitivity, 105-degree dispersion, LCD display, LED flashers, and microphone bring several communication functions together in one in-wall endpoint. For installations requiring an RJ-45-connected PoE+ speaker with visible alert components and HTTP-based static configuration, its published specifications provide a well-defined foundation for evaluation.
