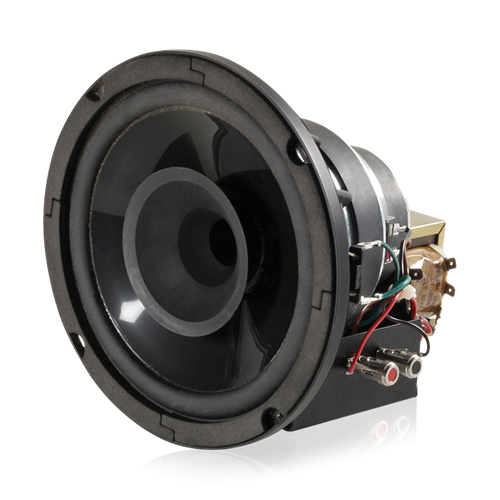

8" In-Ceiling Coaxial Compression Driver with 60-Watt 70V/100V Transform

Ideal Use Cases

The AtlasIED 8CXT60 excels in environments where high ceilings and ambient noise are prevalent. Its design specifically addresses the needs of large spaces, such as auditoriums, retail centers, and transportation hubs, where clarity and coverage are critical. The in-ceiling installation ensures unobtrusive integration while maintaining optimal audio performance.

Why Choose This Model

Choosing the 8CXT60 means opting for a speaker that combines efficiency and power in a compact form. This model stands out with its broad frequency response range of 33Hz to 21kHz and a sensitivity of 92dB at 1W/1m, ensuring clear and precise sound reproduction. The inclusion of a 60-watt 70V/100V transformer allows for flexible integration into existing systems, offering multiple power taps to suit various installation requirements.

Installation and Integration

Designed for seamless in-ceiling installation, the 8CXT60 features an 8-inch diameter that fits standard ceiling mounts. It supports both 70V and 100V operation, catering to diverse system configurations. When using the Q428-SA enclosure, it is necessary to relocate the transformer from the rear to the speaker's side. This ensures a proper fit and requires self-tapping screws, available separately, to secure the transformer.

Performance Highlights

• Frequency response: 33Hz–21kHz
• Sensitivity: 92dB at 1W/1m
• Power taps: 7.5, 15, 30, and 60
• Speaker configuration: 2-way coaxial compression driver
• Diameter: 8 inches (20.32 cm)
• Transformer: 60-watt 70V/100V

These features ensure the 8CXT60 delivers exceptional audio quality and versatility, making it an ideal choice for challenging acoustic environments.

What Makes It Different

The 8CXT60 distinguishes itself with its unique combination of an 8-inch coaxial compression driver and a high-capacity 60-watt transformer. Its specialized design caters specifically to high-ceiling and noisy environments, setting it apart from generic low-ceiling models. The model's detailed specifications, including multiple power taps and a wide frequency response, provide a robust foundation for precise audio system planning.

Final Assessment

The AtlasIED 8CXT60 is a superior choice for professionals seeking a reliable in-ceiling audio solution for challenging environments. Its 2-way design, extensive frequency range, and high sensitivity ensure optimal sound quality, supported by a solid 60-month warranty. For installations involving the Q428-SA enclosure, ensure proper preparation for transformer relocation and acquire the necessary self-tapping screws separately.
