SelectView FM Receiver

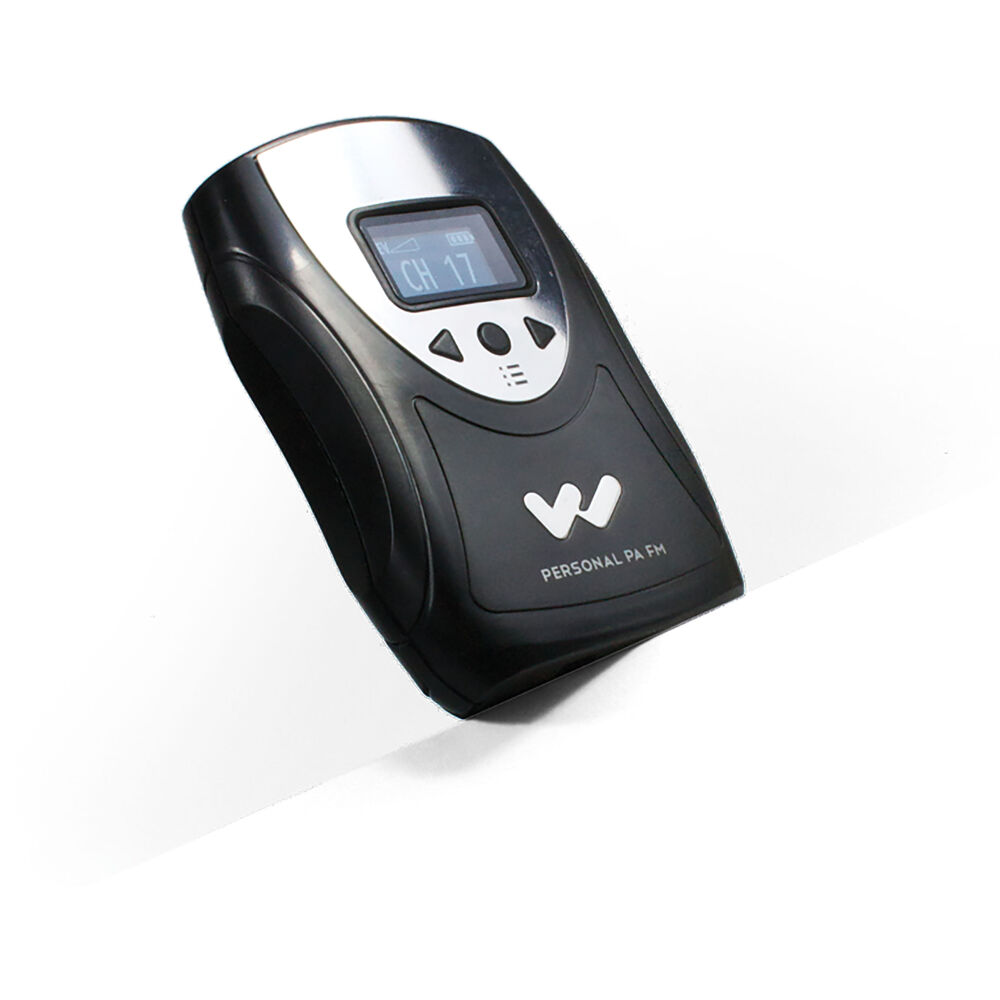

The SelectView FM Receiver is a portable Williams AV multi-channel receiver built around direct status visibility and menu-based tuning. Its 1-inch OLED screen provides a quick view of receiver status and on-screen selection across 17 wideband channels. A black ABS plastic case, aluminum faceplate, and black/silver finish house the receiver in a 4.1 × 2.85 × 1.38-inch format. Weight is 2.6 ounces without batteries or 4.6 ounces with batteries.

Ideal Use Cases

This model is suited to multi-channel FM listening arrangements that operate on its specified frequencies. The 17 available channels cover listed frequencies from 72.1 through 75.9 MHz and are accessed through the receiver menu. That channel capacity makes the receiver appropriate when listeners need to select among multiple available FM signals while viewing the current receiver status on-screen. Its battery-powered design also supports situations where a compact receiver must be carried or individually issued rather than connected to a fixed power source.

Why Choose This Model

The defining combination is visible channel control, flexible AA battery operation, and clearly specified audio performance. The OLED display replaces guesswork with on-screen channel selection, while the green backlit power button communicates battery condition: it glows steadily when battery strength is good and flashes when the battery is low. The receiver accepts either two AA alkaline batteries or two AA rechargeable NiMH batteries. Specified alkaline batteries provide approximately 50 hours of operation, while 1500mAh NiMH batteries provide approximately 32 hours. Nominal current consumption is 52mA.

Installation and Integration

Integration begins by installing two compatible AA batteries and connecting stereo or mono earphones or headphones to the 3.5 mm stereo jack. The receiver delivers mono output through that connector, with a maximum audio output of 35 mW at 16 ohms. The connected earphone or headphone cord also serves as the integral receiving antenna, making the listening connection part of the reception system. Channels are selected through the menu and displayed on the OLED screen. Batteries and earphones are not included, so both must be supplied separately before use.

Performance Highlights

The receiver provides a frequency response of 200 Hz to 15 kHz at ±3 dB and a minimum signal-to-noise ratio of 65 dB at 1.0V. Its rated sensitivity is 2 µV at 12 dB SINAD with squelch defeated, while input overload is specified at 100 mV. FM modulation uses ±75 kHz peak deviation, with 75 kHz FM deviation and 75 µS de-emphasis. The receiver operates from 32 to 122 degrees Fahrenheit, equivalent to 0 to 50 degrees Celsius. When no RF signal is present for approximately three minutes, the power-save function places the receiver into sleep mode.

What Makes It Different

The SelectView model brings status viewing and channel selection together on a compact OLED interface rather than limiting operation to an unmarked channel control. Its dual support for disposable alkaline and rechargeable NiMH AA batteries lets the power source be selected for the intended operating routine. The lightweight ABS enclosure is paired with an aluminum faceplate, while the green power-button illumination provides a separate, immediate indication of battery condition. Listed approvals include FCC, Industry Canada, RoHS, and WEEE.

Final Assessment

The SelectView FM Receiver is a focused choice for users who need 17 menu-accessed wideband FM channels, a visible receiver-status display, and standard 3.5 mm earphone or headphone connectivity. Its specified battery runtimes, automatic sleep mode, compact dimensions, and detailed audio ratings make operating requirements easy to evaluate before deployment. Buyers should confirm that the required FM frequency appears in the listed channel set and plan to provide two AA batteries plus compatible earphones or headphones. Warranty coverage is stated as a Lifetime PLUS Limited Warranty, with 90 days on most accessories.
