PPA Wall-Mount Dipole Ant

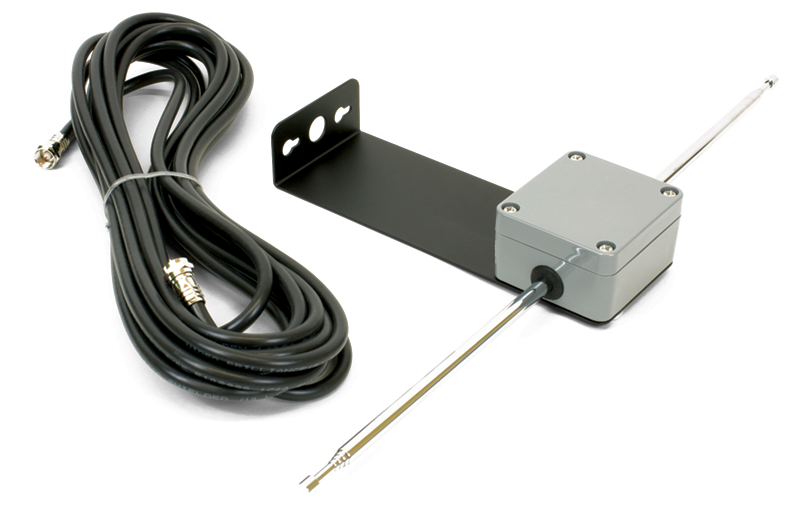

The Williams AV ANT 024 is a wall-mounted dipole antenna intended for large-area FM transmitters operating from 72–76 MHz. With both whips extended, the antenna measures 40 inches in total length. It uses an F-connector and comes with 20 feet of RG 59 coax cable for connection and placement within a compatible transmitter installation.

Ideal Use Cases

The ANT 024 is suited to installations that use a Williams AV large-area FM transmitter within the specified 72–76 MHz frequency range. Compatible transmitter models include the PPA T45, PPA T55, PPA T55C, and PPA T27. Its wall-mounted configuration makes it appropriate when the antenna needs to be positioned separately from the transmitter rather than placed directly on the transmitter enclosure.

The supplied 20-foot cable supports installations where the selected wall location is some distance from the transmitter. This combination of wall mounting, a defined FM operating range, and named transmitter compatibility gives system designers and installers concrete information for evaluating the antenna for a PPA system.

Why Choose This Model

This model combines a dipole antenna configuration with the connection components identified for supported Williams AV transmitters. The antenna is specified for 72–76 MHz FM operation and described as 75 Ohm. Its included RG 59 coax cable terminates the need to source a separate 20-foot cable based on the supplied product information.

Compatibility is clearly identified rather than left open-ended. The ANT 024 is listed for use with the PPA T45, PPA T55, PPA T55C, and PPA T27 transmitters, helping buyers match the accessory to one of the documented transmitter models.

Installation and Integration

The ANT 024 is designed for wall mounting. When both antenna whips are fully extended, the total antenna length is 40 inches, so the planned mounting position should accommodate that full dimension. The antenna connects through an F-connector, while the included cable is 20 feet of RG 59 coax.

Before installation, confirm that the transmitter is one of the listed compatible PPA models and that it operates within the antenna’s 72–76 MHz FM range. The cable length should also be considered when selecting the wall location and planning the route back to the transmitter. These documented measurements and connection details allow the antenna position, cable path, and transmitter location to be considered together before mounting.

Performance Highlights

The core performance specification is its defined 72–76 MHz FM operating range for large-area FM transmitters. The dipole assembly spans 40 inches when both whips are extended, providing a clearly stated installed antenna length. Connection is handled through an F-connector and the supplied RG 59 coax cable.

The product description identifies the antenna as 75 Ohm, while the accompanying technical specification data lists nominal impedance as N/A. The frequency range, connector, cable type, cable length, extended length, and compatible transmitter models are all specifically documented.

What Makes It Different

The ANT 024 is a purpose-identified antenna rather than an unspecified general FM accessory. Its documentation connects the model to four Williams AV PPA transmitters and provides the essential physical and integration details: wall-mounted dipole construction, 72–76 MHz FM operation, a 40-inch extended length, an F-connector, and 20 feet of RG 59 coax cable.

That defined combination helps distinguish the ANT 024 when selecting an antenna for an existing PPA T45, PPA T55, PPA T55C, or PPA T27 installation. Buyers can evaluate the operating band, cable reach, connector type, and required mounting space from the available specifications.

Final Assessment

For a compatible Williams AV PPA large-area FM transmitter, the ANT 024 provides a documented wall-mounted dipole option with the required antenna and cable details stated upfront. Its 72–76 MHz FM range, 40-inch total extended length, F-connector, and included 20-foot RG 59 coax cable make it a clearly specified accessory for the listed PPA transmitter models.
