Flat-pnl TV mnt brkt for IR T1 small-area IR transmitter. Hangs off TV

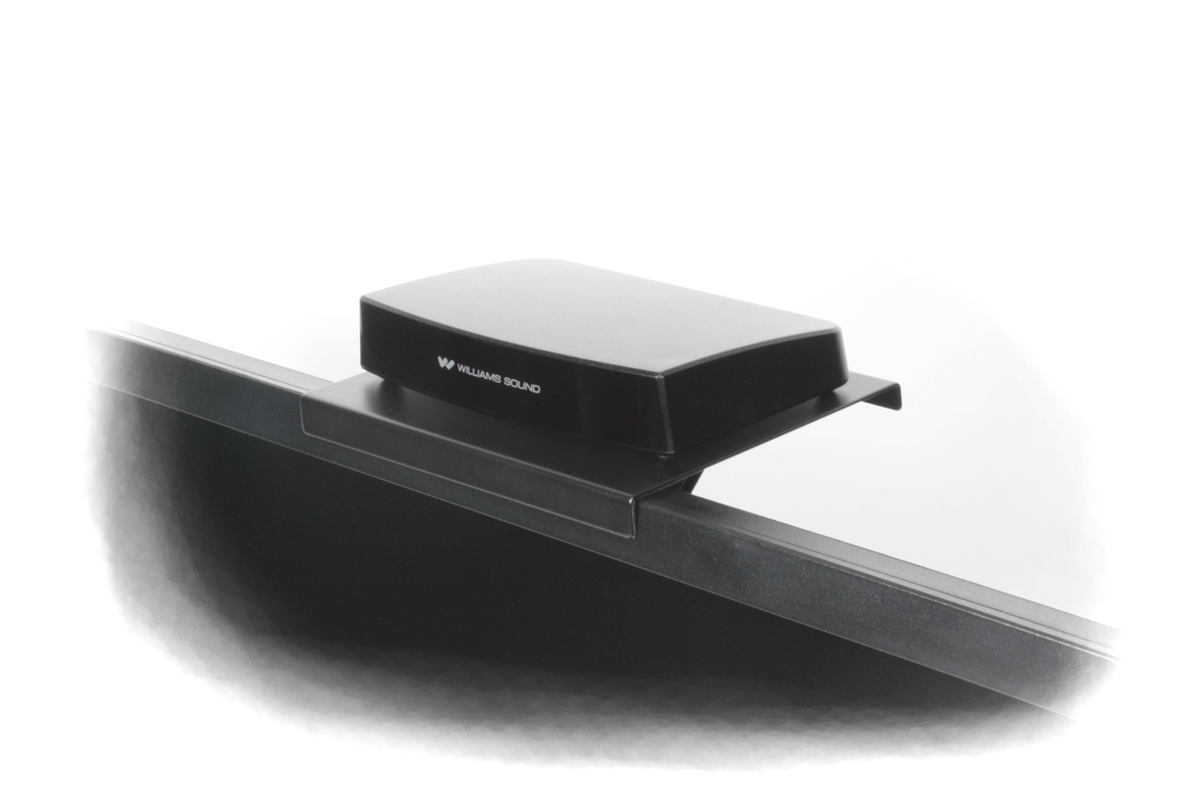

The Williams AV STD 008 is a TV top shelf designed to position an IR T1 small-area IR transmitter on a flat-panel television or monitor. Its painted-steel platform measures 6 inches wide by 4.75 inches deep (15 cm by 12 cm), providing a defined surface for the IR T1 while keeping the transmitter directly associated with the display. The shelf weighs 0.6 lb (272 g) and has a flat-black finish.

Ideal Use Cases

The STD 008 is intended for installations where an IR T1 transmitter needs to be placed on top of a television or monitor. It is suited to configurations that call for the transmitter to remain near the display without occupying a separate tabletop or equipment surface. Its 6-inch-wide shelf is specifically identified for the IR T1, making the intended device and installation location clear.

This model is particularly relevant when a compact, display-supported shelf is preferred. The product data does not specify compatibility with other transmitters, display thicknesses, or television designs, so those factors should be checked before installation.

Why Choose This Model

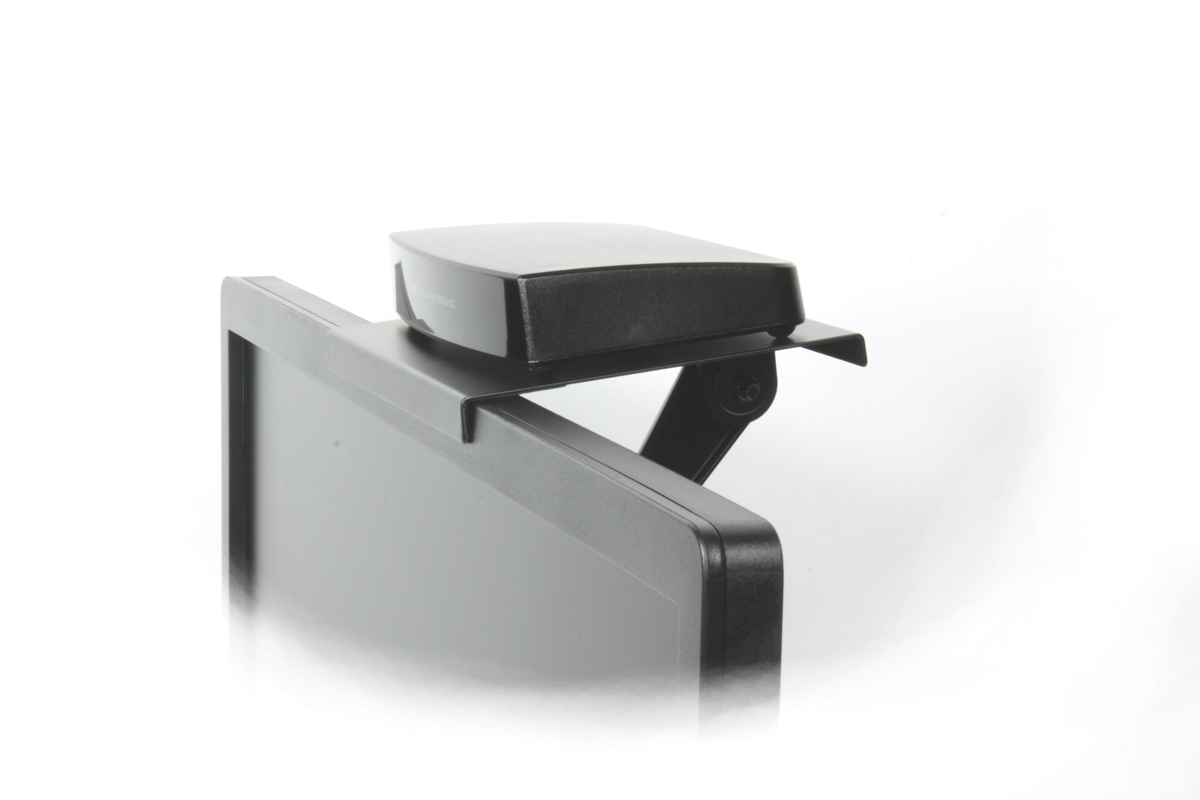

The shelf combines a painted-steel construction with a two-point support arrangement. A padded front lip rests on the television, while an adjustable arm supports the rear of the shelf. The arm includes a swivel lock, allowing its position to be adjusted and then secured for the selected display configuration.

At 0.6 lb (272 g), the shelf adds relatively little weight to the installation. Its flat-black color coordinates with the dark finishes commonly used on the IR T1 and television displays without introducing a contrasting accessory color.

Installation and Integration

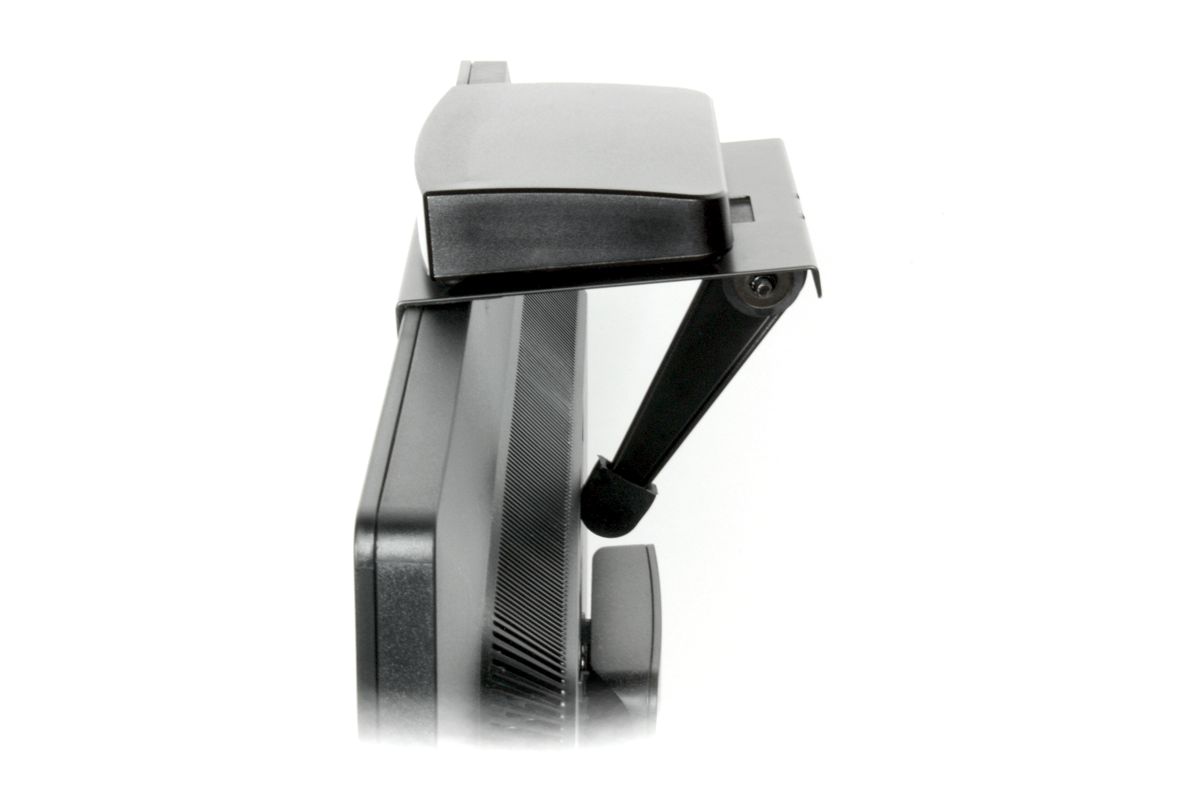

The STD 008 hangs from the top of the television or monitor. During installation, the padded front lip is positioned against the display, and the rear support arm is adjusted to support the back of the shelf. The swivel lock is then used to hold the arm in its selected position. This arrangement supports the shelf from both the front and rear rather than relying on the platform alone.

Before placing the IR T1 on the shelf, confirm that the display can accommodate the front lip and adjustable rear arm. Also verify that the 6-inch-wide by 4.75-inch-deep platform is appropriate for the intended setup. No television-thickness range, load rating, fastener requirements, or alternate mounting method is provided in the source data.

The monitor and IR T1 shown or referenced with the shelf are not included.

Performance Highlights

As a passive mounting accessory, the STD 008 has no stated electrical or signal-processing specifications. Its relevant performance characteristics are mechanical: painted-steel construction, a padded contact point at the front, an adjustable rear arm, and a swivel lock for maintaining the arm position.

• Platform dimensions: 6 inches wide by 4.75 inches deep
• Metric dimensions: 15 cm wide by 12 cm deep
• Weight: 0.6 lb (272 g)
• Material: painted steel
• Finish color: flat black

What Makes It Different

The defining feature of the STD 008 is its display-supported shelf design for the IR T1. Instead of describing a general-purpose shelf, the supplied product information identifies the IR T1 as the intended device. The padded front lip provides a contact surface where the shelf rests on the television, while the adjustable arm and swivel lock support the opposite side.

This combination addresses both placement and adjustment within one compact accessory. The front lip, rear support arm, and locking adjustment are integral parts of the shelf-support design rather than separate listed accessories.

Final Assessment

The Williams AV STD 008 offers a clearly defined way to place an IR T1 small-area IR transmitter on top of a television or monitor. Its 6-inch by 4.75-inch painted-steel shelf, padded front lip, adjustable rear arm, and swivel lock provide the essential components described for display-top placement. It is a focused option for IR T1 installations, provided the dimensions and support arrangement suit the specific display. The monitor and IR T1 must be supplied separately.
