86" Multi-touch Interactive UHD LED 330 Nits

Ideal Use Cases

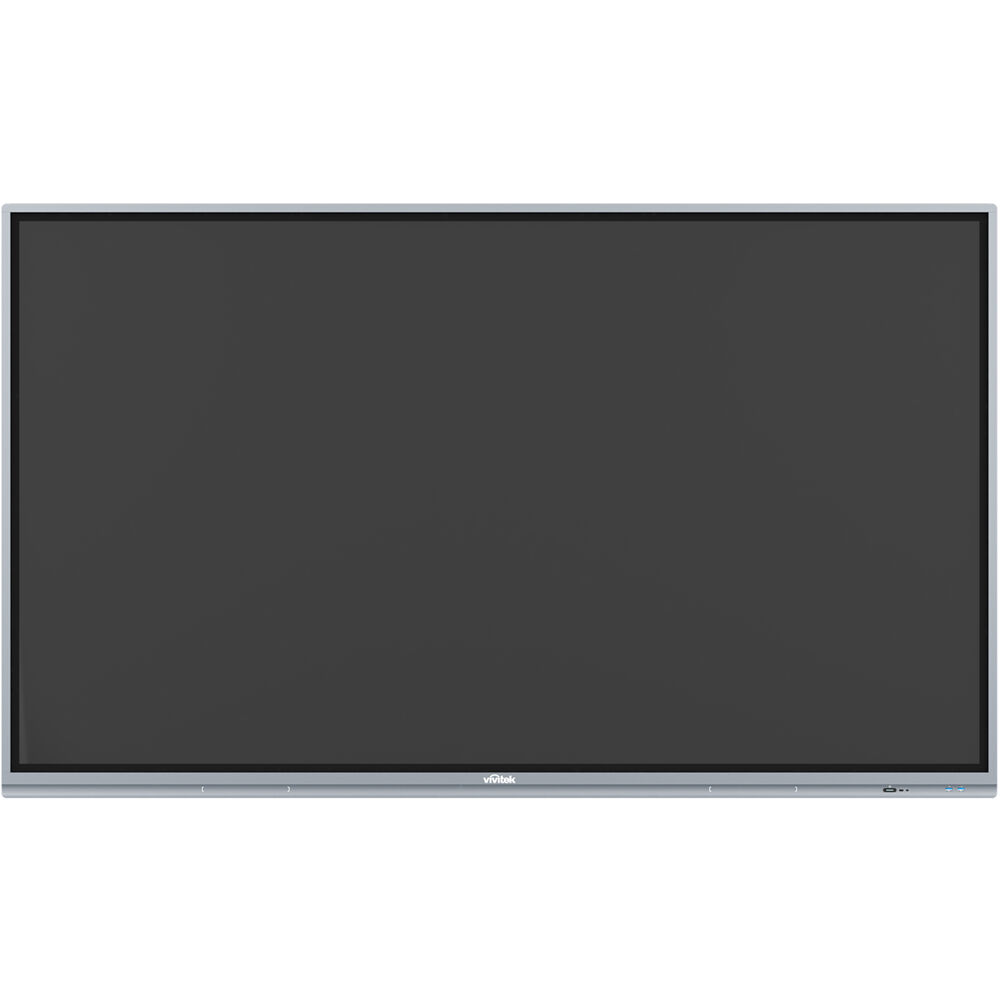

The Vivitek NovoTouch EK865i is an 86-inch interactive flat panel built around a 4K UHD D-LED display with IPS-ADS technology. It is suited to the hybrid meetings, training sessions, and classroom instruction identified in the source material. The large-format display supports shared viewing, while its 178-degree horizontal and vertical viewing angles help keep on-screen material visible from different positions in the room.

NovoConnect wireless collaboration, videoconferencing functionality, and NovoDS digital signage give the EK865i a broad role beyond conventional presentation. Optional BYOM functionality is also available. Touch input supports 10-point annotation and 20-point touch, allowing presenters and participants to work directly with displayed material using a finger, stylus, glove, or opaque object.

Why Choose This Model

The EK865i combines its 86-inch workspace with Android 11 and 64 GB of internal eMMC flash storage. Its display is rated for an estimated 50,000-hour life, 16/7 daily operation, and landscape installation. A 60 Hz refresh rate and support for 1.07 billion colors complement the native 4K UHD resolution.

• 86-inch D-LED display with IPS-ADS technology
• Native 4K UHD resolution and 60 Hz refresh rate
• 20-point touch with 10-point annotation
• Android 11 with 64 GB eMMC flash storage
• NovoConnect collaboration and NovoDS digital signage
• Videoconferencing functionality with optional BYOM

The touch surface uses 4 mm tempered glass rated at level 7H on the Mohs scale. Touch accuracy is specified at plus or minus 1 mm across more than 90 percent of the surface, with a touch resolution of 32,768 by 32,768.

Installation and Integration

The display is designed for landscape installation and supports an 800 x 400 mm VESA mounting pattern using six M8 x 25 mm mounting points. Listed dimensions are 1,957.4 x 1,160.1 x 91.4 in width, depth, and height order, although the source data does not specify the measurement unit.

Connection options include one HDMI input, two HDMI outputs, HDMI version 2, four USB-A 3.0 ports, two USB-A 2.0 ports, four USB-B 3.0 touch connections, and one USB-C 3.1 port providing up to 65 W of power. A microSD slot and external USB support for FAT32 and NTFS media are also provided. Network connectivity includes two 10/100/1000M LAN ports, one RJ45 Ethernet connection with PoE, and Wi-Fi 6 supporting 802.11 a/b/g/n/ac/ax over the listed 2.4/6 GHz bands through a USB dongle or integrated connection.

Additional integration connections include RS-232 input, S/PDIF output, a 3.5 mm audio input, a 3.5 mm audio output, and an infrared receiver. Power requirements are 100-240 V AC at 50/60 Hz and 3 A. Consumption is listed at 450 W, with standby consumption below 0.5 W.

Performance Highlights

Native 4K UHD resolution provides the foundation for displaying detailed presentations, instructional material, conferencing content, and digital signage. The IPS-ADS panel technology is paired with 178-degree viewing angles in both directions. The display specification lists 1.07 billion colors and a 60 Hz refresh rate.

For interactive work, the combination of 20-point touch, 10-point annotation, high touch resolution, and support for several input tools accommodates different presentation and teaching methods. Two styluses are supplied, while the tempered-glass surface adds a documented level of protection for frequent use.

What Makes It Different

The EK865i brings collaboration, signage, videoconferencing, touch interaction, and an Android operating environment into one display. NovoConnect provides wireless collaboration, while NovoDS supports digital-signage applications. Optional BYOM extends the available meeting workflow when required.

Its connection selection covers conventional HDMI sources, touch-enabled computers, USB media, USB-C devices, wired networking, Wi-Fi 6, serial control, digital audio, and microSD storage. Standard accessories include an HDMI cable, regional warranty card, remote control with battery, one audio cable, two styluses, and an AC power cord. LauncherPlus and LauncherOne are listed as optional accessories.

Final Assessment

The Vivitek EK865i is configured for organizations needing an 86-inch 4K UHD interactive display for meetings, training, education, videoconferencing, or digital signage. Its 20-point touch capability, Android 11 platform, collaboration tools, extensive connectivity, and documented 16/7 operating schedule define its practical role. The standard panel warranty is three years, excluding accessories such as OPS. An education panel warranty extends to five years with registration, with accessories excluded.
