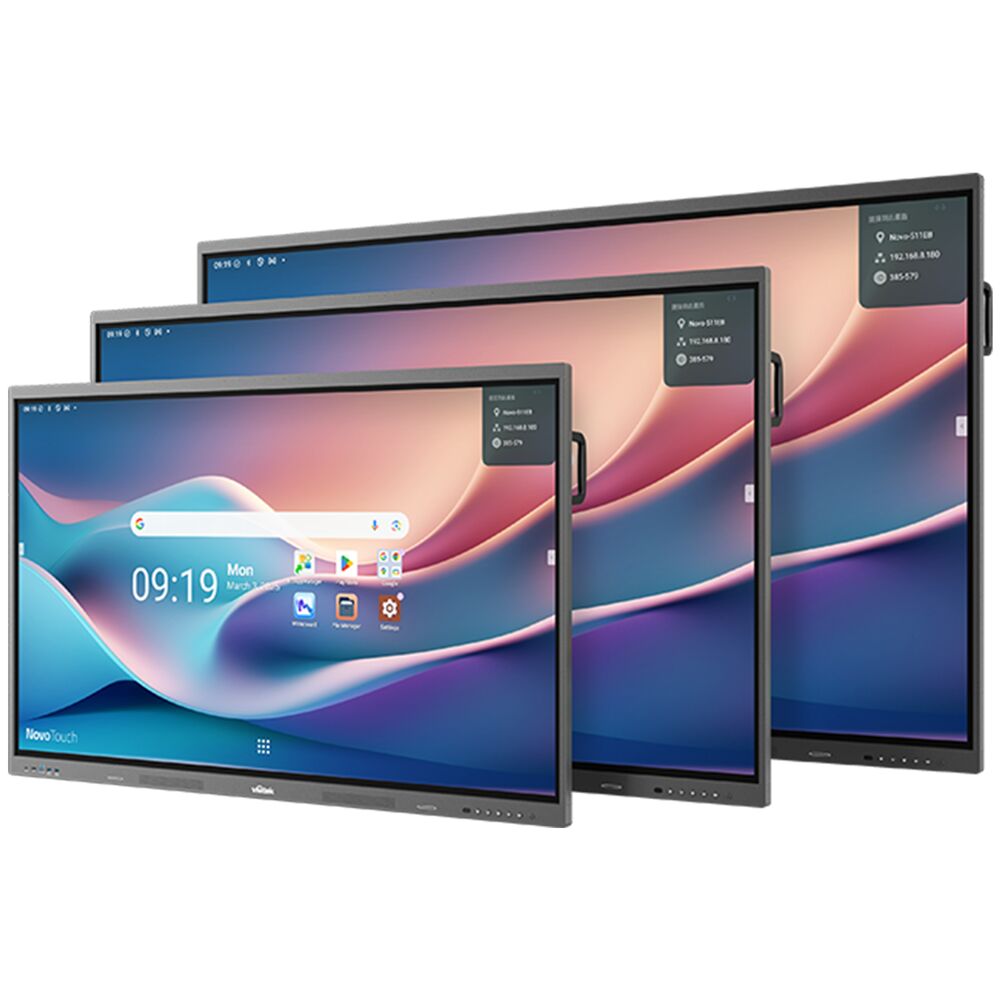

86" Multitouch interactive flat panel, UHD LED, 400 nits, EDLA certified

Ideal Use Cases

The Vivitek NovoTouch BK863i is an 86-inch interactive flat panel created for educational and professional environments where large-format viewing, shared content, and direct on-screen interaction are central to the room. Its native 4K Ultra HD resolution of 3840 x 2160 and 178-degree horizontal and vertical viewing angles support classrooms, training areas, meeting rooms, and presentation spaces. Integrated NovoConnect wireless collaboration enables screen sharing, while the digital whiteboard supports interactive sessions. An integrated digital-signage solution allows the panel to handle visual communications as well as collaborative work.

Why Choose This Model

The BK863i combines an UHD display, multitouch input, embedded Android 14, wireless collaboration, whiteboarding, and digital signage in one panel. It is also identified as EDLA certified. The touch system supports up to 40 touch points and 10-point annotation, allowing multiple inputs during collaborative activities. Users can interact with a finger, stylus, glove, or other opaque object. Internal 64 GB eMMC flash storage supports the panel's embedded operating environment without requiring storage to be added for its standard onboard functions.

Installation and Integration

The panel is intended for landscape installation and provides an 800 x 400 mm VESA mounting pattern using four M8 x 25 mm mounting points. Its listed dimensions are 1953.0 x 90.2 x 1172.3 in length, depth, and height, although the source does not specify the measurement unit. Power requirements are AC 100–240 V at 50/60 Hz and 4.5 A. Connectivity includes two HDMI inputs, one HDMI output, HDMI 2.0, one 3.5 mm audio input, one 3.5 mm audio output, an RJ45 LAN port, RS-232 input, and S/PDIF output. USB connections include two USB-A 3.0 ports, one USB-A 2.0 port, two USB-B ports, and one USB-C 3.1 port providing 15 W power.

Performance Highlights

The 86-inch IPS-ADS panel uses D-LED backlighting and delivers native 4K UHD detail at a 60 Hz refresh rate. Detailed specifications list brightness at 450 cd/m², while the supplied product title states 400 nits; buyers planning around a specific brightness requirement should note this difference in the provided data. The display has an estimated service life of 50,000 hours, a listed color depth of 1.07 billion, and a specified 16/7 daily-use schedule. Touch resolution is 32,768 x 32,768, with accuracy of plus or minus 1 mm across more than 90 percent of the touch surface.

What Makes It Different

NovoConnect wireless collaboration is built into the BK series for convenient screen sharing, reducing dependence on a single wired presentation source. Wireless connectivity supports Wi-Fi 6 and 802.11 a/b/g/n/ac/ax across the listed 2.4/6 GHz bands. The combination of 40-point touch, 10-point annotation, a digital whiteboard, and integrated digital signage gives the BK863i several operating roles within the same installation. Its touch surface is protected by 3 mm tempered glass listed at level 7H on the Mohs mineral hardness scale, supporting repeated interaction in shared environments.

Final Assessment

The BK863i is a large-format interactive display centered on 4K presentation, multipoint participation, and embedded collaboration. Its 86-inch screen, Android 14 operating system, NovoConnect sharing, broad wired connectivity, and Wi-Fi 6 support make it suitable for education and professional presentation environments. The gray panel is supplied with an HDMI cable, region-dependent warranty card, remote control with battery, and AC power cord. Optional items listed for the model include a P/N remote control, LauncherPlus, and LauncherOne.
