Product Overview
The ViewSonic Pro9500 LCD Projector is a dream machine for the true videophile. The Pro9500 delivers 5000 ANSI lumens, 3500:1 contrast ratio (active IRIS) with a 1024 x 768 XGA native resolution, allowing it to shine in virtually any lighting situation. Enjoy the finest quality in high-definition movies, video and TV with full 24-bit color processing, detail enhancement technology and a motion adaptive de-interlacer for crisper, sharper images. With an HDMI input and three component inputs you can hook up multiple sources and enjoy them all in unexcelled clarity.
Those great specs could be ruined by a noisy cooling fan. The Pro9500's normal mode is a very quiet 36 dB, a little more than the sound of rustling leaves. In Eco-mode it's an even quieter 29 dB.
All of this high quality projection power weighs less than 11 pounds and it can be powered by 100 to 240 V AC at 50 to 60 Hz. Compatibility with NTSC, PAL and SECAM makes the Pro9500 a true global citizen.
5000 Lumens Of Brightness
Get Double Lumens
PC-Less Slide Show Presentation
Network Display
USB Display
Network Control Through RJ-45
Superior 16W Stereo Sound
Eco-Mode For Green Savings
Closed Captioning
Control
OSD: Picture Menu: Brightness, Contrast, Gamma, Color Temp, Color, Tint, Sharpness, Active IRIS, My Memory Image Menu: Aspect, Over Scan, V position, H position, H Phase, H size, Auto Adjust Execute INPUT Menu: Progressive, Video NR, Color Space, Component, Video Format, HDMI Format, HDMI Range, Computer In, Frame Lock, Resolution Setup Menu: Auto Keystone, Keystone H/V, Perfect Fit, Auto Eco-mode, Eco-mode, Mirror, Standby mode, Monitor out Audio Menu: Volume, Speaker, Audio Source, HDMI Audio, Mic Level, Mic Volume Screen Menu: Language, Menu Position, Blank, Start up, MyScreen, MyScreen Lock, Message, Source Name, Template, CC Option Menu: Auto Search, Auto Keystone, Direct Power On, Auto Power Off, USB Type B, Lamp Time, Filter Time, My Button, My Source, Service (Fan Speed, Auto Adjust, Ghost, Filter Message, Key Lock, Remote FREQ, Communication, Information, Factory Reset) Network Menu: Setup, Projector Name, My Image, AMX D.D, Presentation, Information, Service Security Menu: Security password change, MyScreen password, PIN Lock, Transition Detector, My Text Password, My Text Display, My Text Writing, Security Indicator, Stack Lock.
-
XGA (1024 x 768) native resolution and 5200 lumens brightness for clear projection in ambient light conditions.
-
3LCD technology offers consistent color performance and sharp image clarity for professional environments.
-
Vertical and horizontal lens shift, 1.7x optical zoom, and keystone correction for flexible installation.
-
Comprehensive connectivity including HDMI, VGA, Component, BNC, LAN control, and RS-232 for AV integration.
-
Designed for continuous operation with advanced cooling and monitoring features for mission-critical use.
General Characteristics
-
Display Type: 3LCD
-
Native Resolution: XGA (1024 x 768)
-
Brightness: 5200 ANSI lumens
-
Contrast Ratio: 3,000:1
-
Lens: Manual focus and zoom, 1.7x zoom ratio
-
Lens Shift: Vertical and Horizontal
-
Projection Distance: 3.3 ft – 32.8 ft (approximate range)
-
Screen Size: 30" – 300" diagonal
-
Lamp Life: Up to 2500 hours (normal) / 3000 hours (eco)
-

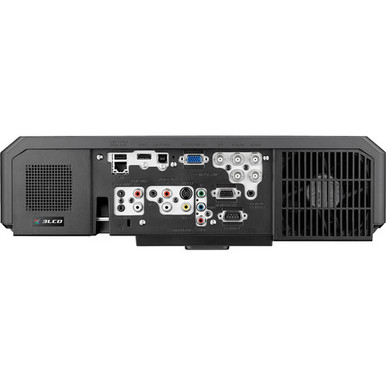

Inputs: HDMI, VGA (x2), Component, S-Video, BNC, Audio In
-
Control Ports: RS-232, LAN (RJ-45)
-
Built-in Speaker: 10W
-
Power Supply: 100–240V AC, 50/60Hz
-
Dimensions: Approx. 16.9 x 6.5 x 13.0 inches
-
Weight: Approx. 17.9 lbs
Technical Specifications
| Specification | Details |
|---|---|
| Display Type | 3LCD |
| Native Resolution | XGA (1024 x 768) |
| Brightness | 5200 ANSI lumens |
| Contrast Ratio | 3,000:1 |
| Zoom Ratio | 1.7x Optical Zoom |
| Lens Shift | Vertical & Horizontal |
| Projection Size | 30" to 300" diagonal |
| Inputs | HDMI, VGA x2, Component, BNC, S-Video |
| Audio In/Out | Yes (3.5mm, RCA) |
| Control Interfaces | RS-232, LAN (RJ-45) |
| Built-in Speaker | 10W Mono |
| Lamp Life | Up to 3000 hours (Eco Mode) |
| Power Supply | 100–240V AC, 50/60Hz |
| Dimensions (W×H×D) | 16.9 × 6.5 × 13.0 inches |
| Weight |
17.9 lbs |
The ViewSonic PRO9500 delivers 5200 ANSI lumens of brightness and XGA resolution, ensuring legible and sharp presentations even in brightly lit environments such as lecture halls or conference rooms.
Equipped with a 3LCD projection engine, the PRO9500 maintains color accuracy and image stability across a wide color spectrum, suitable for detailed graphics, text, and video content.
Installation flexibility is supported through vertical and horizontal lens shift, 1.7x optical zoom, and adjustable keystone correction, allowing for off-center or ceiling-mounted projection.
Multiple connectivity options—including HDMI, VGA, BNC, RS-232, and LAN—enable the projector to interface with a variety of control systems and AV sources for seamless integration.
The projector is engineered for 24/7 operational capability with robust cooling, a replaceable lamp system, and network monitoring features designed for high-usage environments.
