4,000 ANSI lumens, 0.65" 1080p DLP Laser Projector

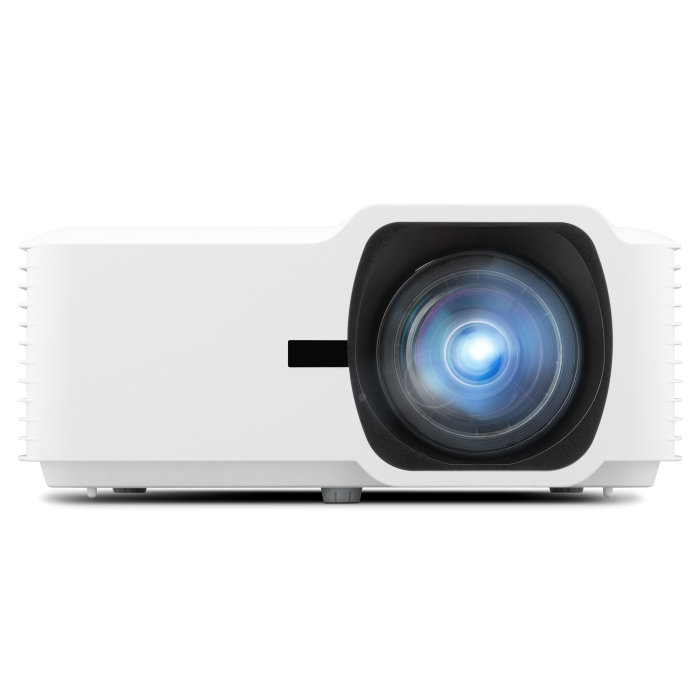

The ViewSonic LSD400HD-ST is a Full HD short-throw laser projector built for business and education environments where high brightness and limited room depth must work together. Its 4,000 ANSI-lumen output, 0.5 throw ratio, and 0.65-inch DMD chip support a clear 1080p image, while the laser-phosphor light source is rated for 30,000 hours. HDR10 and HLG compatibility, a 3,000,000:1 contrast ratio, and flexible orientation options broaden how it can be deployed.

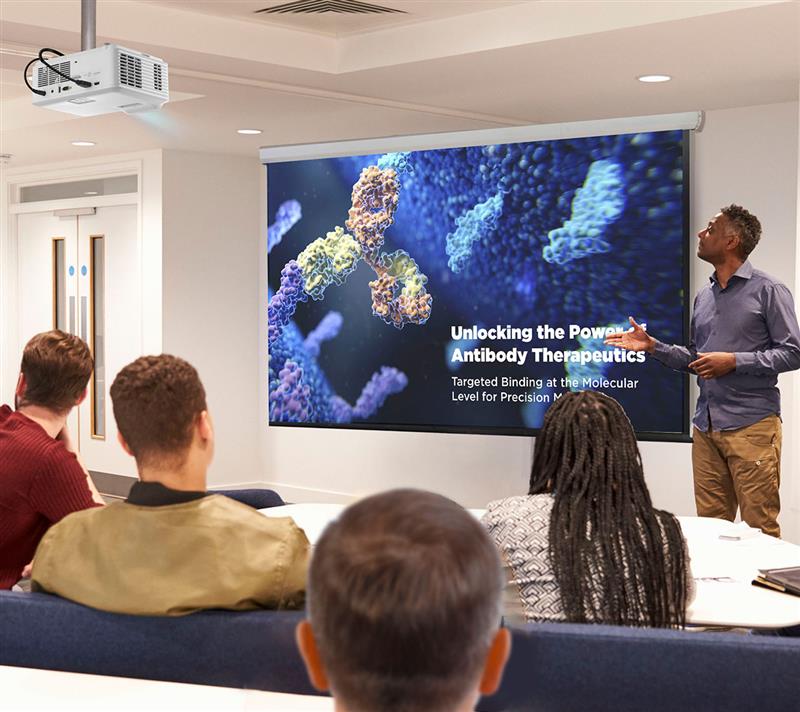

Ideal Use Cases

This model fits classrooms and business presentation spaces that need a large picture without placing the projector far from the screen. At the specified 0.5 throw ratio, it can produce a 100-inch image from 1.1 meters (3.6 feet) away. That short distance is useful when room depth is limited or when a presenter needs to work closer to the display area. Full HD resolution supports detailed slides, text, charts, instructional media, and video at a native 1080p resolution.

Why Choose This Model

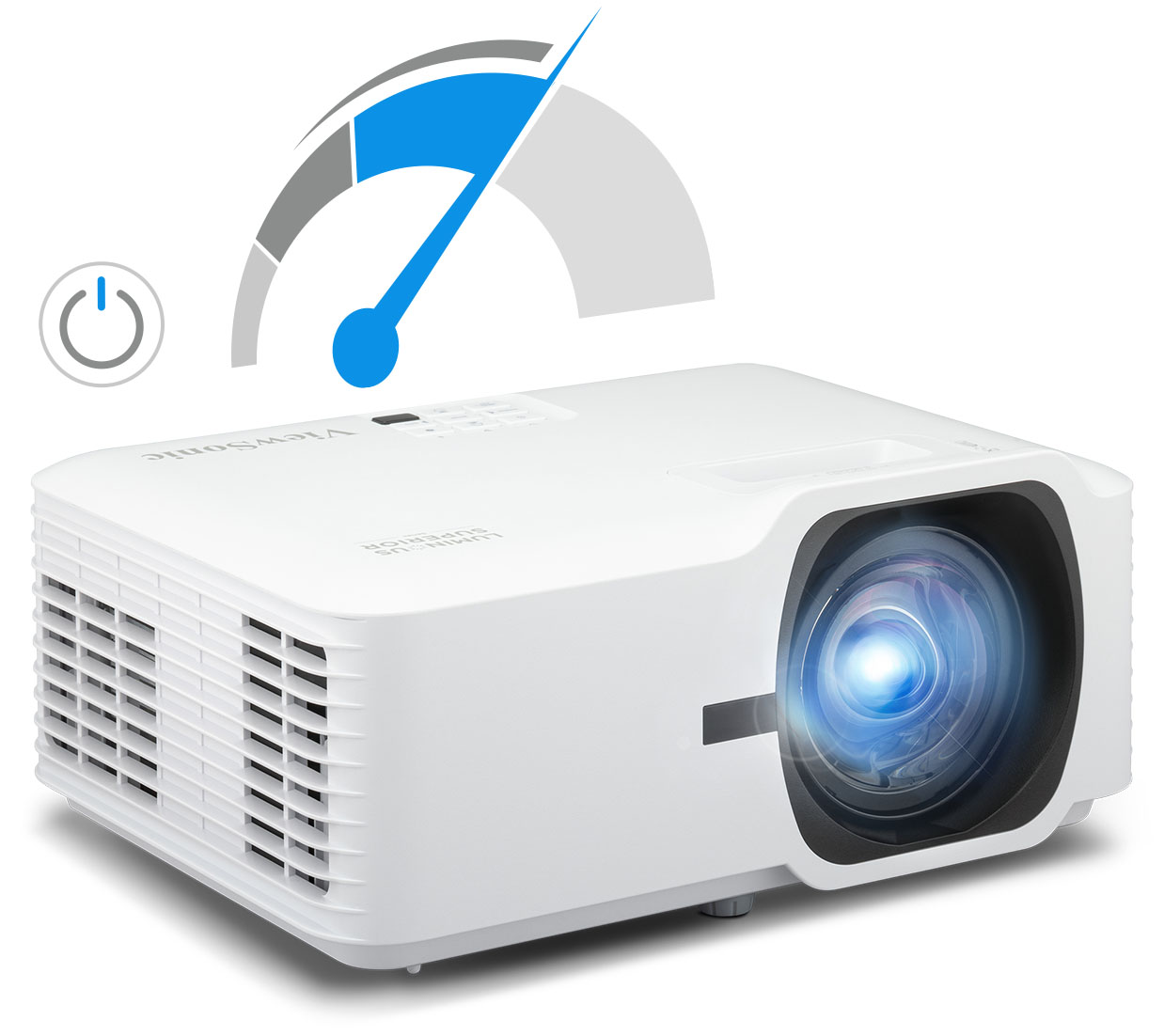

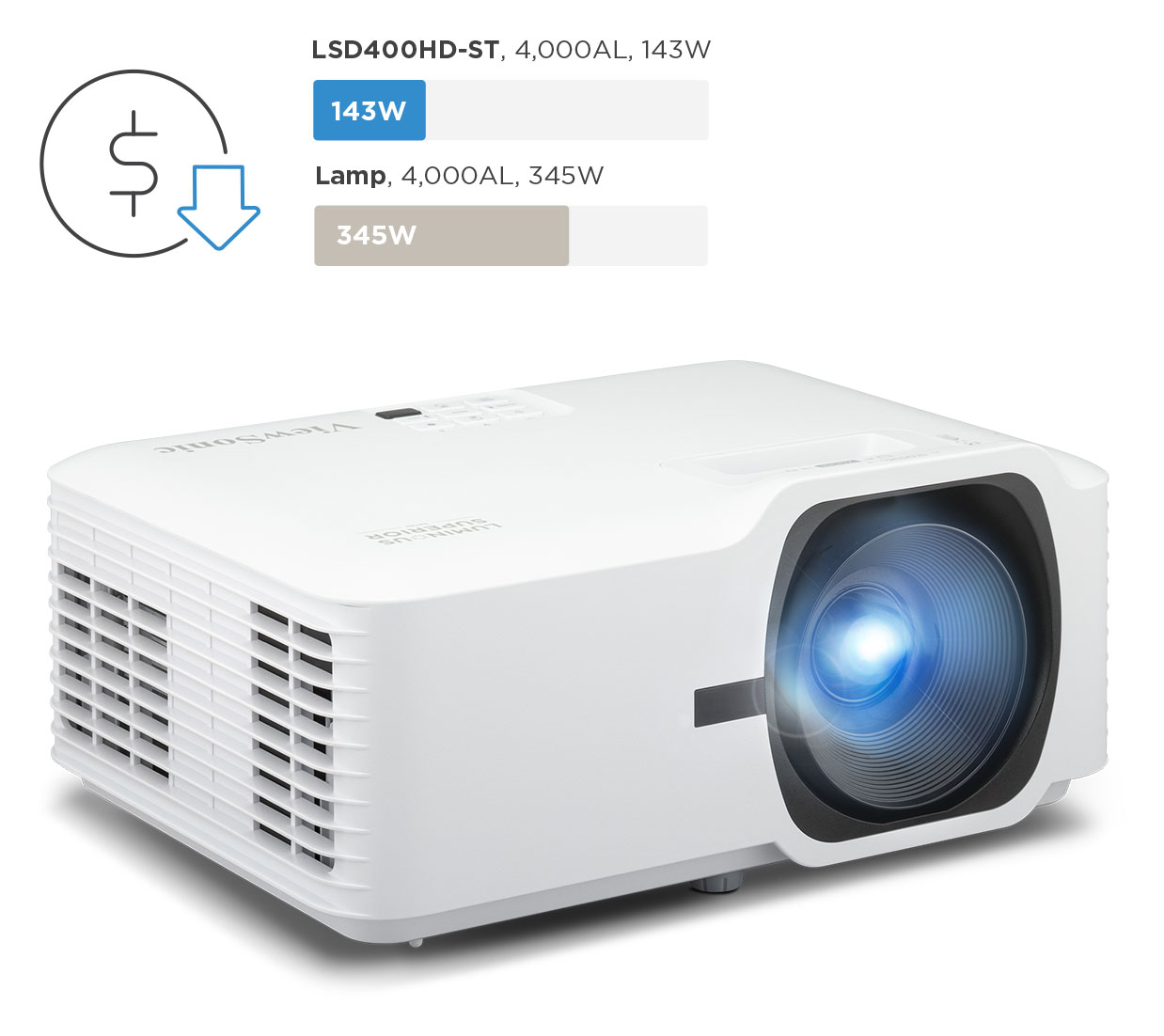

The core advantage is the combination of brightness, short-throw optics, and a long-life light source. The 4,000 ANSI-lumen rating supports its business and classroom positioning, while third-generation laser-phosphor technology provides a maintenance-free light source with a stated 30,000-hour lifespan. The mercury-free design also supports the model’s eco-focused positioning. Source data reports power consumption reduced by up to 49%, giving organizations a specific efficiency consideration alongside the extended laser life.

Installation and Integration

Installation flexibility extends beyond the short throw. The projector supports 360-degree projection, allowing operation through a full range of orientations, and it supports 90-degree portrait projection for vertically arranged content. Horizontal and vertical keystone correction helps align the image when placement is not perfectly square to the screen. Together, these functions accommodate conventional landscape presentations, portrait layouts, and other orientation-dependent setups. The 100-inch-at-1.1-meter example also gives integrators a concrete reference when evaluating close-range placement in a room.

Performance Highlights

Native Full HD 1080p resolution is paired with a 0.65-inch DMD chip for crisp image detail and high contrast. The specified contrast ratio is 3,000,000:1. Support for HDR10 and HLG gives the projector compatibility with both listed HDR formats when matching content is used. Its 4,000 ANSI lumens address presentation brightness, and the short-throw configuration maintains large-screen capability at close range. These specifications are especially relevant for fine text, structured presentation layouts, and educational visuals where clarity matters.

What Makes It Different

What separates the LSD400HD-ST within the supplied specification set is how its major features reinforce one another. The 0.5 throw ratio addresses limited space, the 4,000 ANSI-lumen output provides high brightness, and the 30,000-hour laser rating reduces attention to light-source maintenance. Its 360-degree and portrait support add installation freedom, while horizontal and vertical keystone correction assists with alignment. The energy-efficient, mercury-free design adds an operational consideration beyond picture performance. This is a focused combination for users prioritizing close-range large-format projection, Full HD clarity, and flexible positioning.

Final Assessment

The LSD400HD-ST is best assessed as a purpose-built 1080p business and education projector for rooms that benefit from short-throw placement. Its most important numbers are concrete: 4,000 ANSI lumens, a 0.5 throw ratio, a 100-inch image from 1.1 meters, 3,000,000:1 contrast, and a 30,000-hour laser life. Add HDR10 and HLG support, 360-degree projection, 90-degree portrait mode, and horizontal and vertical keystone correction, and the result is a strong fit when installation versatility and low-maintenance laser operation take priority.
