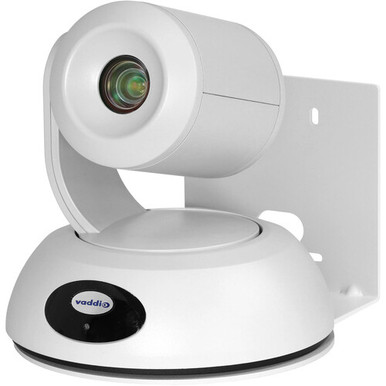

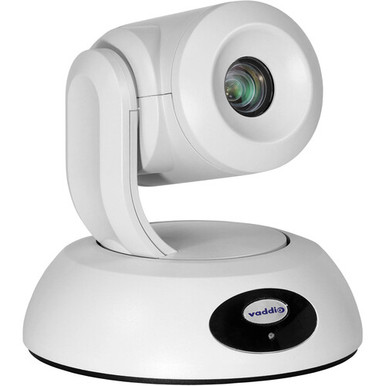

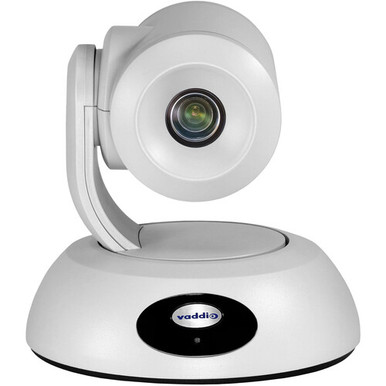

The Vaddio RoboSHOT 12E HDBT OneLINK Bridge Express System offers a powerful and convenient solution for capturing high-quality video. This system combines the capabilities of the white RoboSHOT 12E HDBT IP Camera System with the user-friendly OneLINK Bridge Express A/V interface.

Featuring a single 1/2.5″ type CMOS sensor, the RoboSHOT 12E HDBT camera system captures stunning 1080p60 video footage. With its high-resolution sensor, you can expect clear and detailed images in your video conferences, remote learning sessions, and other applications.

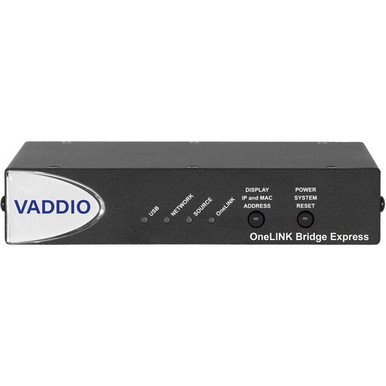

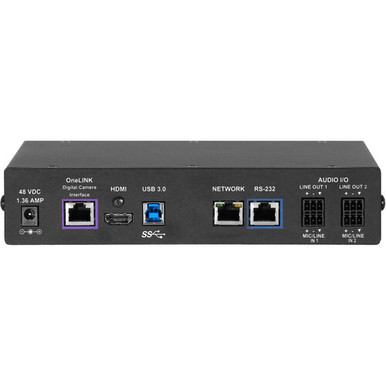

The OneLINK Bridge Express A/V interface simplifies your setup by allowing you to power the camera, send control signals, and transmit video over a single Cat 5 cable. This eliminates the need for multiple connections and reduces cable clutter, providing a streamlined and efficient installation process.

The RoboSHOT 12E HDBT OneLINK Bridge Express System is versatile and well-suited for various applications. Whether you’re hosting virtual meetings, delivering presentations, or conducting training sessions, this system delivers exceptional video quality and ease of use.

Experience the power and convenience of Vaddio’s advanced technology with the RoboSHOT 12E HDBT OneLINK Bridge Express System. It’s the perfect solution for those seeking high-quality video and audio performance, simplified installation, and seamless integration into their video communication setup.

Specifications

Sensor 1/2.5″-Type CMOS Sensor
Resolution HD 1080
Optical Zoom 20x
PoE Feature Yes
Signal to Noise Ratio 50 dB
Gain 0 to 33 dB
Shutter Speed Range 1/10000 to 1 Second
White Balance Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Image Flip Flip / Mirror Support Image Flip
Audio Input 2 x Block 3-Pin Line/Mic Input
Output 2 x Block 3-Pin Line/Mic Output 1 x HDMI Output
Focal Legnth 4.4 to 88.4mm
Minimum Object Distance Wide: 3.1″ / 8.0 cm Telephoto: 31.5″ / 80.0 cm
Focusing System Autofocus Manual Focus
Pan Angle 320° (-160 to 160°)
Tilt Angle 120° (-30 to 90°)
Pan Speed 0.35 to 120°/sec
Tilt Speed 0.35 to 120°/sec
Presets Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Power PoE+ 802.3at
Dimensions (WxHxD) 7.05 x 6.94 x 6.75″ / 17.91 x 17.63 x 17.14 cm
Minimum Illumination 1.6 Lux

Imaging
Sensor Type 1/2.5″-Type CMOS Sensor
Sensor Resolution Effective: 8.51 Megapixel
Built-In ND Filter None
Focus Control Autofocus
Manual Focus

Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1 Second
Gain 0 to 33 dB
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1.6 Lux
Flip / Mirror Support Image Flip
White Balance Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors

Lens
Focal Length 4.4 to 88.4mm
Optical Zoom Ratio 20x
Max Digital Zoom 1.5x
Field of View Horizontal: 70.2 to 3.1°
Maximum Aperture f/2 to 3.8
Minimum Focus Distance Wide: 3.1″ / 8.0 cm
Telephoto: 31.5″ / 80.0 cm

Video Capture
External Recording Modes HDMI / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC/PAL
IP Streaming H.264, RTMP, RTSP
1920 x 1080 to 352 x 240

Control
Presets 16
Move Speed Pan: 0.35 to 120°/sec
Tilt: 0.35 to 120°/sec
Movement Range Pan: 320° (-160 to 160°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
IR
RS-232

Interface

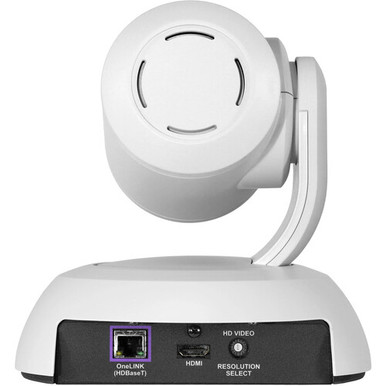

Video I/O 1 x RJ45 (HDBaseT) Output
1 x HDMI Output
Other I/O 1 x RJ45 Control Input (Shared with Power Input, Video Output)

Power
PoE Support PoE+ 802.3at

Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 80%

General
Certifications CE, FCC, TAA
*as per Manufacturer
Dimensions (W x H x D) 7.05 x 6.94 x 6.75″ / 17.91 x 17.63 x 17.14 cm
Weight 4.85 lb / 2.2 kg

Packaging Info
Package Weight 10.345 lb
Box Dimensions (LxWxH) 13.5 x 12.2 x 12.1″
