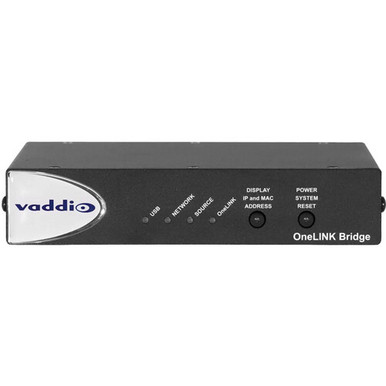

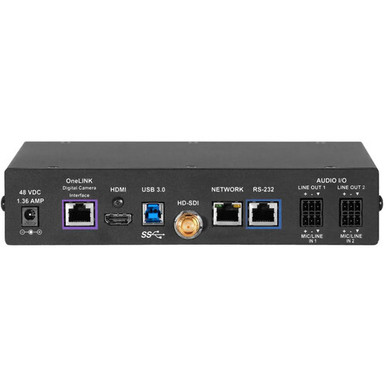

1.Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients

2.Connects professional A/V equipment to PC applications via USB 3.0 media stream

3.Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI

4.Two balanced audio inputs and two balanced audio outputs

5.Control via web interface or Telnet

6.Status lights



Specifications

Key Specs
Image Sensor 1/2.5″-Type CMOS
Sensor Resolution Actual: 8.57 Megapixel,Effective: 8.51 Megapixel
Shutter Type Electronic Rolling Shutter
Optical Zoom Ratio 20x
Max Digital Zoom 30x
External Recording Modes
RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC
IP Streaming H.264, RTMP, RTSP ,1920 x 1080 at 59.94p
Supported Control Protocols IR ,RS-232
PoE Support PoE++ 802.3bt

Imaging
Image Sensor 1/2.5″-Type CMOS
Sensor Resolution Actual: 8.57 Megapixel ,Effective: 8.51 Megapixel
Built-In ND Filter No
Focus Control Autofocus ,Manual Focus

Exposure Control
Shutter Type Electronic Rolling Shutter
Gain 0 to 33 dB
Precise Scan Rate Control No
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1.6 Lux
Flip / Mirror Support Image Flip
White Balance Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors

Lens
Focal Length 4.4 to 88.4mm
Optical Zoom Ratio 20x
Max Digital Zoom 30x
Field of View Horizontal: 70.2 to 3.4°
Maximum Aperture f/2 to 3.8
Minimum Focus Distance
Wide: 3.1″ / 8.0 cm
Telephoto: 31.5″ / 80.0 cm

Video Capture
External Recording Modes
RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC
IP Streaming
H.264, RTMP, RTSP
1920 x 1080 at 59.94p

Control
Presets 16
Move Speed
Pan: 0.4 to 120°/sec
Tilt: 0.4 to 120°/sec
Movement Range
Pan: 320° (-160 to 160°)
Tilt: 120° (-30 to 90°)
Tally Light No
Supported Control Protocols
IR
RS-232
Max Cable Length
230′ / 70.1 m (Cat 5e)
328′ / 100 m (Cat 6)

Interface
Video I/O 1x RJ45 (HDBaseT) Output
Other I/O 1x RJ45 Control Input (Shared with Power Input, Video Output)

Power
PoE Support PoE++ 802.3bt

Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80% ()
Storage Humidity 20 to 80% (Non-Condensing)

General
Certifications CE, FCC
Dimensions (W x H x D) 16 x 9.3 x 16″ / 40.6 x 23.6 x 40.6 cm
Weight 15 lb / 6.8 kg

Packaging Info
Package Weight 3.43 lb
Box Dimensions (LxWxH) 12.3 x 9.3 x 3.2″
