Audio Bandwidth 20 Hz – 20 kHz
Dynamic Range > 90 dB
Audio Input Balanced: Impedance; 10 KΩ, Nominal Level; +4 dBu Unbalanced: Impedance; 10 KΩ, Nominal Level; -10 dBV
Audio Output Balanced: Impedance; 50 Ω, Nominal Level; +4 dBu Unbalanced: Impedance; 10 KΩ, Nominal Level; -10 dBV
CE Compliance FCC 47 CFR Part 15, Subpart B/Oct. 2009 Class A ICES-003, Issue 4: 2004 Class A EN-55011:2007 + A2: 2007 Class A EN 55022:2006 + A1: 2007 Class A CISPR 22:1997 Class A IEC 60950-1:2005 (Second Edition); Am 1:2009 Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety EMC Directive 2004/108/EC Class A

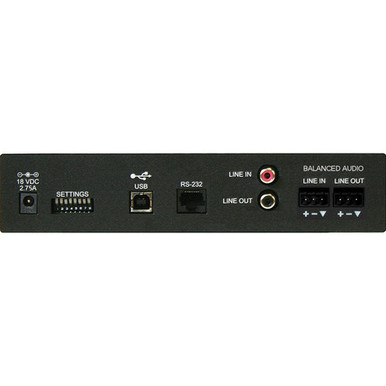

Connectors 1 x USB type B 1 x RJ-45, RS-232 serial port 38.4K baud 1 x RCA female, unbalanced audio input 1 x RCA female, unbalanced audio output 1 x 3-pin Euro terminal block, balanced audio input 1 x 3-pin Euro terminal block, balanced audio output 1 x DC barrel, 18 VDC, power input
Indicators 1 x LED, power
Controls 1 x 8-postition DIP switch, audio settings
Audio Interface Type: USB 2.0 compliant PC Audio Controls: Mute & Volume PC HID Controls: On/Off Hook (application dependent)
Power Supply 18 VDC, 1.0 A
Operating Temperature Range 32 to 104 F (0 to 40 C)
Humidity (Relative) 20% to 80%
Dimensions 1.7 x 8.4 x 6.0″ (4.4 x 21.3 x 15.2 cm)
Weight 1.40 lb (0.64 kg)
Package Weight 3.35 lb
Box Dimensions (LxWxH) 16.1 x 9.5 x 3.4″
Vaddio EasyUSB Overview The AudioBRIDGE includes independent USB and analog gain stages. The gain structures can be configured between the pro audio equipment without being impacted by PC volume controls. Additionally, the AudioBRIDGE includes an RS-232 serial control port for use with AMX/Crestron control systems. Vaddio EasyUSBSpecs
Audio Bandwidth 20 Hz 20 kHz
Audio Bandwidth Dynamic Range > 90 dB THD + N
Audio Input Balanced Impedance; 10 KΩ, Nominal Level; +4 dBu
Audio Input Unbalanced Impedance; 10 KΩ, Nominal Level; -10 dBV
Audio Output Balanced Impedance; 50 Ω, Nominal Level; +4 dBu
Audio Output Unbalanced Impedance; 10 KΩ, Nominal Level; -10 dBV CE Compliance
Audio Output FCC 47 CFR Part 15, Subpart B/Oct. 2009 Class A
Audio Output ICES-003, Issue 4: 2004 Class A
EN-55011:2007 + A2: 2007 Class A
Audio Output EN 55022:2006 + A1: 2007 Class A CISPR 22:1997 Class A, 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety
Audio Output IEC 60950-1:2005 (Second Edition); Am 1:2009 Safety
EMC Directive 2004/108/EC Class A Compatibility Software Client Cisco Jabber(4.4), Web Ex(WBS 28.7), Skype(6.0), Adobe Connect (9.0.1), Microsoft Lync (4.0.7), Gotomeeting/Citrix(5.4), Vidyo Desktop(2.2.1), Polycom M100(1.0.4), Lifesize ClearSea(8.2.0), Google Plus, Panopto(4.2.5602), Quick Time Media Player(2.0.4), VLC Media Player(10.2), Real Player
Unified Communications Client IOCOM, Radvison Scopia, Apple FaceTime, Blackboard, Tegrity, Echo 360, USTREAM, Livestream, PresenterPro, Microsoft Expressions Encoder 3, VCON, AVAYA ONE General Connectors
1 x USB type B 1 x RJ-45, RS-232 serial port 38.4K baud
1 x RCA female, unbalanced audio input, output 1 x 3-pin Euro terminal block, balanced audio input 1 x 3-pin Euro terminal block, balanced audio output 1 x DC barrel, 18 VDC, power input Indicators 1 x LED, power Controls
Audio Output 1 x 8-postition DIP switch, audio settings
Audio Interface Type USB 2.0 compliant
PC Audio Controls Mute & Volume
PC HID Controls On/Off Hook (application dependent)
Audio Interface Power Supply 18 VDC, 1.0 A
Power Consumption Operating Temperature Range 32 to 104 F (0 to 40 C) Humidity (Relative) 20% to 80% Dimensions 1.7 x 8.4 x 6.0″ (4.4 x 21.3 x 15.2 cm) Weight 1.40 lb (0.64 kg) Packaging Info Package Weight 3.35 lb
Power Consumption Box Dimensions (LxWxH) 16.1 x 9.5 x 3.4″
SKU 999-8536-000
