Atlona AT-UHD-EX Overview
The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.
4K/UHD Capability
• Compatible with Ultra High Definition sources and displays
• Full support of 4K/UHD streaming services and playback devices
• Full support of 4K/UHD streaming services and playback devices
HDCP 2.2 Compliant
• Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices
• Allows protected content stream to pass between devices
PSE - Power Sourcing Equipment
• Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
• Eliminates the need for the receiver to be powered remotely or by a power-injection device
• Eliminates the need for the receiver to be powered remotely or by a power-injection device
AV, Ethernet, Power, and Control over HDBaseT
• Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display
• Eliminates multiple cable runs between source, control system, router, and display
Note:
Note: Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX-PSE receiver when used with the UHD-PRO3 Series matrix switchers.
Extended Distance HDMI Extension
• Receives HDMI signals up to 328' @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation
• Uses easy-to-integrate category cable for low-cost, reliable system installation
Extends RS-232, CEC, and Ethernet Control Signals
• Control signals travel over HDBaseT link to device for maximum control system flexibility
• Simplifies integration of source, control system, and display
• Simplifies integration of source, control system, and display
Note:
Note: The AT-UHD-EX-100CE-RX-PSE does not include I/O ports for IR control signals extended over HDBaseT. If IR over HDBaseT is required, please refer to the AT-UHD-EX-100CE-RX.

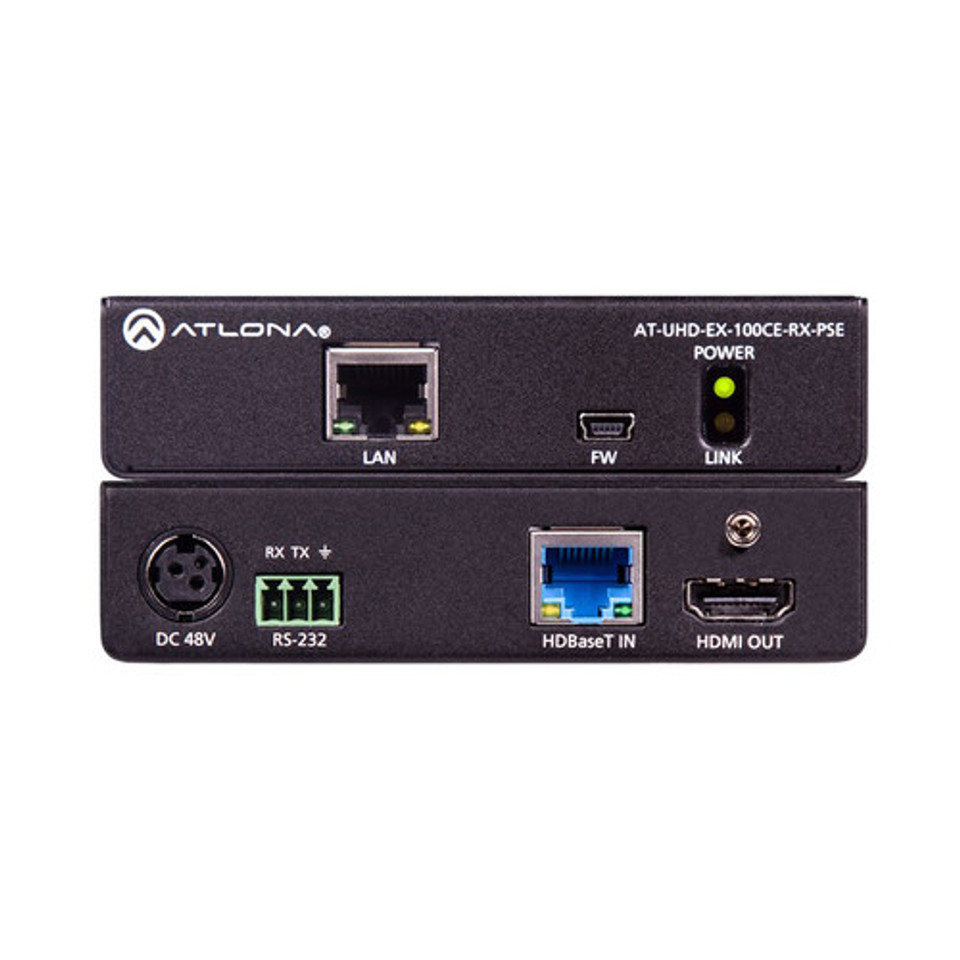

Rear Panel I/O Connectors
• Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter
• Saves installation time and eliminates clutter
Multi-Channel Audio Compliant
• Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
• Allows any multi-channel audio stream to be used within a professional audio system
• Allows any multi-channel audio stream to be used within a professional audio system
Field Updatable Firmware
• Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment
• Ensures long term system return on investment
Front Panel Power and Link Status LEDs
• LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting
• Provides easy setup and troubleshooting
Low-Profile 1" High Quarter-Rack Enclosure Width
• Easy installation into confined spaces behind displays and above projectors
• Keeps devices out of sight when placed in public spaces
• Keeps devices out of sight when placed in public spaces
Atlona AT-UHD-EX Specs
| Video Resolution | 4096 x 2160 @ 24/25/30/50/60 Hz 3840 x 2160 @ 24/25/30/50/60 Hz 2048 x 1080p 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i @ 50/59.94/60Hz 720p @ 50/59.94/60 Hz 576p, 576i, 480p, 480i |
| VESA | 2560 x 2048 / 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200 / 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 / 800 / 768 1152 x 768 1024 x 768 800 x 600 640 x 480 |
| Color Space | YCbCr, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Analog Audio Input | Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Bit Rate | Up to 24-bit |
| Distance | Cat5e/6 @ 4K: Up to 230' (70 m) Cat6a/7 @ 4K: Up to 328' (100 m) Cat5e/6 @ 1080p: Up to 328' (100 m) HDMI In/Out @ 4K: Up to 15' (5 m) HDMI In/Out @ 1080p: Up to 30' (10 m) |
| Signal | Bandwidth: 10.2 Gbps CEC: Pass-through HDCP: Supports up to 2.2 |
| Certification | Unit: CE, FCC Power Supply: CE, FCC, RoHS, cULus, RCM, CCC |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) Humidity: 20 to 90%, Non-condensing |
| Power | Consumption: 15.2 W (When paired with TX) Supply Input: 100~240 VAC, 50/60 Hz Supply Output: 48 VDC /0.83 A |
| Dimensions | Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm) With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm) |
| Weight | 0.9 lb (0.4 kg) |
Packaging Info
| Package Weight | 2.285 lb |
| Box Dimensions (LxWxH) | 11.15 x 7.4 x 3" |
