Screen Size (Diagonal) 55″
Resolution 1920 x 1080
Panel Type OLED
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Color Gamut 120% Rec. 709
Brightness 400 cd/m²
Viewing Angle (H x V) 178 x 178°
Aspect Ratio 16:9
Dynamic Contrast Ratio 150,000:1, 150,000:1 Response Time 1 ms (GtG)
Response Time 1 ms (GtG)
Refresh Rate 120 Hz
Primary Connectivity Location Control Console
Input Ports 1 x HDMI – Audio, Video (Rear) 1 x DisplayPort – Audio, Video (Rear)
Output Ports 1 x DisplayPort – Video (Rear) 1 x 1/8″ / 3.5 mm – Audio (Rear)
USB Ports 2 x USB 2.0 Type-A (Rear)
Ethernet Ports Rear: 2
Control RS-232C via 1/8″ / 3.5 mm Input RS-232C via 1/8″ / 3.5 mm Output IR via 1/8″ / 3.5 mm Input
Digital Media Slot None
TV Tuner No
Display Orientation Landscape, Portrait
HDCP Support Yes
Hardness Rating 2H
Operating System webOS 4.0
RAM 16 GB
Power Consumption Maximum: 280.0 W Typical: 250.0 W Standby: 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 80%
Certifications CE, CEC, FCC-A, as per Manufacturer
Glass Thickness 0.1″ / 3 mm
Bezel Thickness 7.9 mm (Right/Top/Left) 121.7 mm (Bottom)
Dimensions 48.2 x 31.9 x 0.2″ / 122.4 x 81.0 x 0.5 cm (Panel) 30.8 x 9.4 x 1.4″ / 78.2 x 23.9 x 3.6 cm (Signage Box)
Weight 25.6 lb / 11.6 kg 7.5 lb / 3.4 kg (Signage Box)
Package Weight 55 lb
Box Dimensions (LxWxH) 52.5 x 36 x 8″
Pro Idiom DRM

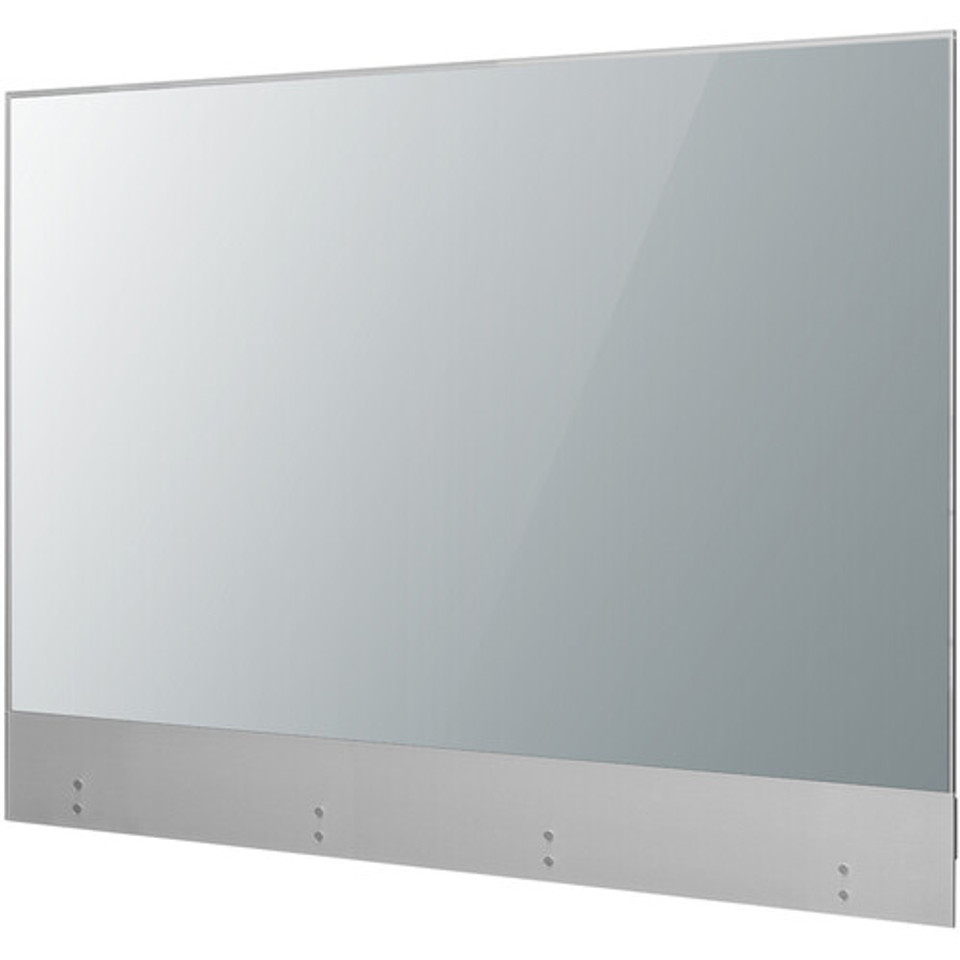

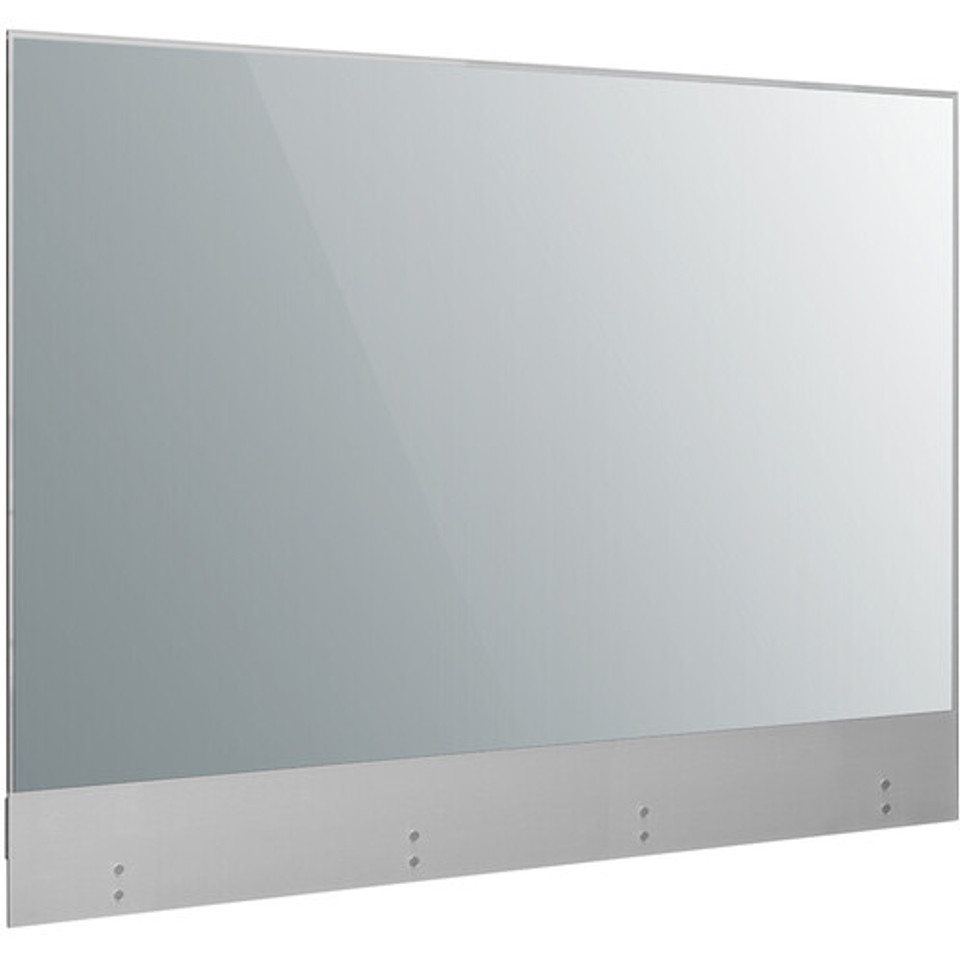

LG 55EW5G Overview Full HD (1920 x 1080) Native Resolution
LG 55EW5G Overview HDMI & DisplayPort Inputs
Ethernet Connectivity Connectivity via Included Console Digital Signage Capable
Ethernet Connectivity A New Level of See-Through View
Ethernet Connectivity LG transparent OLED digital signage lets viewers see spaces that previously would be hidden away behind a display, helping the display harmonize with its surroundings. Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive wow factor. High Transparency, transparent OLED signage seamlessly and naturally blends into its surroundings thanks to its high transparency. These see-through digital displays turn static signage areas into open and interactive spaces. Accurate and Vivid Colors, transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces with a variety of installation options via separately available hardware, complementing the venue in which it is installed. Additional Features Up to 30,000-hour typical lifetime
Ethernet Connectivity Featuring self-lighting pixels, the display maintains vivid colors and a high contrast ratio, even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings virtually seamlessly and naturally. Protective Tempered Glass
Ethernet Connectivity Touching a conventional display directly can cause damage or scratches, but the tempered front glass on this display protects against such external impacts. Expandable Design
18-hour/7-day operating time (with moving content only) Transparent bezel
Ethernet Connectivity Tempered, chemical-strengthened, shatter-proof protection glass with anti-reflective film
Ethernet Connectivity Temperature sensor Local content scheduling Group manager
Ethernet Connectivity USB plug & play Fail over RS-232C sync Local network sync
Ethernet Connectivity Video tag (4)
Ethernet Connectivity External input rotation Gapless playback Tile mode setting Setting data cloning SNMP ISM method Auto set ID Status mailing Control manager Crestron Inside PM mode Wake on LAN HDMI-CEC SI server setting
Ethernet Connectivity Pro Idiom DRM SuperSign CMS v3.0
Ethernet Connectivity SuperSign Control v1.7 / Control+ v1.9 SuperSign WB v3.7.15 SuperSign Media Editor v3.7 LG ConnectedCare LG 55EW5G Specs Display
Ethernet Connectivity Screen Size (Diagonal) 55″ Resolution 1920 x 1080 Panel Type OLED
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Ethernet Connectivity Color Gamut 120% Rec. 709 Brightness 400 cd/m² Viewing Angle (H x V) 178 x 178°
Ethernet Connectivity Aspect Ratio 16:9
1 x HDMI Audio, Video (Rear)
1 x DisplayPort Audio, Video (Rear), Video (Rear)
2 x USB 2.0 Type-A (Rear)
Ethernet Ports Rear 2 Control
Ethernet Ports RS-232C via 1/8″ / 3.5 mm Input, via 1/8″ / 3.5 mm Output IR via 1/8″ / 3.5 mm Input Digital Media Slot None General TV Tuner No Display Orientation Landscape, Portrait HDCP Support Yes Surface Hardness Rating 2H Hardware
Ethernet Ports Operating System webOS 4.0 RAM 16 GB Electrical
Power Consumption Maximum 280.0 W
Power Consumption Typical 250.0 W
Power Consumption Standby 0.5 W
Power Consumption AC Input Power 100 to 240 VAC, 50 / 60 Hz Environmental
Power Consumption Operating Temperature 32 to 104°F / 0 to 40°C
Power Consumption Operating Humidity 10 to 80% Certifications
Power Consumption CE, CEC, FCC-A, as per Manufacturer Physical Glass Thickness 0.1″ / 3 mm Bezel Thickness 7.9 mm (Right/Top/Left) 121.7 mm (Bottom) Dimensions 48.2 x 31.9 x 0.2″ / 122.4 x 81.0 x 0.5 cm (Panel) 30.8 x 9.4 x 1.4″ / 78.2 x 23.9 x 3.6 cm (Signage Box) Weight 25.6 lb / 11.6 kg 7.5 lb / 3.4 kg (Signage Box) Packaging Info Package Weight 55 lb
Power Consumption Box Dimensions (LxWxH) 52.5 x 36 x 8″
SKU 55EW5G-A
