Description
LG EP5G Overview

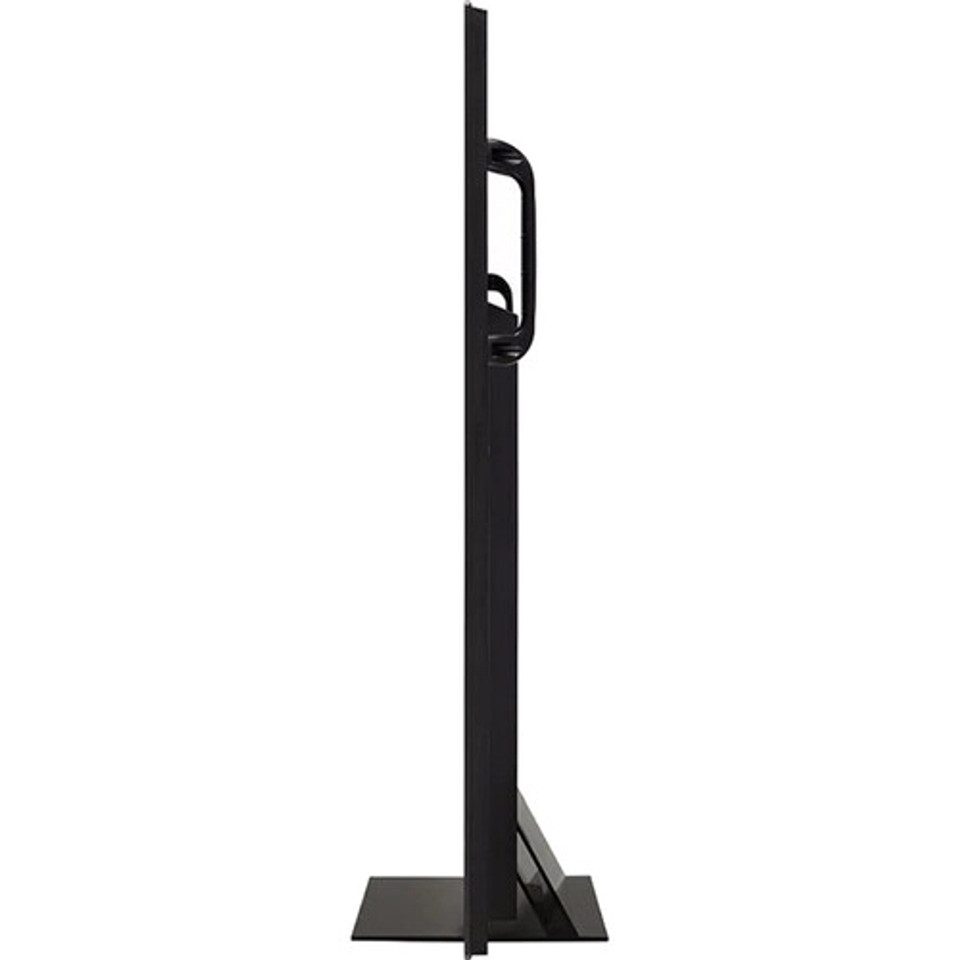

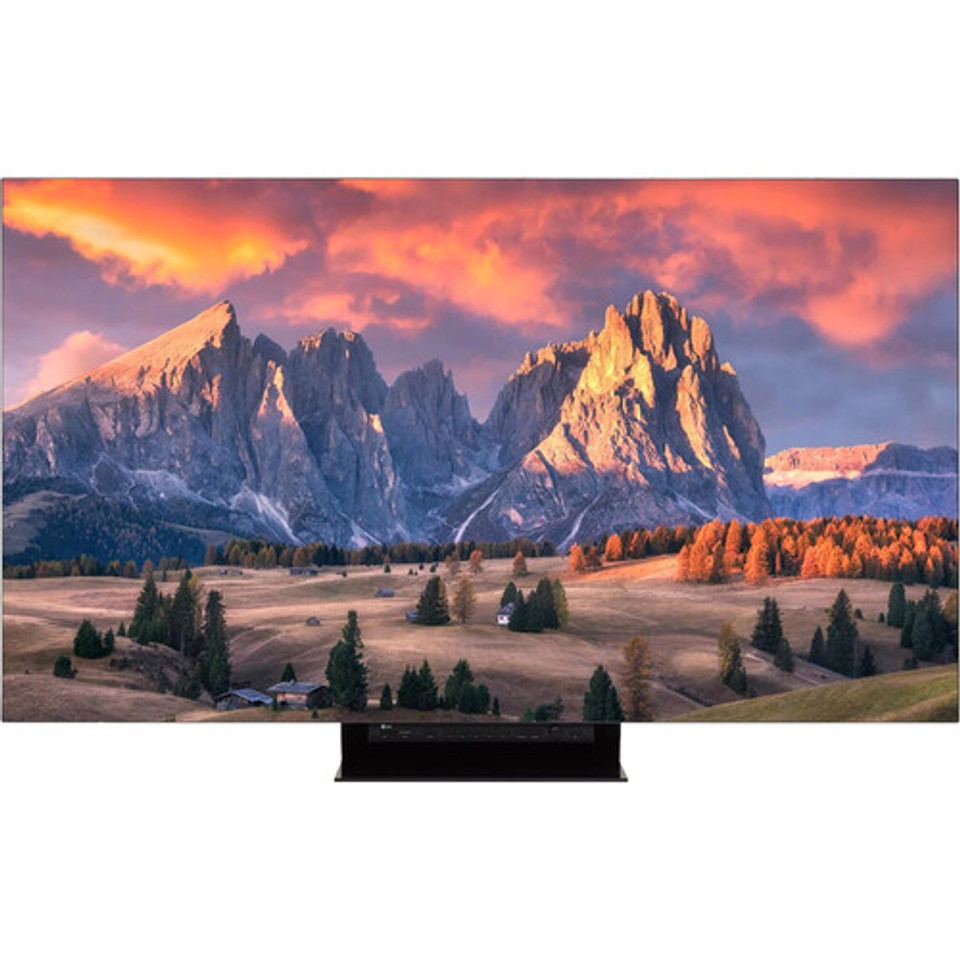

Designed for professional content creators and post-production editors, the 65EP5G 65" 4K Smart OLED Professional Monitor from LG delivers the reference performance necessary for mission-critical productions. The eye-popping 65" 4K OLED screen works in conjunction with LG's proprietary software for optimized image fidelity. Calman software works to give accurate and uniform color representation, while SuperSign dials in proper white balance. The hardware is programmable with 1D & 3D LUTs, and multiple color-accurate profiles can be created and rapidly swapped to utilize different calibrations.
Key Features
- 4K UHD 3840 x 2160 OLED Panel
- Calman for Accurate Color
- SuperSign for Proper White Balance
- Programmable Hardware with 1D & 3D LUTs
- Supports Multiple Color Profiles
- EYESAFE Certified
- External Control Panel
- webOS 5.0
- 2 x HDMI / 4 x SDI / 1 x USB
- Ethernet Connectivity
Control Panel
A bottom-mounted control panel makes it easy to access frequently used functions and profiles, as well as the monitor's settings and options. You can also choose on-screen features, such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.
Eye Protection
With deadlines rarely being generous enough for a leisurely pace, long hours editing content becomes the norm. This is why LG constructed the 65EP5G to meet EYESAFE standards and protect your eyes from damaging blue light.
Additional Features
- 2 x HDMI and 4 x SDI in/out with BNC
- SDI over IP via SFP+ case with an SFP module
- Genlock input for use in broadcast and virtual production
- webOS 5.0 built-in
- Ethernet connectivity
LG EP5G Specs
Display
| Panel Type | OLED |
| Display Size | 65.00" / 165.1 cm |
| Resolution | 3840 x 1260 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° |
| Touchscreen | No |
| Maximum Brightness | 1000 cd/m2 |
| Dynamic Contrast Ratio | 1,850,000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 68 ppi |
| Color Gamut | 98.5% DCI-P3 |
| Image Controls | Blue Only, Marker Color, Picture-in-Picture, Pixel Zoom, Screen Markers, Vectorscope, Waveform |
I/O
| Video | 2 x HDMI Type A Input 4 x BNC (12G-SDI/3G-SDI/6G-SDI/HD-SDI/SD-SDI) Input 4 x BNC (12G-SDI/3G-SDI/6G-SDI/HD-SDI/SD-SDI) Output |
| HDCP Support | Yes, Version 2.2 |
| Embedded Audio | SDI: 16-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Other I/O | 1 x RS-232 (1/8" / 3.5 mm) Input 1 x USB 2.0 (USB Type-A) Input 1 x GPI/Serial (8P8C) Input 1 x Serial (8P8C) Output 1 x 10/100 Mb/s Ethernet (RJ45) Input/Output |
| Expansion Slots | 1 x SFP+ Slot |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Gamma Curve | DCI-P3, HDR-HLG, ST2084, Standard |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 300 W (Typical) 470 W (Maximum) |
Mounting
| Mounting-Hole Pattern | 300 x 300 mm |
| Mounting | None |
Environmental
| Certifications | CB, FCC-A, NRTL, as per Manufacturer |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
General
| Dimensions | 56.9 x 33.6 x 2.2" / 1446.3 x 853.8 x 56.5 mm |
| Weight | 68.3 lb / 31 kg, Excluding Stand 77.2 lb / 35 kg, Including Stand |
