Samsung UD55E-B Overview
Advertise your product or business digitally with the Samsung UDE Series 55"-Class Full HD Commercial LED Display. It features 500 cd/m² of brightness with a 4000:1 contrast ratio to help enhance visibility in bright environments. You can chain multiple displays together to create a video wall, and the slim 3.5mm bezel-to-bezel width helps create a virtually seamless experience.
The display has a DisplayPort, DVI-D, VGA, and two HDMI inputs to provide a variety of connectivity options. For added convenience, the UDE-series includes a remote control and a VGA cable for instant connectivity.
Key Features
- Full HD (1920 x 1080) Native Resolution
- 500 cd/m² of Brightness
- 8ms Response Time
- 4000:1 Contrast Ratio
- Built-In Ethernet Connectivity
- DisplayPort, DVI-D, VGA, 2x HDMI Inputs
- DisplayPort Output for Daisy-Chaining
- Analog Audio Input and Output
- Landscape or Portrait Orientation

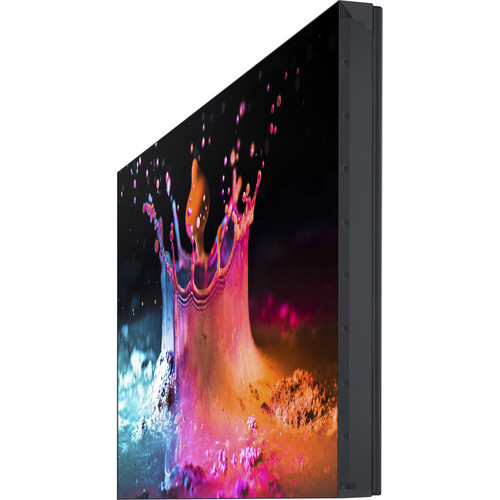

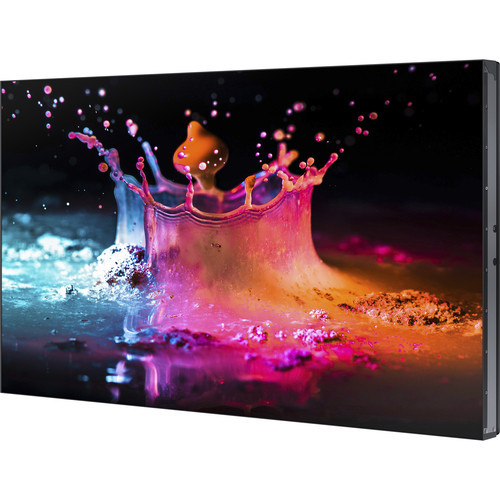

Slim Bezel Design
The slim bezel-to-bezel width of just 3.5mm helps create a virtually seamless video wall experience, making the UDE Series well suited to control rooms, the medical sector, conference rooms, broadcasting stations, transportation hubs, lobbies, and retail settings.
Factory Color Calibration
The UDE Series has been tuned in the factory for enhanced brightness, color temperature, and gamma, helping to ensure out-of-the-box uniformity between multiple displays, reducing calibration time.
DisplayPort 1.2 Out
DisplayPort 1.2 loop out allows you to share content across video walls and supports UHD resolution.
Direct-Lit LED Backlighting
Direct-lit LED technology with backlight dimming allows the UDE Series to achieve deep black levels, a high contrast ratio of 4000:1, and power savings of up to 30%.
UHD 4K Resolution
The UDE Series supports UHD resolution in video wall configurations of up to 25 displays when daisy-chained together for enhanced image clarity and detail.
Samsung UD55E-B Specs
Display
| Screen Size (Diagonal) | 55" |
| Resolution | 1920 x 1080 |
| Panel Type | LCD |
| Brightness | 500 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Direct LED |
Connectivity
| Primary Connectivity Location | Display |

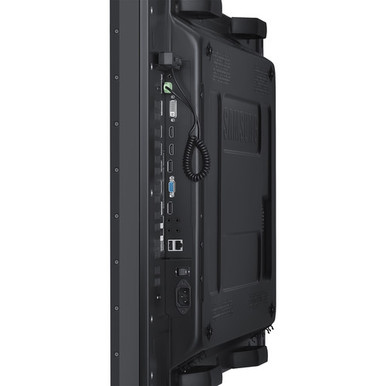

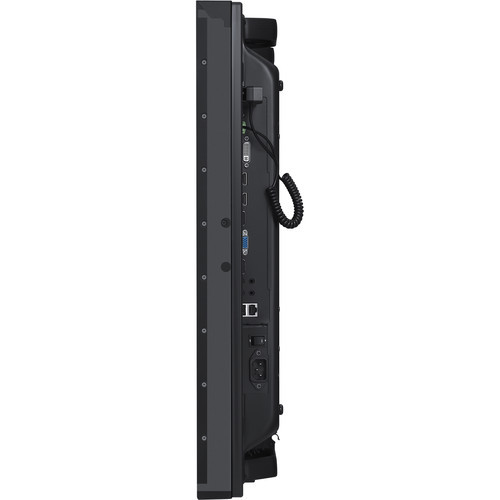

| Input Ports | 2 x HDMI Audio, Video 1 x DisplayPort 1.2 Video 1 x DVI-D Video 1 x 15-Pin VGA Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) Type-A (Rear) |
| Ethernet Ports | Rear: 1 |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes |
| Maximum Multiple Display Configuration | 15 x 15 |
| Ambient Light Sensor | Yes |
Surface
| Haze Level | 44% |
Electrical
| Power Consumption | Typical: 136.0 W Maximum: 198.0 W Standby: < 0.5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | ENERGY STAR, RoHS, as per Manufacturer |
Physical
| Wall Mounting | 600 x 400 mm |
| IR Sensor | Yes, Detachable |
| Bezel Thickness | 2.3 mm (Top) 2.3 mm (Left) 1.2 mm (Right) 1.2 mm (Bottom) |
| Dimensions | 47.8 x 26.9 x 3.8" / 121.4 x 68.3 x 9.7 cm |
| Weight | 51.3 lb / 23.27 kg |
Packaging Info
| Package Weight | 74 lb |
| Box Dimensions (LxWxH) | 55.5 x 33 x 31" |
1 Year Parts & Labor Manufacture Warranty
