Samsung UE46D Series 46" Full HD Commercial LED Monitor

Samsung UE46D Overview

Create a 1080p video wall in your business environment with the Samsung UE-D Series 46″ Full HD Commercial LED Monitor. This model is endowed with a 46″ edge-lit LED display and features a 1920 x 1080 native resolution for viewing detailed high-definition content. This monitor’s 420 nit brightness output and 4,000:1 contrast ratio showcases its ability to handle light and dark on-screen images. A 120 Hz refresh rate is incorporated to combat image blur and distortion on fast moving images.

The integrated media player allows you to configure your digital signage system without the need for an external media player. For high-speed Internet connectivity, this model has built-in Wi-Fi. A quad-core processor is also onboard for fast menu navigation and reliable performance.

This Samsung commercial monitor features VGA, DVI-D, DisplayPort, and an HDMI port for interfacing a variety of video sources. There’s even a USB port onboard for interfacing additional devices. Two 10W speakers are also built into the display for audio playback. As an ENERGY STAR qualified monitor, this display was designed with efficient power management in mind. While this monitor does not include a stand, it is compatible with optional 400 x 400 mm mounts for wall placement.

Key Features

• 1080p (1920 x 1080) Native Resolution
• 4000:1 Contrast Ratio
• 450 nits Brightness
• 120 Hz Refresh Rate
• Built-In Wi-Fi and AllShare Cast
• Built-In Media Player + Quad-Core CPU
• Expanded Daisy Chain Capability
• 1 x HDMI / 1 x DisplayPort / 1 x DVI-D
• Digital Signage Capable
• Built-In Stereo Speakers

Edge-Lit LED

Samsung’s edge-lit LED technology allows for a slimmer display and enables the UED Series to achieve deep blacks and a high contrast ratio of 4000:1. It also reduces power consumption and heat output.

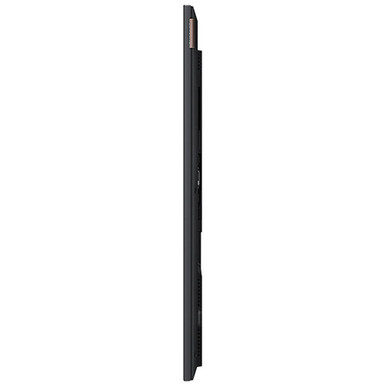

Slim 1.2″ Chassis

The thin chassis of the UE-D Series helps simplify installation while meeting ADA compliance requirements.

Slim 5.5mm Bezel

With a slim bezel-to-bezel width of 11mm, this model was designed to combine an expansive screen into a slim frame.

No PC Required

Display a range of content across your video wall without the need for an external media player using the powerful System-on-Chip (SoC) technology.

Expanded Daisy Chain Capability

The UED Series enables you to daisy chain multiple displays without the need for additional media players and/or PCs.

Built-In Wi-Fi and AllShare Cast

Enjoy the advantages of expanded connectivity to mobile devices and simple mirroring of content on a tablet to the display.

Hardware

• DisplayPort out for video lopping and video wall support
• External Control Capable via RS232C (In/Out) through stereo jack and Ethernet
• Wi-Fi Module Embedded
• SD Card Slot
• Super Clear Coating
• Temperature Sensor
• Pivot Display
• Clock Battery (80-hours Clock Keeping)
• Built in Speakers (2 x 10W)
• Supports Optional Samsung Stands and Mounts
• Supports Optional External Media Player

Software

• Magic Clone (to USB)
• Auto Source Switching & Recovery
• Lamp Error Detection
• RS232C / RJ45 MDC, Plug and Play (DDC2B)
• PIP / PBP
• Image Rotation
• Button Lock
• DP 1.2 Digital Daisy Chain (Supporting 2×2 UHD Resolution, HDCP Support)
• Smart Scheduling
• Smart Firmware Update
• Built In MagicInfo Player S2
• Video Wall (15×15)
• Firmware Update by Network
• LFD New Home Screen
• PC-less Video Wall
• Predefined Template for Vertical Usage
• Multi Channel
• Mobile Control
• Event Schedule
• Backup Player

Samsung UE46D Specs

Display

Screen Size	46″ (116.8 cm)
Panel Technology	Edge-Lit LED
Refresh Rate	120 Hz
Resolution	1920 x 1080
Aspect Ratio	16:9
Brightness	450 nits
Contrast Ratio	4000:1
Orientation	Landscape / Portrait
Response Time	8 ms (G-to-G)
Media Player	Type: Internal CPU: ARM Cortex-A9 1 GHz quad-core RAM: 1.5 GB DDR3 Storage: 8GB FDM Connectivity: USB 2.0 Operating System: Linux
Bezel Width	0.2″ (5.5 mm)

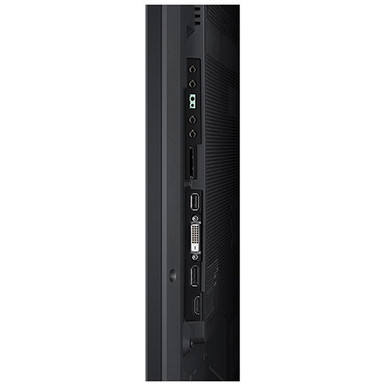

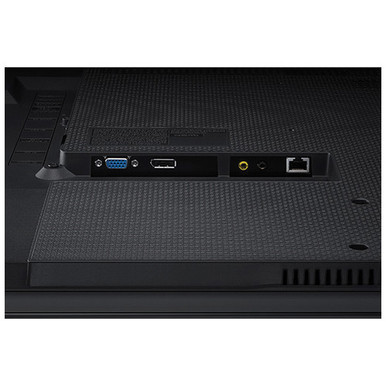

Connectivity

Input	1 x HDMI 1 x DisplayPort 1.2 1 x VGA (D-Sub 15 Pin) 1 x DVI-D 1 x Video (Composite / Component) 1 x 3.5 mm Audio 1 x RS232C 1 x IR / Ambient Sensor
Output	1 x 3.5 mm Audio 1 x DisplayPort 1.2 1 x RS232C
Other Connectors	1 x RJ45 1 x USB 1 x Power
Media Card Slots	1 x SD

General

Speakers	2 x 10 W
Power Requirements	100 – 240 VAC (+/- 10%), 50 / 60 Hz
Power Consumption	Maximum: 115 W Typical: 132 W Standby: <0.5 W
Environmental	Operating Temperature: 32 to 104°F (0 to 40°C) Operating Humidity: 10 – 80 %
VESA Compatibility	400 x 400 mm
Compliances	Emission Standard: EMC ENERGY STAR 6.0 Compliant RoHS Compliant
Dimensions	40.6 x 23.0 x 1.2″ (103.1 x 58.4 x 3.0 cm)
Weight	22 lb (10 kg)

Packaging Info

Package Weight	27 lb
Box Dimensions (LxWxH)	43.3 x 26.3 x 5.3″
