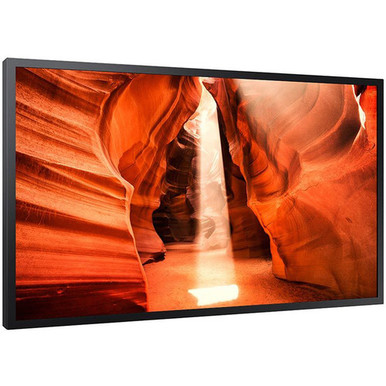

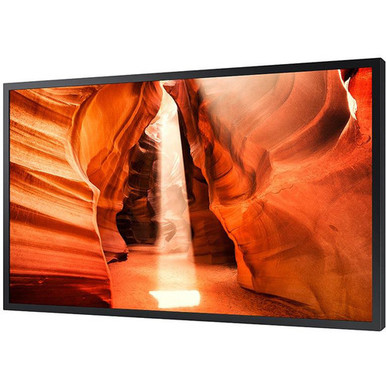

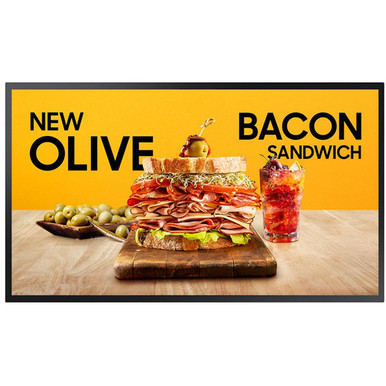

Samsung OM46N 46" Class OMN Series LED Display

Promote content in any storefront window

Samsung’s OMN series was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

Foster brilliant presentation for all

Featuring 4,000nit brightness and a high contrast ratio of 5,000:1, the OMN Series’ display remains bright and clear, delivering an uncompromised picture that will capture the attention of potential customers – even in direct sunlight.

Modernize space with slim design

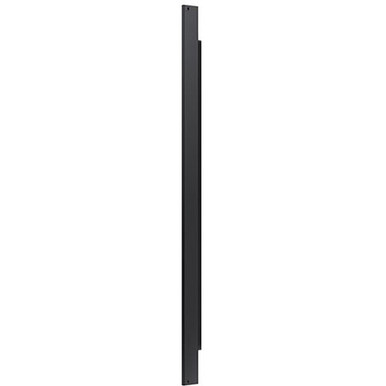

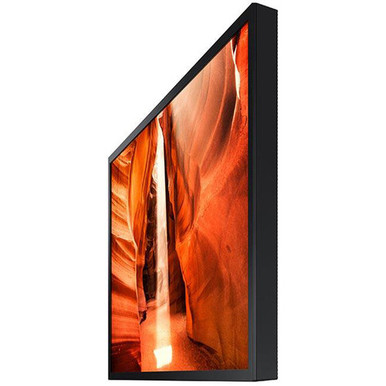

The OMN Series delivers an immersive content with a remarkably slim 54.5mm depth. Its compact size makes the display a natural extension of the store, as opposed to an addition that ties up valuable space.

Streamline content management

SThe OMN Series’ embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allowing for easy content management and ensuring seamless content transition and playback.

Deliver vibrant content with efficiency

The OMN Series addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.

Clutter-Free Configuration

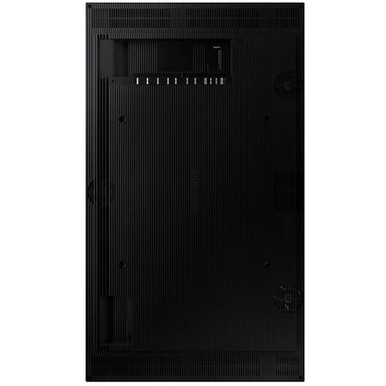

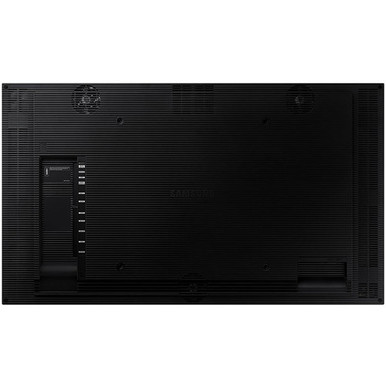

Cable guide and embedded Wi-Fi provide clean, organized look and allow for content and firmware updates without the need for additional messy cables.

Award-winning digital signage solution

The Samsung OMN and OMN-D Series has been recognized by leading digital signage industry awards. The displays received the AV Display Innovation of the Year from the AV News Awards and Best All-Weather Display from the TNT Awards for smart design, flawless clarity and brightness.

Specifications:

Panel

• Diagonal Size46″
• TypeE-LED BLU
• Resolution1920*1080 (Full HD)
• Pixel Pitch(mm)0.530 x 0.530
• Active Display Area(mm)1018.08(H) x 572.67(V)
• Brightness(Typ.)4000 nit
• Contrast Ratio5000:1
• Viewing Angle(H/V)178/178
• Response Time(G-to-G)6ms
• Display Colors8 bit – 16.7M
• Color Gamut72%
• Operation Hour24/7
• Haze0%

Display

• Dynamic C/R100,000:1
• H-Scanning Frequency30 ~ 135kHz (DP), 15 ~ 135kHz (HDMI)
• V-Scanning Frequency30 ~ 75Hz (DP), 24 ~ 75Hz (HDMI)
• Maximum Pixel Frequency533.25MHz (DP), 594MHz (HDMI)

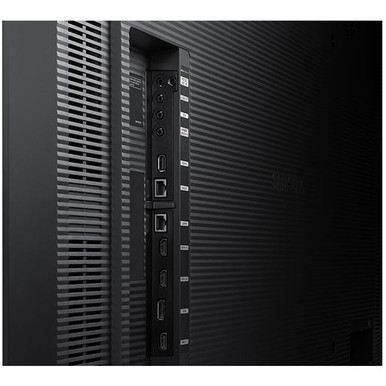

Connectivity

Input

• RGBDisplay Port 1.2 (1)
• VideoHDMI2.0 (2)
• HDCPHDCP 2.2
• USBUSB 2.0 (1)

Output

• RGBHDMI 2.0
• VideoYes
• AudioStereo Mini Jack

• External ControlRS232C (In/Out), RJ45 (In/Out)
• External SensorDetachable Type (IR, Ambient)

Power

• TypeInternal
• Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

• Max[W/h]350
• Typical[W/h]W/W(EU) : 210US/KOR/Etc : 330 Etc: CHINA, TAIWAN, BRA, CIS
• BTU(Max)1194
• Sleep modeless than 0.5W
• Off modeless than 0.5W

Mechanical Specification

Dimension (mm)

• Set1062 x 616.6 x 54.5 mm
• Package1189 x 757 x 158 mm

Weight (kg)

• Set18.2kg
• Package23kg

• VESA Mount (mm)400 x 400 mm
• Bezel Width (mm)19.9 (even)

Operation

• Operating Temperature 0~ 30 (Direct Sunlight) 0~ 40 (w/o Direct Sunlight)
• Humidity 10 % ~ 80 %

Feature

• Key FeaturesHigh brightness Semi-Outdoor Slim & Clean back designBuilt-in MagicInfo Player S6, SSSP 6.0
• OrientationN/A
• Remote ControlN/A

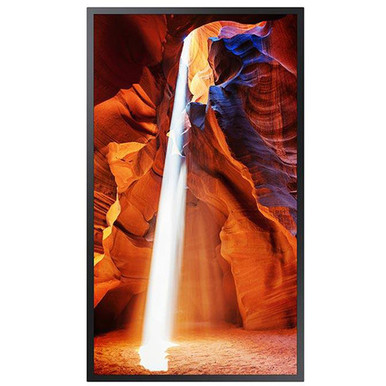

• Special Features IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock, WiFi Module Embedded

Internal Player

• ProcessorCortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed1.7GHz
• Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

• GraphicsGraphic resolution : 1920×1080 Output resolution : up to 3840×2160 (Scale up from graphic processing result.) – Supports OpenGL ES
• Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
• MultimediaVideo Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder – AC3 (DD), MPEG
• IO PortsUSB 2.0

• Operating SystemTizen 4.0 (VDLinux)

Certification

• SafetyCB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
• EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

• IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient
