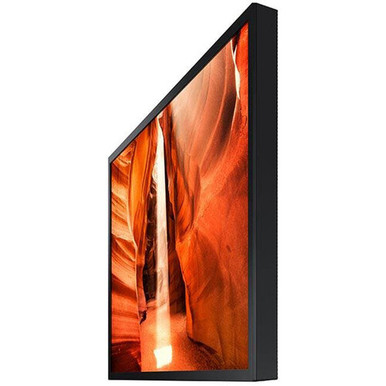

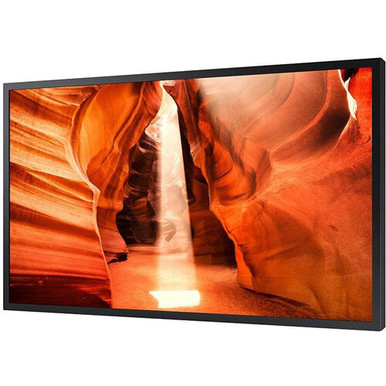

Samsung OM55N Overview

Samsung’s OMN Series was designed with a storefront window display in mind. It projects clear, bright images so you can attract and engage your audience. The display has a slim design and is compatible with virtually any store window. Plus, an embedded software solution offers operational efficiency and content management, helping you to manage your displays effortlessly.

Key Features

• Full HD (1920 x 1080) Native Resolution
• 4000 cd/m² Brightness Ideal for Windows
• 5000:1 Contrast Ratio
• MagicINFO Player S6

Specifications:

Panel

• Diagonal Size55″
• TypeE-LED BLU
• Resolution1920*1080 (Full HD)
• Pixel Pitch(mm)0.530 x 0.530
• Active Display Area(mm)1209.6(H) x 680.4(V)
• Brightness(Typ.)4000 nit
• Contrast Ratio5000:1
• Viewing Angle(H/V)178/178
• Response Time(G-to-G)6ms
• Display Colors8 bit – 16.7M
• Color Gamut72%
• Operation Hour24/7
• Haze0%

Display

• Dynamic C/R100,000:1
• H-Scanning Frequency30 ~ 135kHz (DP), 15 ~ 135kHz (HDMI)
• V-Scanning Frequency30 ~ 75Hz (DP), 24 ~ 75Hz (HDMI)
• Maximum Pixel Frequency533.25MHz (DP), 594MHz (HDMI)

Connectivity

Input

• RGBDisplay Port 1.2 (1)
• VideoHDMI2.0 (2)
• HDCPHDCP 2.2
• USBUSB 2.0 (1)

Output

• RGBHDMI 2.0
• VideoYes
• AudioStereo Mini Jack

• External ControlRS232C (In/Out), RJ45 (In/Out)
• External SensorDetachable Type (IR, Ambient)

Power

• TypeInternal
• Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

• Max[W/h]450
• Typical[W/h]W/W(EU) : 276 US/KOR/Etc : 420 Etc: CHINA, TAIWAN, BRA, CIS
• BTU(Max)1536
• Sleep modeless than 0.5W
• Off modeless than 0.5W

Mechanical Specification

Dimension (mm)

• Set1254.2 x 725 x 54.5 mm
• Package1420 x 879 x 178

Weight (kg)

• Set22.1kg
• Package28kg

• VESA Mount (mm)400 x 400 mm
• Bezel Width (mm)19.9 (even)

Operation

• Operating Temperature 0~ 30 (Direct Sunlight) 0~ 40 (w/o Direct Sunlight)
• Humidity 10 % ~ 80 %

Feature

• Key FeaturesHigh brightness Semi-Outdoor Slim & Clean back designBuilt-in MagicInfo Player S6, SSSP 6.0
• OrientationN/A
• Remote ControlN/A

• Special Features IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock, WiFi Module Embedded

Internal Player

• ProcessorCortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed1.7GHz
• Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

• GraphicsGraphic resolution : 1920×1080 Output resolution : up to 3840×2160 (Scale up from graphic processing result.) – Supports OpenGL ES
• Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
• MultimediaVideo Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder – AC3 (DD), MPEG
• IO PortsUSB 2.0

• Operating SystemTizen 4.0 (VDLinux)

Certification

• SafetyCB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
• EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

• IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor

Optional

• StandN/A
• Mount WMN-46VD
• SpecialtyN/A

Media Player

Media Player

• Media PlayerSBB(Slide In), Signage player box
