Screen Size (Diagonal) 46″
Resolution 1920 x 1080
Panel Type VA LCD
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Brightness 2500 cd/m
Viewing Angle (H x V) 178 x 178
Screen Area 40 x 22.5″ / 101.6 x 57.2 cm
Contrast Ratio 5000:1
Dynamic Contrast Ratio 100,000:1, 100,000:1 Response Time 6 ms Horizontal Frequency 108 to 139.5 kHz Vertical Frequency 96 to 123 Hz Dot Pitch 0.53 x 0.53 mm Pixel Clock Frequency 297 MHz Connectivity
Response Time 6 ms
Horizontal Frequency 108 to 139.5 kHz
Vertical Frequency 96 to 123 Hz
Dot Pitch 0.53 x 0.53 mm
Pixel Clock Frequency 297 MHz

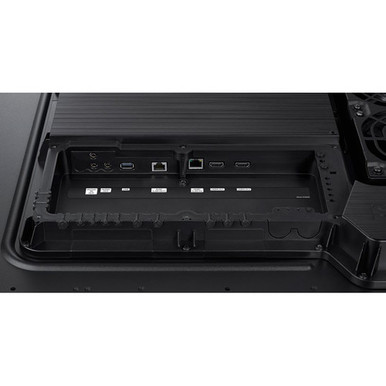

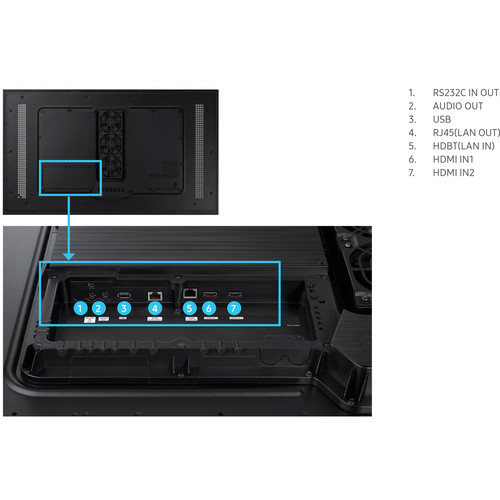

Input Ports 2 x HDMI 1.4 Audio, Video
Output Ports 1 x 1/8″ / 3.5 mm Audio
USB Ports 1 x USB 2.0
Ethernet Ports 1
HDCP Support Yes, Version 2.2
Haze Level 0%
Processing DTS
Operating System Tizen 2.4
Storage 8 GB
RAM 2.5 GB DDR3 1866 MHz
Supported Video File Types H.263, H.264/AVC, MPEG, MPEG2, MPEG4, VP8, VP9
Supported Audio File Types AC3
Supported Photo File Types JPEG, PNG
Power Consumption Maximum: 468.0 W Typical: 410.0 W Standby: 0.5 W
Operating Temperature -22 to 122 F / -30 to 50 C
Operating Humidity 10 to 80%
Material of Construction 5T Glass
Bezel Thickness 24.9 mm (Bottom) 24.9 mm (Right) 24.9 mm (Top) 24.9 mm (Left)
Duty Cycle 24 Hours / 7 Days
Dimensions 42.0 x 24.5 x 3.3″ / 1069.0 x 623.6 x 85.0 mm
Weight 89.2 lb / 40.5 kg
Package Weight 45 lb
Box Dimensions (LxWxH) 45 x 27.75 x 7.75″
2500 cd/m 2 brightness rating and 5000 1 contrast ratio

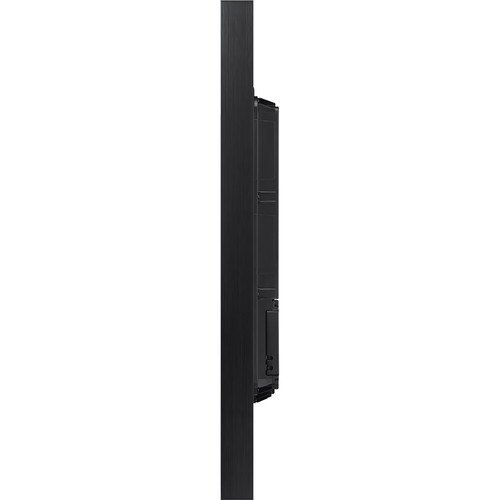

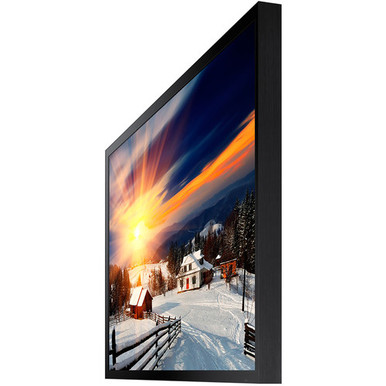

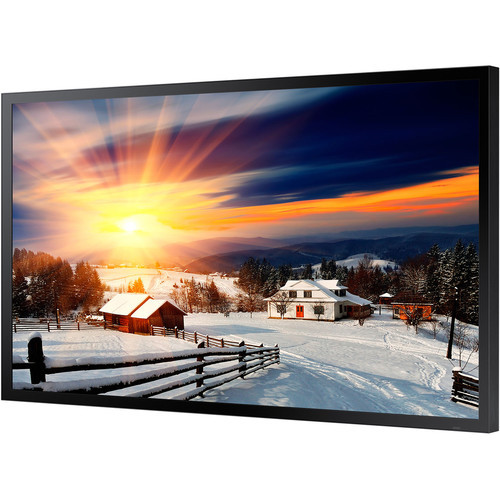

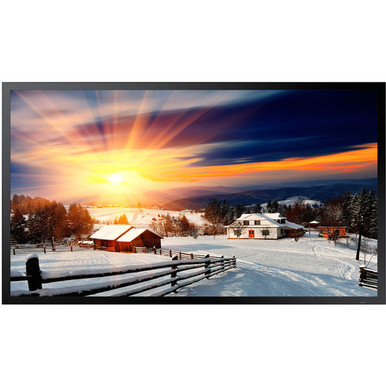

Samsung OH46F Overview The OH46F 46″ Full HD Outdoor Signage Display from Samsung features an integrated power box that condenses operational components and accommodates a slim 85mm frame. It offers a maximum resolution of 1920 x 1080 and brightness rating of 2500 cd/m 2 . The display comes with an embedded network hub and Wi-Fi functionality for improved connectivity.
Samsung OH46F Overview The tempered, IK10-certified Magic Glass (5mm) protects the display from a range of external and environmental factors. In case the protective glass breaks, a strategically-placed gap between the Magic Glass and LCD panel prevents significant damage and enables efficient repair. The display features a filter-less self-cooling system and improved thermal control functionality to minimize the overall power consumption.
2500 cd/m 2 brightness rating and 5000:1 contrast ratio
Samsung OH46F Overview Auto Brightness sensor
Samsung OH46F Overview Anti-reflection glass for improved visibility under direct sunlight
Samsung OH46F Overview Enhanced content management solution via SSSP 4.0 powered by TIZEN
MagicInfo S4 powered by Tizen helps in convenient content creation, scheduling, and deployment
Samsung OH46F Overview Cortex-A12 1.3 GHz Quad Core CPU
Samsung OH46F Overview Conforms to IK10 vandal-resistant and IP56 ingress protection standards

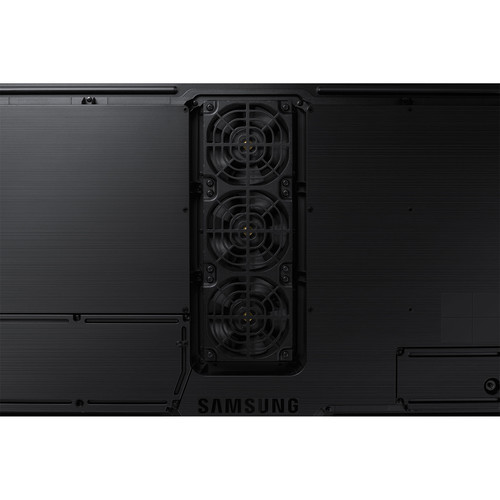

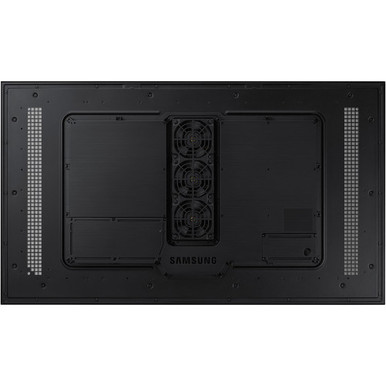

Integrated self-cooling system allows the display to be operated in temperature ranges from -22 to 122 F
Samsung OH46F Overview Protection glass (IK-10 Level, anti-graffiti, infrared reduce)
Samsung OH46F Overview Ambient brightness sensor
Samsung OH46F Overview Temperature sensor RJ45 MDC
Samsung OH46F Overview Auto source switching and recovery
Samsung OH46F Overview Clock battery (80 hours clock keeping) Kensington lock slot Heat exchanger VESA compliant Samsung OH46F Specs Display
Samsung OH46F Overview Screen Size (Diagonal) 46″ Resolution 1920 x 1080 Panel Type VA LCD
Bit Depth / Color Support 8-Bit (16.7 Million Colors) Brightness 2500 cd/m Viewing Angle (H x V) 178 x 178 Screen Area 40 x 22.5″ / 101.6 x 57.2 cm
Samsung OH46F Overview Contrast Ratio 5000:1
2 x HDMI 1.4 Audio, Video
Input Ports Output Ports 1 x 1/8″ / 3.5 mm Audio
1 x USB 2.0
USB Ports Ethernet Ports 1 General HDCP Support Yes, Version 2.2 Surface Haze Level 0% Audio Processing DTS Hardware
USB Ports Operating System Tizen 2.4 Storage 8 GB RAM 2.5 GB DDR3 1866 MHz Convenience
Supported Video File Types Supported Audio File Types AC3 Supported Photo File Types JPEG, PNG Electrical
Power Consumption Maximum 468.0 W
Power Consumption Typical 410.0 W
Power Consumption Standby 0.5 W Environmental
Power Consumption Operating Temperature -22 to 122 F / -30 to 50 C
Power Consumption Operating Humidity 10 to 80% Physical Material of Construction 5T Glass Bezel Thickness 24.9 mm (Bottom) 24.9 mm (Right) 24.9 mm (Top) 24.9 mm (Left) Duty Cycle 24 Hours / 7 Days Dimensions 42.0 x 24.5 x 3.3″ / 1069.0 x 623.6 x 85.0 mm Weight 89.2 lb / 40.5 kg Packaging Info Package Weight 45 lb
Power Consumption Box Dimensions (LxWxH) 45 x 27.75 x 7.75″
SKU OH46F
Brand Samsung
MPN OH46F
GTIN 00880608849160, 880608849160
UPC 880608849160
