Network Remote Control with LEDs-Dante-White

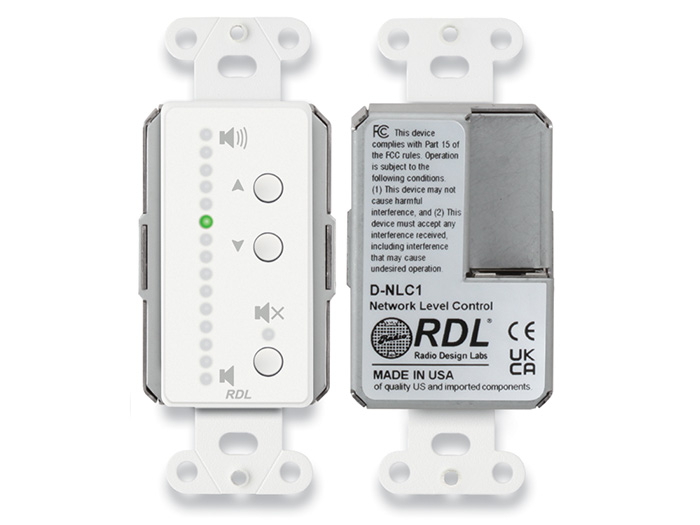

The RDL D-NLC1 is a white Dante network remote control that places level adjustment, mute control, and clear LED status feedback at an installed wall location. Its front panel provides 15 level indicators plus a mute indicator, while Ethernet Link and Activity indicators are positioned on the rear panel. Three pushbuttons provide two-way level adjustment and mute operation. The controller connects through an RJ45 network port at 100 Mbps and is powered by PoE Class 0 under IEEE 802.3af.

Ideal Use Cases

The D-NLC1 is suited to installed Dante systems that require a dedicated wall-mounted point for level and mute operation. Its focused control layout is appropriate when users need immediate access to essential adjustments without a larger control surface. The 15 front-panel level indicators provide a detailed visual level reference, while the separate mute indicator communicates mute status directly at the control position. A white finish supports installations where that color is preferred.

Why Choose This Model

This model combines physical controls, front-panel status feedback, Ethernet connectivity, and PoE power in a compact form. Two level pushbuttons keep adjustment straightforward, and the dedicated mute pushbutton separates muting from level changes. The indicator arrangement accounts for 18 total indicators: 15 front-panel level indicators, one front-panel mute indicator, and two rear-panel Ethernet indicators. Link and Activity feedback at the network connector also gives installers direct visibility into the Ethernet connection during setup and service.

Installation and Integration

The D-NLC1 mounts in a standard US electrical box. A cover plate is available separately, so it should be selected independently when planning the completed installation. The unit measures 1.8 inches wide by 4.11 inches high by 1.5 inches deep, equivalent to 4.57 by 10.44 by 3.81 centimeters. These dimensions can be used to evaluate the electrical box and available installation depth.

Network connection is provided by an RJ45 connector with Link and Activity indicators. The specified transmission rate is 100 Mbps. Power is supplied through PoE Class 0 in accordance with IEEE 802.3af, allowing the network and power requirements to be planned around the stated PoE standard. The specified ambient operating range is 0°C to 40°C, with 30°C identified as the maximum recommended temperature.

Performance Highlights

The control interface centers on three pushbuttons: two for level adjustment and one for mute. Fifteen level indicators provide graduated visual feedback across the front panel, complemented by the dedicated mute indicator. On the rear, Ethernet Link and Activity indicators support confirmation of network status. This division keeps operating feedback at the user-facing panel while placing connection diagnostics beside the RJ45 port. The 100 Mbps transmission specification and IEEE 802.3af PoE requirement provide concrete parameters for network planning.

What Makes It Different

The D-NLC1 brings together a high indicator count and a deliberately limited set of physical controls. Rather than presenting unrelated functions, its interface is organized specifically around level and mute operation. The 15-position level display offers more than a simple on-or-off indication, while the dedicated mute status remains independently visible. Rear-panel Link and Activity indicators add another layer of information for installation and troubleshooting. Its standard US electrical-box mounting format also places these controls in a familiar installed form factor.

Final Assessment

The RDL D-NLC1 is a focused choice for a white, wall-mounted Dante network control point requiring level adjustment, mute operation, LED feedback, and PoE connectivity. Its selection can be evaluated against clearly stated requirements: a 100 Mbps RJ45 connection, IEEE 802.3af PoE Class 0 power, standard US electrical-box mounting, and operation within the specified ambient temperature range. Installers should account for the separately available cover plate when preparing the finished installation.
