Network Remote Control with LEDs-Dante-Stainless Steel

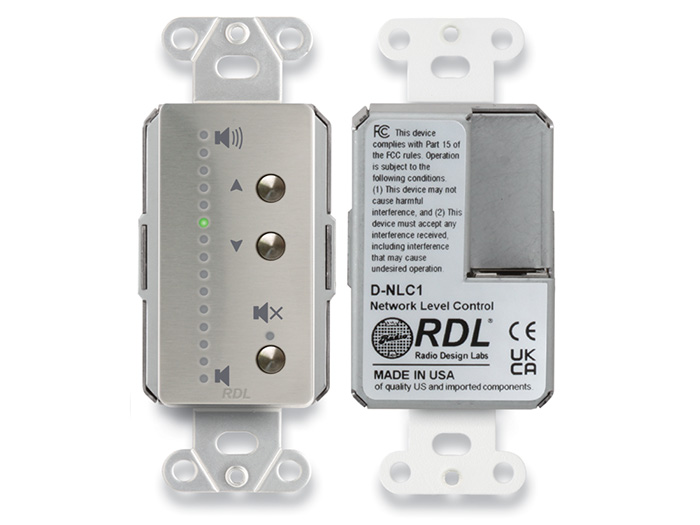

The RDL DS-NLC1 is a stainless-steel Dante network remote control that provides local level and mute operation through a focused wall-mounted interface. Three pushbuttons handle two level-adjustment functions and mute, while 18 indicators report Ethernet and control status. Network communication uses a 100 Mbps RJ45 connection, and the unit requires PoE Class 0 power conforming to IEEE 802.3af.

Ideal Use Cases

The DS-NLC1 is suited to fixed Dante network installations that require a dedicated local control point for level adjustment and muting. Its 15 front-panel level indicators give users a visible level reference, while the separate mute indicator shows the mute state. Because the unit mounts in a standard US electrical box, it is appropriate for installations where the controller needs to be integrated into a wall or another compatible electrical-box location. The stainless-steel construction identified for this model also distinguishes it for projects specifically requiring that finish.

Why Choose This Model

This model concentrates on frequently used level and mute functions without presenting an extensive control surface. Its three pushbuttons consist of two level-adjustment controls and one mute control. The 18 indicators are divided between two rear-panel Ethernet indicators, 15 front-panel level indicators, and one mute indicator. This arrangement provides user-facing level and mute information while retaining Link and Activity status at the network connection. A specified transmission rate of 100 Mbps provides a clear requirement for network planning and equipment selection.

Installation and Integration

The DS-NLC1 measures 1.8 inches wide, 4.11 inches high, and 1.5 inches deep, with metric dimensions of 4.57 by 10.44 by 3.81 centimeters. It mounts in a standard US electrical box. A cover plate is available separately, so the appropriate plate should be accounted for when assembling the installation.

Network access is provided through an RJ45 connector equipped with Link and Activity indicators. The stated power requirement is PoE Class 0 under IEEE 802.3af, allowing the required network power source to be identified before deployment. The ambient operating range is 0° C to 40° C, although 30° C is listed as the maximum recommended temperature. These limits should be considered when selecting the mounting location and surrounding environment.

Performance Highlights

• 100 Mbps network transmission rate.
• RJ45 network connector with rear-panel Link and Activity indicators.
• Fifteen front-panel indicators dedicated to level display.
• Separate mute indicator for visible mute-status reporting.
• Two pushbuttons for level adjustment and one pushbutton for mute.
• PoE Class 0 power requirement compliant with IEEE 802.3af.

Together, these specifications provide a direct operating interface with separate visual feedback for network activity, level, and mute status. The controls and indicators are clearly allocated, making it straightforward to confirm whether the required functions match a proposed system design.

What Makes It Different

The DS-NLC1 combines a Dante network remote-control designation, stainless-steel format, PoE operation, and standard US electrical-box mounting in one compact model. Its indicator count is unusually specific: two Ethernet indicators on the rear panel, 15 level indicators on the front panel, and one mute indicator. That separation allows network status to remain available during installation or service while level and mute information remains positioned for the operator. Detailed dimensional, environmental, networking, and mounting data also make the model easier to evaluate against an installation specification.

Final Assessment

The RDL DS-NLC1 is a targeted choice for installations requiring a stainless-steel Dante network controller with local level adjustment, mute control, and extensive LED status indication. Its 100 Mbps RJ45 interface, IEEE 802.3af PoE Class 0 requirement, and standard US electrical-box mounting define the key integration requirements. Before ordering, confirm the available PoE infrastructure, electrical-box dimensions, operating environment, and separately available cover plate. The unit ships in a cardboard box measuring 3.625 by 4.625 by 2.125 inches, with a listed shipping weight of 0.5 pounds.
