Consumer Input Jacks-Stereo

Ideal Use Cases

The RDL DS-CIJ3D is a stereo input interface for connecting consumer-style unbalanced sources to equipment that expects a balanced stereo line-level feed. Its input connections accommodate left and right RCA phono plugs plus a 3.5 mm stereo mini-plug, allowing either stereo connector format to serve the installed system. It is well suited to applications that need accessible source connections at the point of use, particularly where unbalanced line inputs may introduce hum. The line-level output is designed to feed a 10 kΩ equipment input.

Why Choose This Model

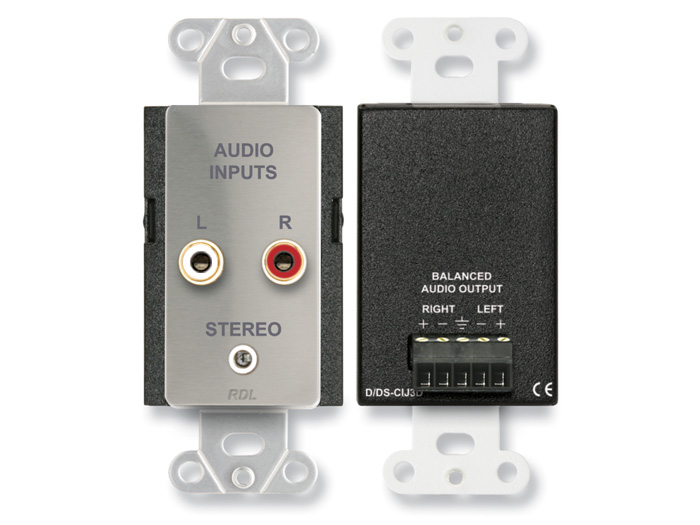

The DS-CIJ3D combines three input connections, signal conversion, isolation, and a detachable output connector in one stainless-steel model. The left and right RCA phono jacks use gold contacts, while the stereo mini-jack accepts a 3.5 mm connection. It converts unbalanced stereo inputs to balanced stereo outputs without adding gain. Transformer isolation is provided for the unbalanced line inputs, together with hum cancellation. These functions make the model useful when connector compatibility and isolation must be handled between a consumer source and balanced equipment.

Installation and Integration

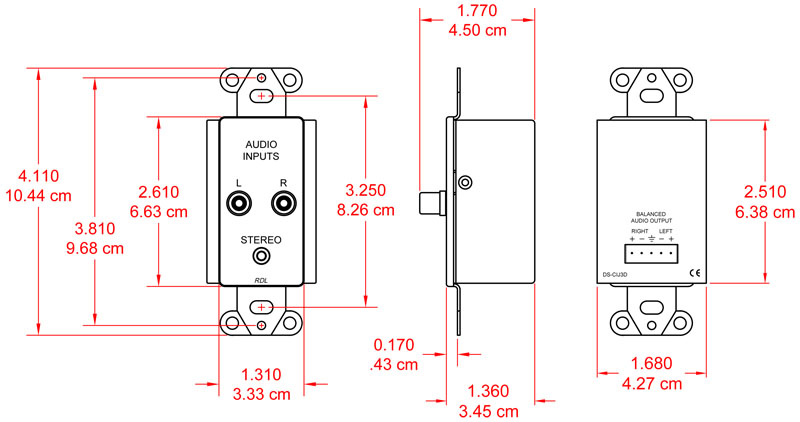

System-side output connections are made through a detachable terminal block. This connector arrangement permits the terminal block to be detached while conductors are being connected or serviced. The unit measures 4.13 inches high by 1.7 inches wide by 2.15 inches deep, equivalent to 10.49 by 4.32 by 5.47 centimeters. The mounting box must provide minimum dimensions of 1.80 inches in width and 1.75 inches in depth, or 4.57 by 4.45 centimeters. These measurements should be checked against the intended mounting location before installation. The specified ambient operating environment is 0 degrees C to 55 degrees C.

Performance Highlights

At line level, the DS-CIJ3D has a specified frequency response of 50 Hz to 20 kHz within plus or minus 1 dB. Its extended specification is 30 Hz to 20 kHz within plus or minus 2 dB. Unbalanced-to-balanced conversion is performed without gain, so the interface does not provide level amplification. Transformer isolation addresses the unbalanced line inputs, while the stated hum-cancellation function helps manage hum on those inputs. The resulting line-level stereo output is intended for equipment with a 10 kΩ input and is presented on the detachable terminal block.

What Makes It Different

This model brings both stereo RCA and 3.5 mm input options together with transformer-isolated conversion to balanced stereo output. The combination reduces the need to choose a single consumer connector format at the input point. Its no-gain design also distinguishes its role clearly: it handles connection, balancing, isolation, and hum cancellation rather than signal amplification. The DS-CIJ3D is the stainless-steel version; RDL also identifies the D-CIJ3D as the corresponding white/gray version.

Final Assessment

The RDL DS-CIJ3D is a focused interface for integrating unbalanced stereo sources with balanced line-level equipment. Its left and right gold-contact RCA jacks, 3.5 mm stereo mini-jack, transformer isolation, hum cancellation, and detachable terminal-block output address the essential parts of that connection path. Installation planning should account for its physical dimensions, minimum mounting-box requirements, operating environment, and the target equipment’s 10 kΩ input. For systems that require a stainless-steel model and conversion without gain, the DS-CIJ3D provides a clearly defined set of connection and signal-handling functions.
