Digital Audio Distributor-AES/EBU and S/PDIF

Ideal Use Cases

The RDL HR-DDA4 is designed for systems that need to distribute one digital audio source to four destinations while accommodating different connection standards. It accepts 110 Ω AES/EBU through transformer-isolated XLR, optical S/PDIF, 75 Ω coaxial S/PDIF through a phono jack, or 75 Ω AES-3ID through BNC. This makes it appropriate when an existing source must feed several devices whose digital inputs are not all the same format. It also fits installations that need four parallel digital audio feeds, source-format conversion at the outputs, or reliable signal distribution across a combination of AES/EBU, S/PDIF, and AES-3ID equipment.

Why Choose This Model

The central advantage is independent output-format selection. Each of four output paths has a rear-panel selector and can be configured as AES/EBU, S/PDIF, or AES-3ID. The unit provides four transformer-isolated 110 Ω AES/EBU XLR outputs, four 75 Ω S/PDIF coaxial phono outputs, and four 75 Ω AES-3ID BNC outputs. That 12-connector arrangement supports four distributed outputs while giving the installer access to the appropriate connector for the selected format. Format conversion is performed for the chosen output format, so the HR-DDA4 can bridge formats as it distributes the signal. Digital signal reclocking is also included as part of the distribution path.

Installation and Integration

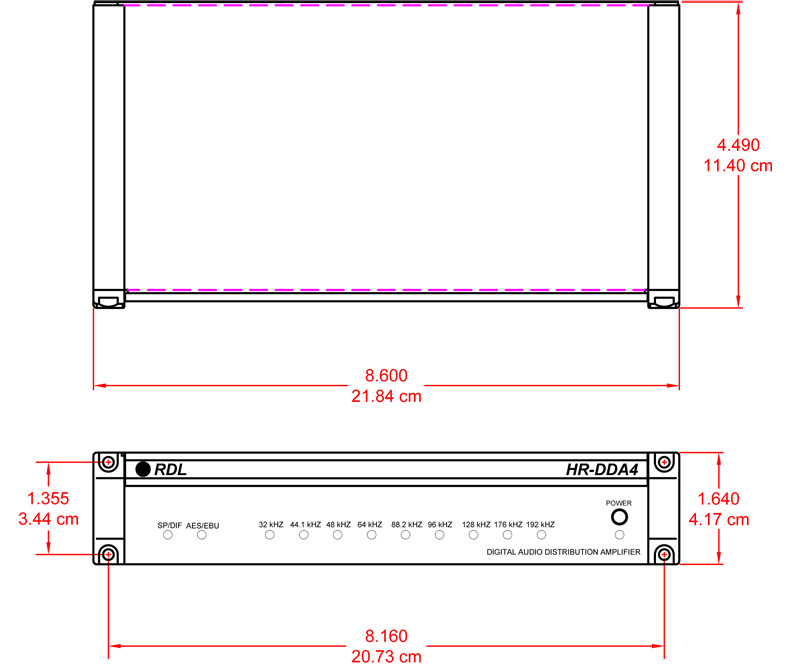

Integration begins by connecting the source to one of the available input interfaces and setting each rear-panel output format selector for its destination. The input connections cover AES/EBU XLR, optical S/PDIF, coaxial S/PDIF, and AES-3ID BNC. Destination equipment can then be connected through the matching XLR, phono, or BNC output for each selected path. Status information is available through a power LED, two input-format LEDs, and nine sample-rate LEDs; the listed feature set also includes a digital signal lock indicator for each input format. The unit requires ground-referenced 24 Vdc at 50 mA. The recommended PS-24AS power supply for the USA or PS-24AX for international use is not included.

Performance Highlights

The HR-DDA4 operates from 32 kHz to 192 kHz and supports 16- to 24-bit resolution. Its published feature set specifies operation up to 24 bits at 192 kHz, making the full stated range easy to identify when matching it to a digital audio system. Transformer isolation is provided on the AES/EBU input and the four AES/EBU outputs. The product also reclocks the digital signal before distribution. Sample-rate indication makes the active rate visible, while input-format and signal-lock indication provide immediate operating feedback. The unit conforms to AES3-2003 and IEC60958 standards and is specified for ambient operation from 0°C to 50°C.

What Makes It Different

Sure-Lok Auto-Recovery Sentinel is a defining part of the HR-DDA4 feature set. Its auto-recovery supervision monitors possible causes of latch-up and reinitiates digital signal lock. This function is intended to bring a high level of stability to digital audio signal distribution under the variety of conditions encountered in professional environments. Combined with reclocking, transformer-isolated AES/EBU connections, and selectable format conversion on each output, Sure-Lok addresses both interface flexibility and continued lock management. The result is a single distributor that handles the three stated output formats without requiring every destination to use the source’s original connection format.

Final Assessment

The HR-DDA4 is a focused choice for one-to-four digital audio distribution where AES/EBU, coaxial or optical S/PDIF, and AES-3ID may coexist. Its strongest practical combination is four independently selected output formats, 32-to-192 kHz operation, 16-to-24-bit resolution, AES/EBU transformer isolation, signal reclocking, and Sure-Lok auto-recovery supervision. Installers should account for the required ground-referenced 24 Vdc power source because the recommended power supply is not included. For systems built around the published AES3-2003 and IEC60958 standards, the unit consolidates distribution and format conversion in one model.
