24 Vdc Power Distributor-1x3

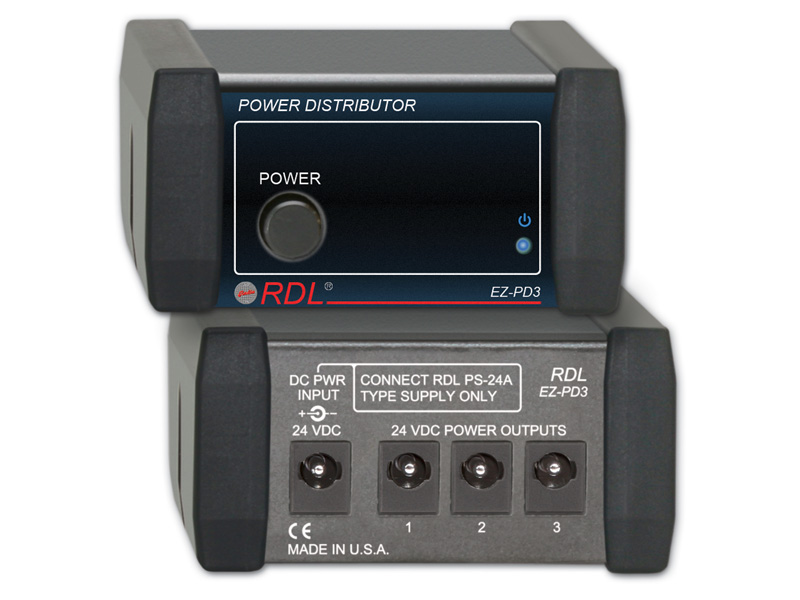

The RDL EZ-PD3 is a 24 Vdc power distributor that provides up to three power distribution points from a single power supply. Its electrical design supports a total connected load of up to 600 mA and requires 24 Vdc at 20 mA plus the connected loads. A front-panel switch activates the outputs, while a POWER LED provides visible voltage-presence indication. Soft-start support from a switching supply and reverse-voltage protection address key power-management requirements.

Ideal Use Cases

The EZ-PD3 is suited to systems that need to distribute 24 Vdc power to as many as three compatible products. It allows multiple products to operate from one power supply, reducing the need for a separate supply at every distribution point. This arrangement is appropriate when the combined load current of all connected products does not exceed 600 mA.

The specified ambient operating range of 0° C to 55° C supports use across a defined range of indoor operating conditions. The unit is intended for use with a current-limited switching supply, making supply selection and total load planning important parts of system design.

Why Choose This Model

The EZ-PD3 combines distribution, output activation, status indication, and power protection in one model. Its three outputs provide clearly defined distribution capacity, and the front-panel switch offers direct activation of those outputs. The POWER LED indicates voltage presence, giving the operator an immediate visual reference at the unit.

Reverse-voltage protection provides an added safeguard at the power interface. The model also supports soft-start from a switching supply. Together, these functions provide more than basic one-to-three power distribution while retaining a straightforward 24 Vdc operating format.

Installation and Integration

Integration begins with a 24 Vdc current-limited switching supply. The input/output specification is 24 Vdc at 600 mA, and the total load current across all three outputs must remain at or below 600 mA. The unit itself has a stated power requirement of 24 Vdc at 20 mA plus the connected loads, so the complete connected load must be considered when selecting the supply.

The operating environment must remain within 0° C to 55° C. For documentation and design coordination, a manual is available in PDF format. Engineering resources include an engineering functional block and front and rear panel diagrams in American DXF format. These files support planning around the unit using the formats identified by the manufacturer.

Performance Highlights

The EZ-PD3 distributes 24 Vdc power through three outputs with a firm 600 mA combined-load ceiling. This shared-current specification makes system planning clear: the individual connected loads may vary, but their total must not exceed the stated maximum. The POWER LED supplies voltage-presence indication without requiring external monitoring for that basic status check.

Output activation through the front-panel switch provides direct control at the distributor. Soft-start support from the switching supply addresses power application, while reverse-voltage protection adds protection against reverse voltage. The resulting feature set is focused specifically on controlled, visible, and protected 24 Vdc distribution.

What Makes It Different

The defining advantage of the EZ-PD3 is its combination of three power distribution points and shared operation from one supply. This enables multiple products to be powered without assigning a separate supply to each product, supporting the stated energy-efficiency benefit of powering multiple products from a single power supply.

Its front-panel switching and POWER LED place activation and voltage indication directly on the distributor. Reverse-voltage protection and soft-start support further distinguish it from an unprotected passive connection arrangement. Each feature serves a specific role in the distribution of 24 Vdc power.

Final Assessment

The RDL EZ-PD3 is a focused choice for distributing 24 Vdc power to as many as three points when the combined connected load is 600 mA or less. Its front-panel output activation, POWER LED, soft-start support, and reverse-voltage protection provide practical control and status functions. For systems that meet its voltage, current, supply, and operating-temperature requirements, it offers a clearly specified one-input-to-three-output power-distribution solution.
