Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Minimum: 640 x 480
Maximum Brightness White: 4200 Lumens Color: 4200 Lumens
Aspect Ratio Native: 16:10
Color Depth 10-Bit (1.07 Billion Colors)
Focus Manual
Lens f/1.5 – 1.9 (f = 20.3 – 32.5 mm)
Optical Zoom Manual: 1.6x
Throw Distance 8.169 – 47.671′ / 2.49 – 14.53 m
Throw Ratio 1.39 to 2.23:1
Projection Size 45 – 260″ / 114.30 – 660.40 cm
Keystone Correction Vertical: 30 Horizontal: 20
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Inputs/Outputs 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 2 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (RCA) Audio Input 1 x 2RCA Audio Input 3 x 1/8″ / 3.5 mm Mini Audio Input 1 x Ethernet (RJ45) LAN Input 1 x USB 2.0 (USB Type-A) Data Input 1 x USB 2.0 (USB Type-B) Control, Service Input 1 x RS-232 (DE-9/DB-9) Control Input
Wireless LAN / Wi-Fi No, Optional Adapter Available
Light Source Lamp (1 x UHE)
Lamp Power 230 W
Expected Lamp Life Full Brightness: 5500 Hours Low Brightness: 12,000 Hours
Security Cable Lock Slot
Power Consumption Full Brightness: 350 W Low Brightness: 237 W Standby Mode (Lamp Off): 2 W
Dimensions (W x H x D) 14.9 x 4.9 x 11.5″ / 37.8 x 12.4 x 29.2 cm Including feet 14.9 x 4.3 x 11.5″ / 37.8 x 10.9 x 29.2 cm Excluding feet
Weight 7.05 lb / 3.2 kg
Package Weight 9.72 lb
Box Dimensions (LxWxH) 15 x 15 x 6.5″

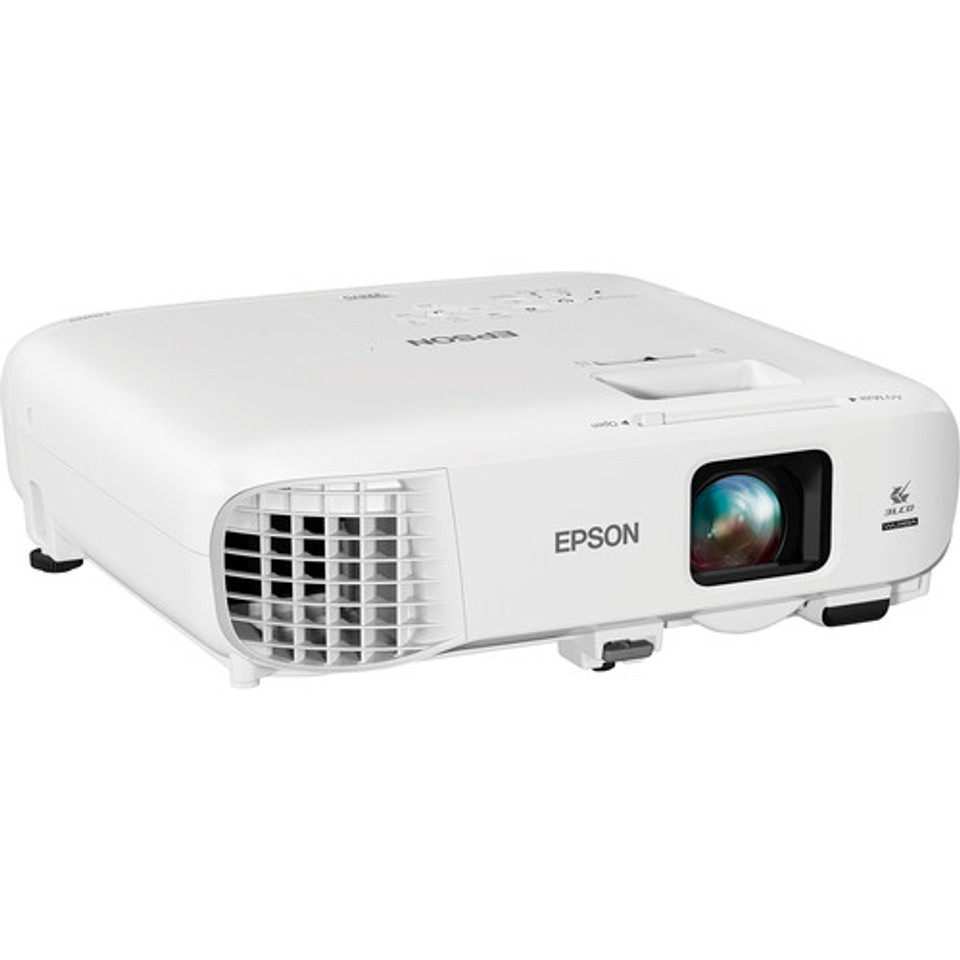

The PowerLite 2247U features RCA video, two VGA, and two HDMI inputs to support various source devices. One HDMI input is MHL-compatible, which allows you to connect your compatible smart device directly to the projector to mirror its screen. The projector also accepts video signals via USB from Windows and Mac computers. A VGA cable and an IR remote control are included for added convenience. Product Features
Brightness of 4200 Lumens WUXGA (1920 x 1200) Native Resolution
Brightness of 4200 Lumens RCA Composite, 2x VGA, 2x HDMI Inputs
VGA Output for Loop-Through Analog Audio Input and Output Integrated 16-Watt Speaker
Ethernet and RS-232 Controllable Includes VGA Cable and IR Remote Control
Ethernet and RS-232 Controllable High Color and White Brightness Levels
Ethernet and RS-232 Controllable View color and white brightness of 4200 lumens.
HDMI with MHL Connectivity Stream 1080p content and mirror your compatible mobile device with MHL connectivity, for instant access to movies, games, and more. Built-In Speaker
HDMI with MHL Connectivity The PowerLite 2247U features a built-in speaker, so an external speaker setup might not be necessary.
3-Chip Processor for Enhanced Color Accuracy
The 3-chip design is engineered to produce enhanced color brightness with a wider color gamut than single-chip engines.
HDMI with MHL Connectivity The dynamic 15,000:1 contrast ratio helps enhance clarity when displaying text and graphics.
Extend Lamp Life in ECO Mode
HDMI with MHL Connectivity The included lamp can last up to 12,000 hours in ECO Mode.
Remote Management and Control Tools The PowerLite 2247U is compatible with Crestron, AMX, Extron, PJLink, and more, for simplified access and maintenance. Versatile, Compact Design With multiple connectivity options, and measuring just 14.85 x 4.93 x 11.48″ with feet, the PowerLite 2247U can easily be transported between or installed in small- to medium-sized rooms.
Remote Management and Control Tools Compatible with the iProjection App
Remote Management and Control Tools Wirelessly project from your iOS or Android mobile device.
An optional wireless LAN adapter allows you to project from laptops and mobile and streaming devices. With the optional adapter, you can also connect via Miracast or via AirPlay with an Apple TV.
Optional Wireless LAN Connectivity Two-Way Content Sharing with Optional Wireless LAN Adapter
Optional Wireless LAN Connectivity Presenters can push content from the projector to wirelessly connected devices and control which devices’ screens receive the projected content. Participants can then make notes and send their work back to the projector. Eco Features RoHS compliant Recyclable design Epson 2247u Specs Display System 3-Chip Polysilicon TFT LCD
Optional Wireless LAN Connectivity Native Chip Resolution 1920 x 1200 (WUXGA) Supported Resolutions
Optional Wireless LAN Connectivity Minimum 640 x 480 Maximum Brightness
Optional Wireless LAN Connectivity White 4200 Lumens
Optional Wireless LAN Connectivity Color 4200 Lumens
Aspect Ratio Native 16:10
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Lens Focus Manual Lens
Aspect Ratio Manual 1.6x
Throw Distance Throw Ratio 1.39 to 2.23:1
Projection Size 45 260″ / 114.30 – 660.40 cm Keystone Correction
Projection Size Vertical 30
Projection Size Horizontal 20 Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Mono) Inputs/Outputs
1 x HDMI (HDMI Type-A) Audio, Video Input, with MHL Support (HDMI Type-A) Audio, Video Input
Projection Size 2 x VGA (DE-15/DB-15) Video Input
Projection Size 1 x VGA (DE-15/DB-15) Video Output
1 x Composite (RCA) Audio Input
1 x 2RCA Audio Input 3 x 1/8″ / 3.5 mm Mini Audio Input
1 x Ethernet (RJ45) LAN Input
1 x USB 2.0 (USB Type-A) Data Input, 2.0 (USB Type-B) Control, Service Input 1 x RS-232 (DE-9/DB-9) Control Input
Projection Size Wireless LAN / Wi-Fi No, Optional Adapter Available Light Source Lamp (1 x UHE) Lamp Power 230 W Expected Lamp Life
Projection Size Full Brightness 5500 Hours
Projection Size Low Brightness 12,000 Hours Security Cable Lock Slot
Power Consumption Full Brightness 350 W
Power Consumption Low Brightness 237 W
Standby Mode (Lamp Off) 2 W
Power Consumption Dimensions (W x H x D) 14.9 x 4.9 x 11.5″ / 37.8 x 12.4 x 29.2 cm Including feet 14.9 x 4.3 x 11.5″ / 37.8 x 10.9 x 29.2 cm Excluding feet Weight 7.05 lb / 3.2 kg Packaging Info Package Weight 9.72 lb
Power Consumption Box Dimensions (LxWxH) 15 x 15 x 6.5″
SKU PL-2247U
