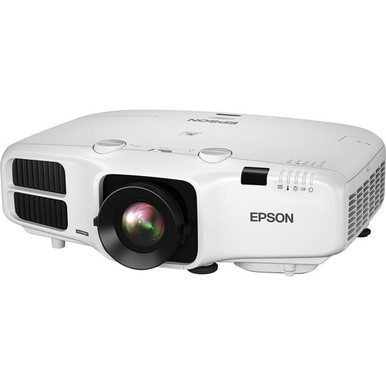

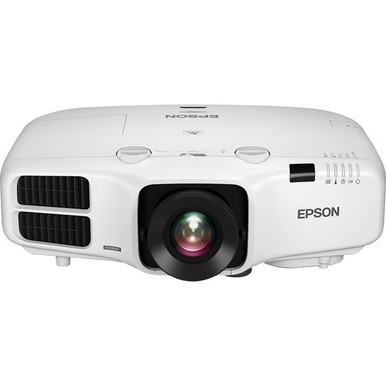

Enjoy bright, vibrant images with the Epson PowerLite 5520W 5500-Lumen WXGA 3LCD Projector. Its 5500 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image, without compromising overall brightness. Its 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.
The PowerLite 5520W features VGA, BNC component, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. An HDBaseT connection is also onboard as a single-cable option for HDMI audio and video, Ethernet, and RS-232 control. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and the included VGA cable will provide instant connectivity.
Key Features
- Brightness of 5500 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.26 to 2.3:1 Throw Ratio
- HDBaseT, VGA, BNC Component, 2 x HDMI In
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Integrated Speaker
- Ethernet and RS-232 Controllable
- VGA Cable and IR Remote Included
High Color and White Brightness Levels
Lens Shift
HDMI Connectivity
HDBaseT
3LCD Color Accuracy
Enhanced Sharpness and Detail
Remote Management and Control Tools
Optional Wireless Networking
Epson 5520W Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Full HD 1080p – 1920 x 1080 |
| Maximum Brightness | 5500 Lumens |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 15,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 92 kHz Vertical: 50 to 85 Hz |
Lens
| Focus | Manual |
| Lens | f/1.5 – 2.15 (f = 21.34 – 37.99 mm) |
| Lens Shift | Vertical: ± 50% Horizontal: ± 10% |
| Optical Zoom | Manual: 2x |
| Throw Distance | 53.1 – 590.9″ / 1.349 – 15.009 m |
| Throw Ratio | 1.26 to 2.3:1 |
| Projection Size | 30 – 300″ / 76.20 – 762.00 cm |
Features
| Keystone Correction | Horizontal: ± 30° Vertical: ± 30° |

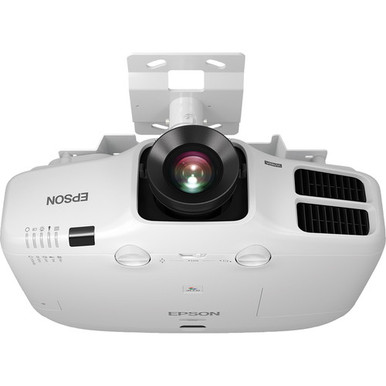

| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |

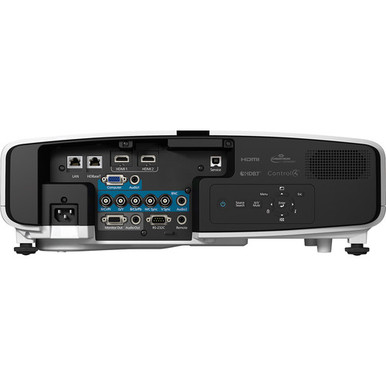

Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x Component (3BNC) Video Input 2 x 1/8″ / 3.5 mm Mini Audio Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x USB 2.0 (USB Type-A) Control Input 1 x USB 2.0 (USB Type-A) Service Input 1 x 1/8″ / 3.5 mm Mini Remote Input |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 300 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 38 dB Low Brightness: 28 dB |
| Security | Cable Lock Slot |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 462 W Low Brightness: 324 W Standby Mode (Lamp Off): 3 W Standby Mode (Lamp Off): 0.5 W |
| Dimensions (W x H x D) | 18.5 x 6.2 x 13.9″ / 47.0 x 15.7 x 35.3 cm Including feet 18.5 x 5.2 x 12.6″ / 47.0 x 13.2 x 32.0 cm Excluding feet and lens |
| Weight | 15.2 lb / 6.9 kg With standard lens |
Packaging Info
| Package Weight | 23.75 lb |
| Box Dimensions (LxWxH) | 24.6 x 21.8 x 9.3″ |
