13" Tableux ePaper, 60k Colors, Reflective, Lan, Wifi, USB, Android SoC

Ideal Use Cases

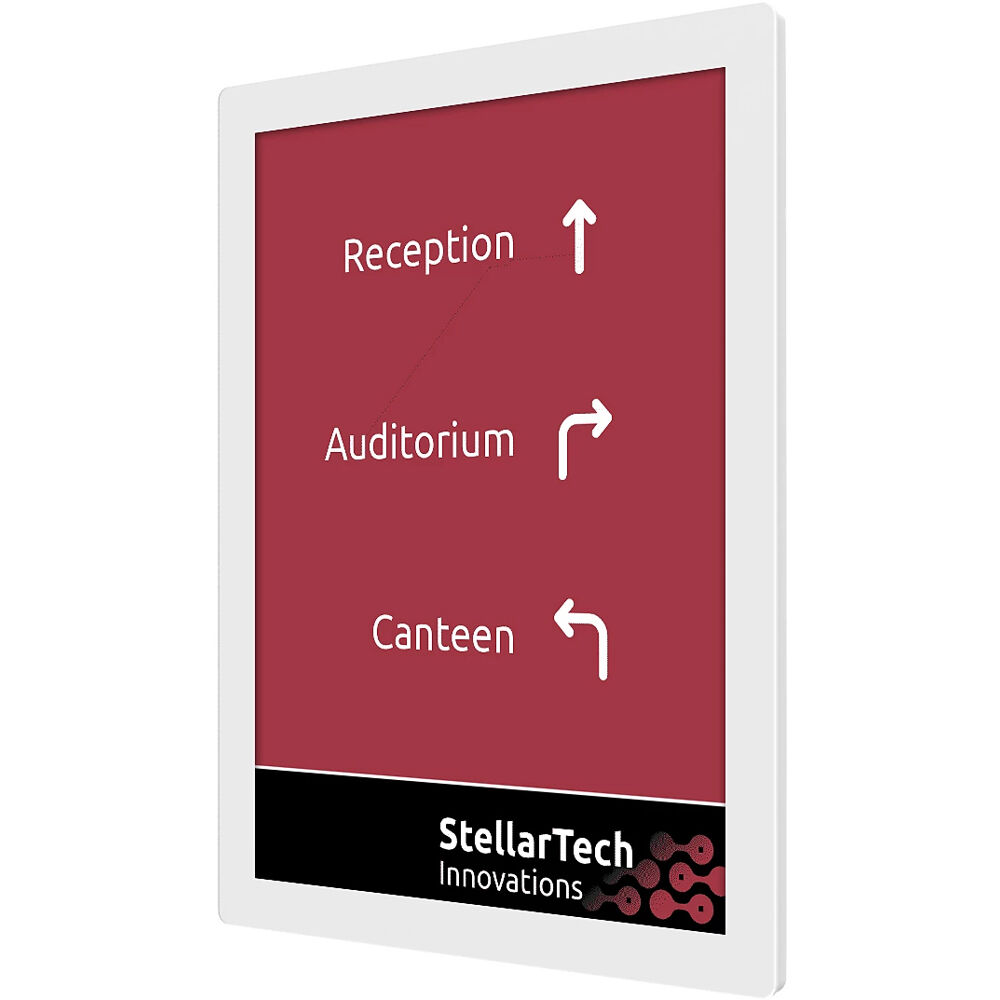

Designed for room bookings, product information, digitised paper posters, and other static-content signage, the Tableaux 13BDL4150IW/00 provides a 13.3-inch reflective ePaper surface in a compact format. Its 1600 x 1200 panel presents 60K colors with a 4:3 aspect ratio. Landscape and portrait placement allow the same model to accommodate wide product information or vertically arranged room and signage content. Measuring 306.4 mm wide, 238.8 mm high, and 31.66 mm deep, it can be installed where a larger digital signage display is not required.

Why Choose This Model

The 13BDL4150IW/00 combines its ePaper panel with an onboard Android computing configuration. It runs Android 11 on a Rockchip PX30S processor and includes 2 GB of DDR4 memory with 16 GB of eMMC storage. Network connectivity includes 10 M/100 M Ethernet and 2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi, while the wireless module also supports Bluetooth 5.1. The display is network controllable through LAN. USB is listed as a video input, micro USB is provided as an additional connection, and Audio Left/Right output is available. A three-year warranty supports commercial deployment planning.

Installation and Integration

The display supports both landscape and portrait placement and has a 100 x 100 mm VESA mounting interface. Its 1.3 kg product weight and 18.5 mm bezel can be factored into mounting and enclosure designs. Power can be supplied using the included AC power adapter, rated at 20 V/2.25 A, or through POE++. The package also includes a quick start guide. For wired installations, the integrated Ethernet connection operates at 10 M/100 M. Wireless installations can use the specified dual-transmit, dual-receive Wi-Fi module. Stated operating conditions include temperatures from 15 to 35 degrees Celsius, relative humidity from 20% to 80%, and altitudes from 0 to 3000 m. The listed storage temperature range is 20 to 60 degrees Celsius.

Performance Highlights

The reflective 13.3-inch ePaper panel is built around a native resolution of 1600 x 1200 and a 4:3 image format. Its 60K-color capability provides a color alternative to monochrome ePaper for product details, booking information, poster graphics, and similar static material. The documented internal platform consists of Android 11, the Rockchip PX30S CPU, 2 GB DDR4 memory, and 16 GB eMMC storage. This creates a clearly defined combination of display and onboard processing resources for ePaper signage applications. English and Simplified Chinese are available as on-screen display languages.

What Makes It Different

This model is positioned as a digitised alternative to paper posters and digital displays used primarily for static content. Its defining combination is a reflective ePaper panel, 60K-color output, dual-orientation placement, an Android operating system, and both wired and wireless networking. The connection set covers LAN, Wi-Fi, Bluetooth 5.1, USB, micro USB, and Audio Left/Right output. POE++ provides an additional power option alongside the supplied 20 V/2.25 A adapter. The unit also carries CE, CB, UL, and FCC regulatory approvals, giving integrators a documented set of platform, connection, mounting, environmental, and compliance specifications.

Final Assessment

The 13BDL4150IW/00 is most directly suited to organizations replacing printed room, product, poster, or other static information with a network-capable ePaper display. Its 13.3-inch reflective panel, 1600 x 1200 resolution, 60K colors, Android 11 platform, and landscape or portrait installation options define its role clearly. LAN control, Wi-Fi, Bluetooth, USB connectivity, POE++, and 100 x 100 mm VESA mounting provide multiple integration paths, while the 1.3 kg enclosure remains compact. The included adapter, quick start guide, regulatory approvals, and three-year warranty complete the supplied commercial package.
