Display System 1-Chip 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Maximum Brightness 12,000 Lumens (ISO) 12,600 Lumens (Center)
Uniformity 90%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 10,000:1, 10,000:1 Features Ceiling Mountable Yes
Ceiling Mountable Yes

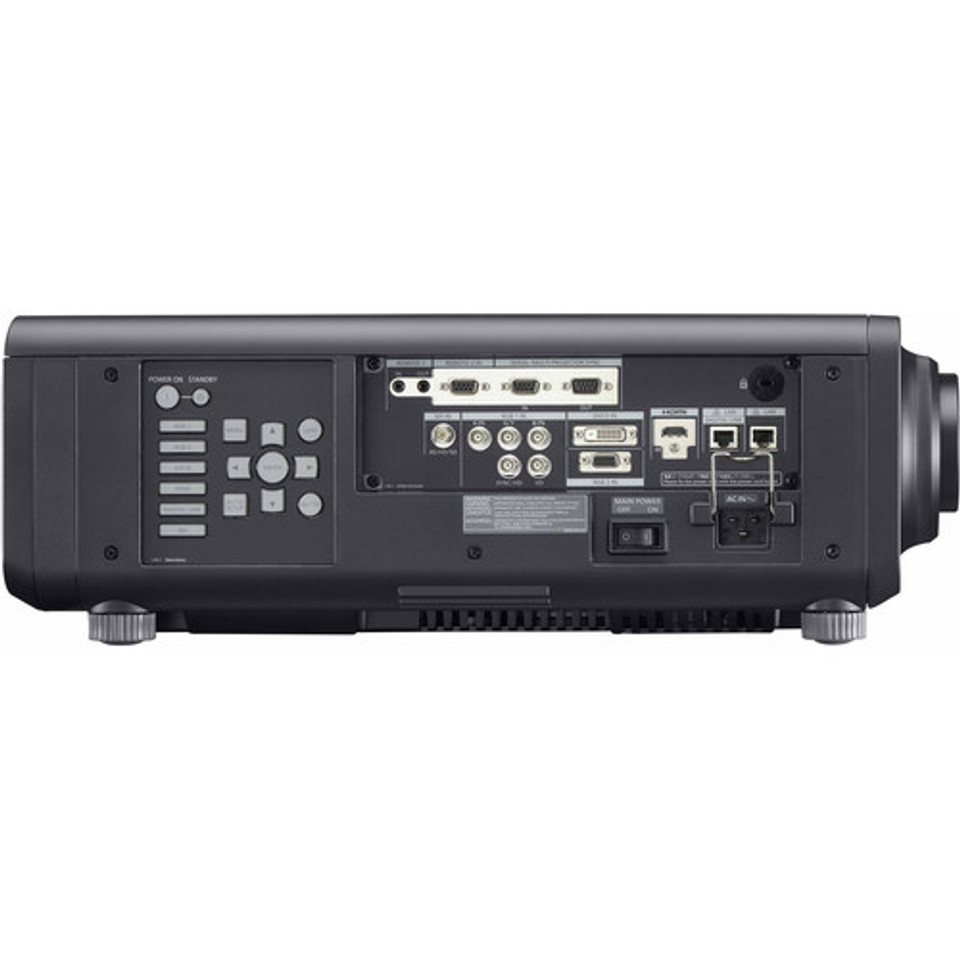

Inputs/Outputs 1 x 3G-SDI (BNC) Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x 5BNC Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x RS-232 (DE-9/DB-9) Remote Input 1 x RJ45 Control, Data Input/Output 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise Full Brightness: 44 dB Medium Brightness: 41 dB Low Brightness: 38 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 1100 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm
Weight 50.3 lb / 22.8 kg

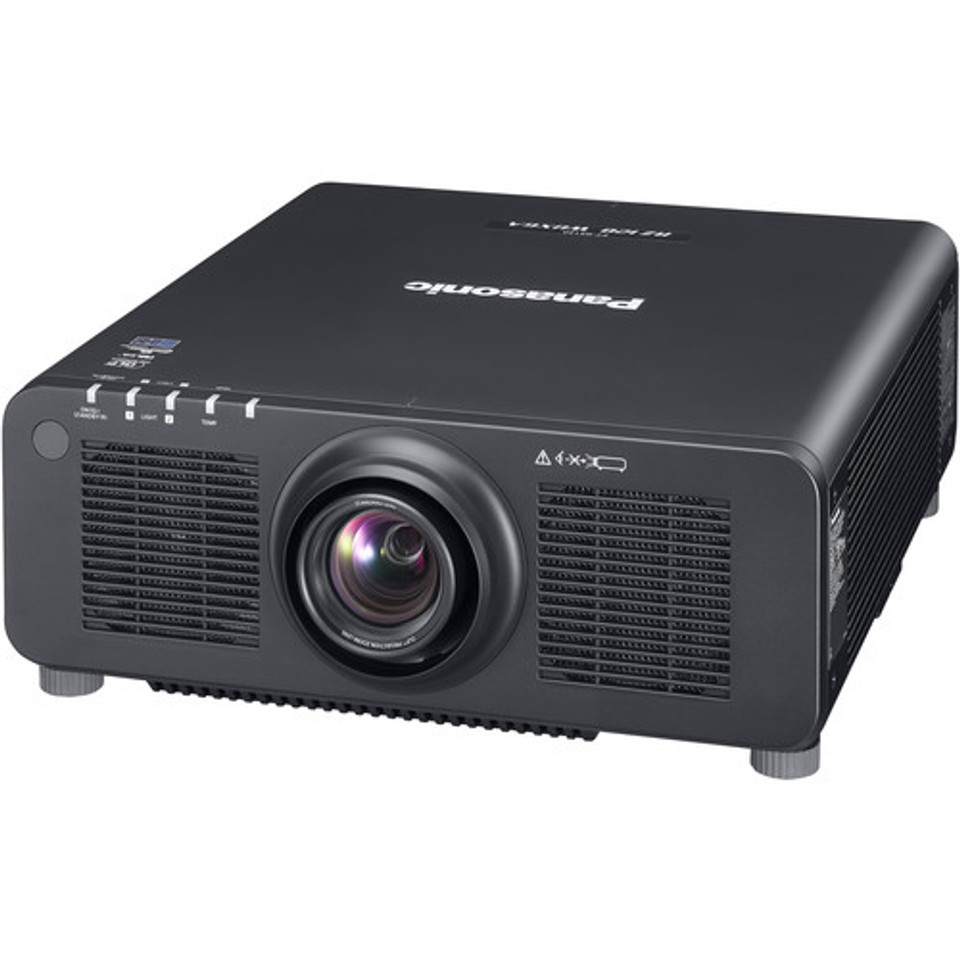

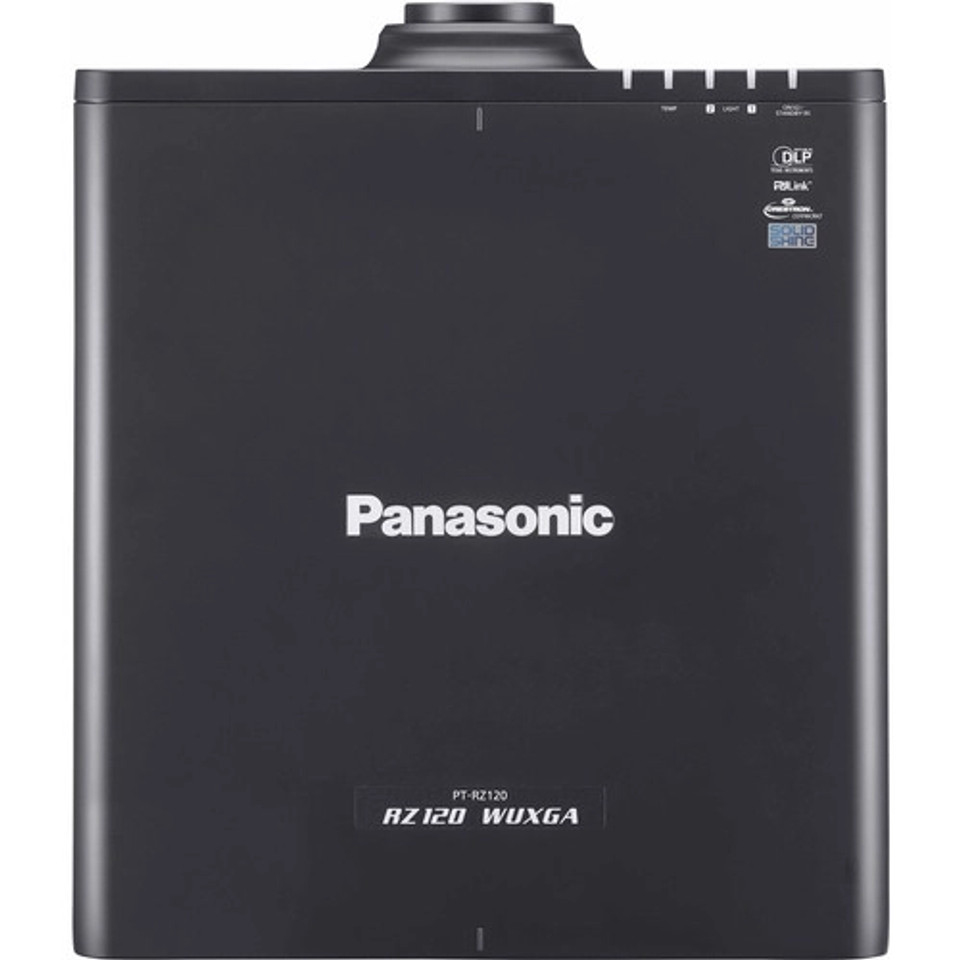

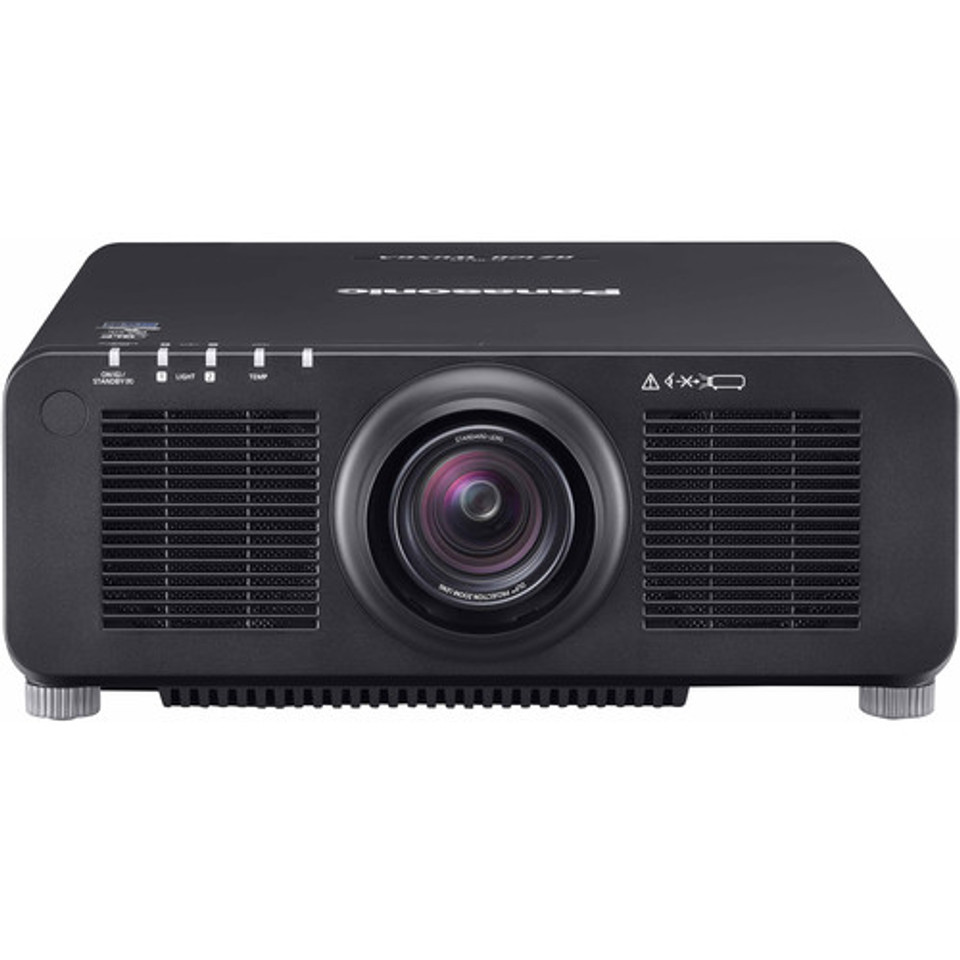

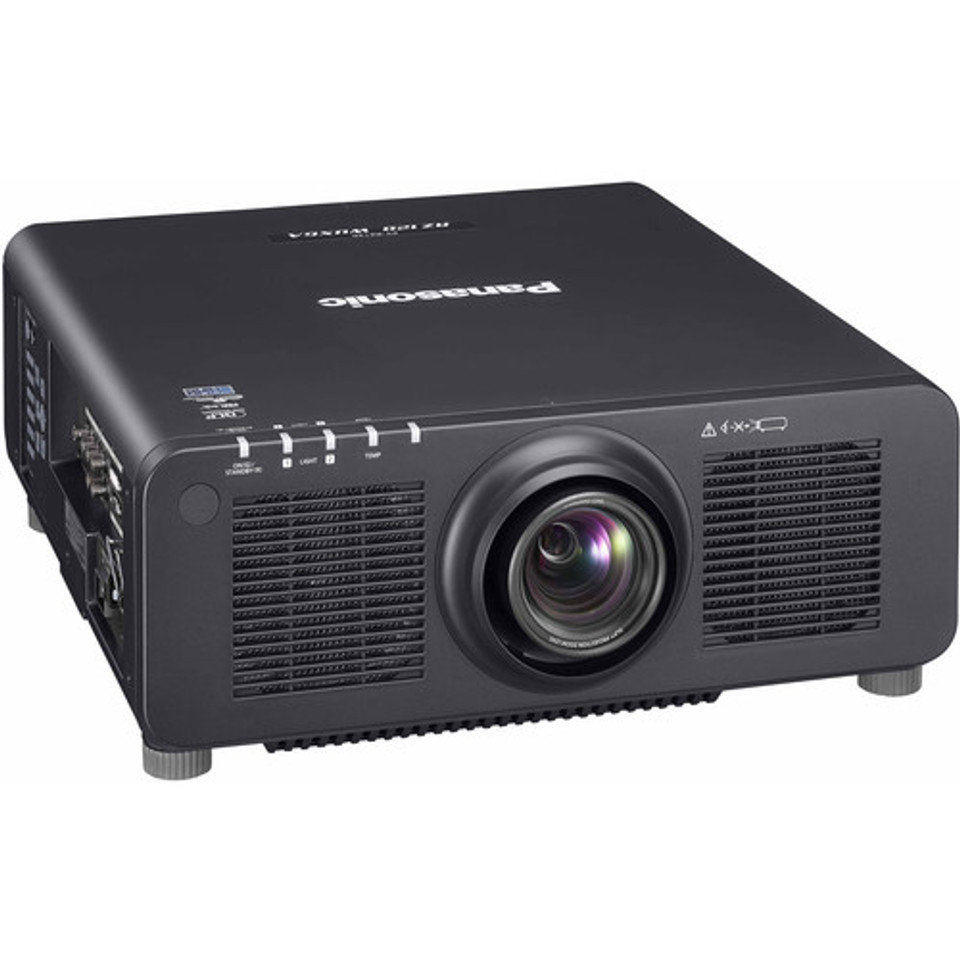

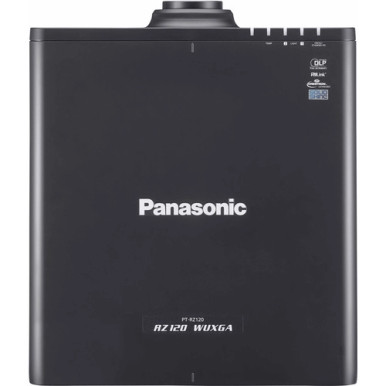

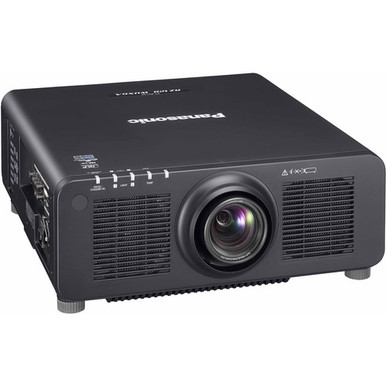

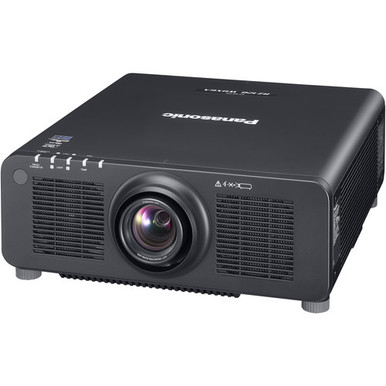

Panasonic RZ120LBU Overview Brightness of 12,000 Lumens
Panasonic RZ120LBU Overview WUXGA (1920 x 1200) Native Resolution
HDBaseT, 3G-SDI, DVI-D, VGA, HDMI Inputs Panasonic RZ120LBU Specs Image Display Display System 1-Chip 0.67″ DLP

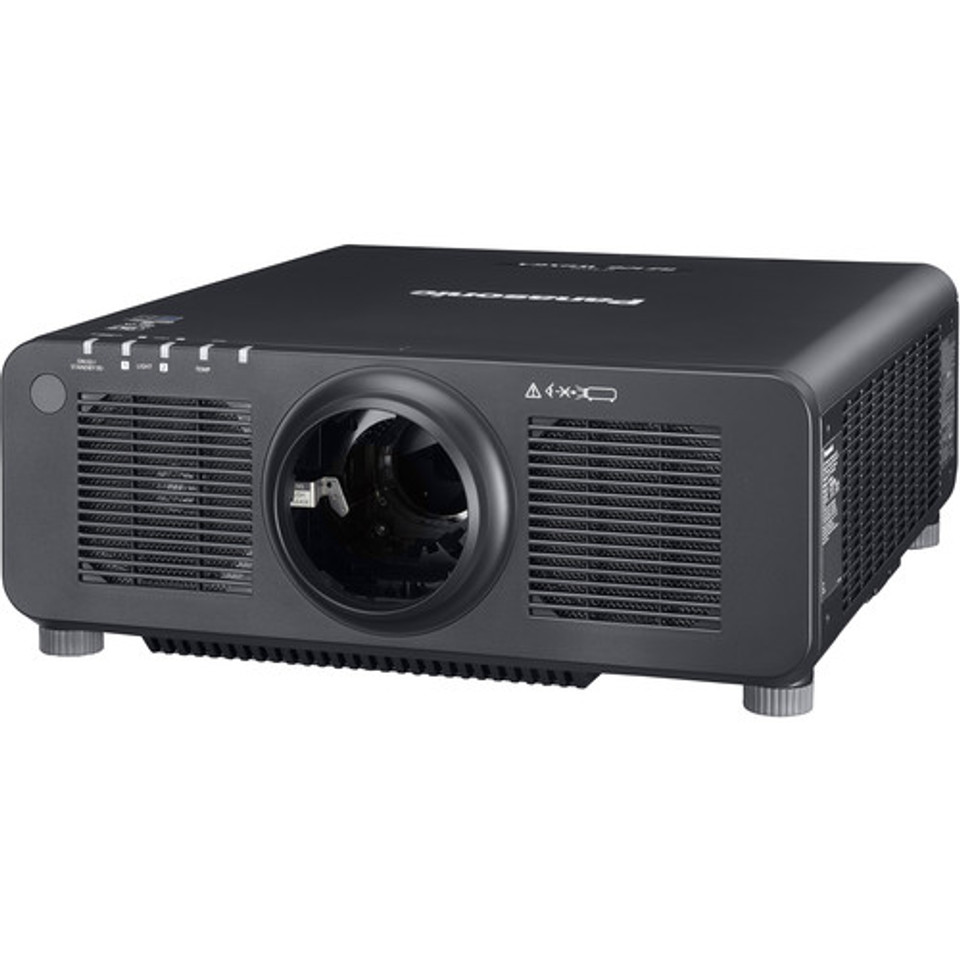

Uses Optional Interchangeable Lenses Native Chip Resolution 1920 x 1200 (WUXGA) Maximum Brightness 12,000 Lumens (ISO) 12,600 Lumens (Center) Uniformity 90%
Aspect Ratio Native 16:10
Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (BNC) Video Input, x DVI-D Video Input, x 5BNC Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x RS-232 (DE-9/DB-9) Remote Input 1 x RJ45 Control, Data Input/Output
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours
Fan Noise Full Brightness 44 dB
Fan Noise Medium Brightness 41 dB
Fan Noise Low Brightness 38 dB
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 1100 W
Power Consumption Operating Temperature 32 to 113°F / 0 to 45°C
Power Consumption Operating Humidity 10 to 80%
Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Weight 50.3 lb / 22.8 kg
SKU PTRZ120LBU
