Panasonic RZ120WU Overview

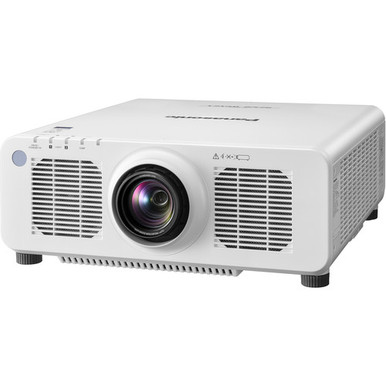

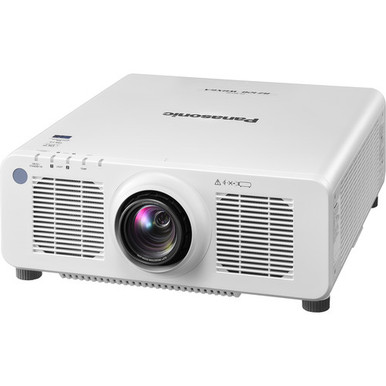

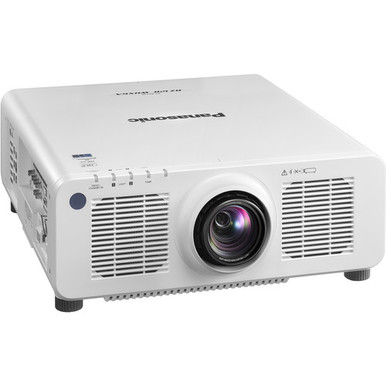

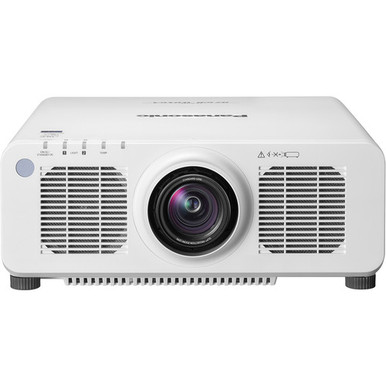

Brighten up your presentations with the white PT-RZ120WU 12,600-Lumen WUXGA DLP Projector from Panasonic. Boasting a 12,000-lumen output and a 10,000:1 dynamic contrast, this projector is designed to overcome ambient light even in relatively bright rooms so that images are sharp and crisp all across. The projector's 1920 x 1200 WUXGA native resolution enables you to display detailed video, pictures, and data. The preinstalled standard lens provides a 1.7 to 2.4:1 throw ratio, enabling placement and screen-size flexibility while ensuring focused images. Various interchangeable lenses are available separately for a variety of additional throw ratio choices.
The PT-RZ120WU features HDMI, VGA, 3G-SDI, DVI-D, and HDBaseT inputs, allowing for connectivity to nearly any device. The projector can be controlled via the included wireless/wired remote control, HDBaseT, or RS-232 with various control software options.
Key Features
- Brightness of 12,000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.7 to 2.4:1 Throw Ratio
- Various Optional Interchangeable Lenses
- Produces Images up to 600"
- HDBaseT, 3G-SDI, DVI-D, VGA, HDMI Inputs
- 360° Rotation-Capable
- Compatible with Popular Control Systems
- HDBaseT & RS-232 Controllable
- Wireless/Wired Remote Included
1-Chip DLP Technology with Solid Shine Lasers
The PT-RZ120WU uses dual solid-state lasers and phosphor wheels to project immersive 12,000-lumen images at WUXGA resolution. Delivering high color accuracy and contrast as well as consistent color uniformity, the PT-RZ120WU is suitable for large-format multi-screen projection.
System Daylight View 3
System Daylight View 3 helps prevent images from washing out in well-lit environments, enhancing brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors for an augmented visual impact.
Dust-Resistant Airtight Optical Block
The optical block is airtight, which helps to ensure consistent image quality for up to 20,000 hours without maintenance.
Selectable Operational Modes Help Maintain Image Quality
In Normal Mode, the projector can operate continuously for up to 20,000 hours. In Eco Mode, this is extended up to 24,000 hours of continuous operation. These modes enhance suitability for education and signage applications.
Engineered for Stable 24/7 Operation with Light Source Failover Protection
The dual-drive laser optical engine groups laser diodes into two discrete modules. A fail-safe redundancy circuit works to minimize loss of brightness uniformity and color uniformity if a laser diode fails, making the projector suitable for mission-critical applications.
4K Signal Input Support
The PT-RZ120WU supports uncompressed 4K signal input via HDMI or DIGITAL LINK.
Note:
Images are converted to Full HD (1920 x 1080) upon video projection.
Single-Cable DIGITAL LINK Solution
Upward HDBaseT-compatible DIGITAL LINK supports transmission of uncompressed video and control commands through a single Cat5e or higher STP cable for distances up to 492' at Full HD or 164' at 4K resolution. An optional DIGITAL LINK Switcher or Digital Interface Box can further simplify installation in large venues while reducing cost and improving reliability.
Separate LAN / DIGITAL LINK Terminals
Separate terminals for LAN and DIGITAL LINK enhance versatility. 100Base-TX- and 10BaseT-compatible control signals can be assigned to the LAN terminal, freeing up the DIGITAL LINK terminal for video.
Data Cloning
Using the built-in data-cloning function, configuration data can be copied from a master projector to slave projectors via LAN, expediting the setup of multiple RZ120WUs.
Wide-Range Powered Lens Shift
Images can be quickly and easily aligned via remote control using the projector's extra-wide powered lens shift, which offers -16 to 50% vertical and -10 to 30% horizontal adjustment with the preinstalled standard lens.
Contrast Sync and Shutter Sync Function
The PT-RZ120WU features contrast and shutter sync functions for multi-screen and mapping applications. Contrast sync allows the projector's digitally modulated contrast function to be synchronized over the network for consistent picture quality across screens. Shutter Sync incorporates a master/slave principle to synchronize shutter on/off timing between all networked projectors. It includes simultaneous fade-in and fade-out functions.
Reduce Inventory Costs with Shared Lenses
The PT-RZ120WU shares optional lenses with other Panasonic projectors, reducing TCO for staging and event companies with large projector inventories. These lenses are designed to attach and detach with one-touch ease.
Note:
The ET-DLE030 lens is not compatible with the PT-RZ120WU projector.
Quick Start, Quick Off
The laser light source doesn't require any warm-up, so images appear almost instantly (in about one second). There's also no cool-down period needed when turning the power off at the mains—the projector can be turned on and off any time as necessary.
Multi-Monitoring and Control Software
The software offers monitoring and control of up to 2048 devices over a LAN network from a single computer. For monitoring, status for individual devices can be listed in groups, with more detailed information shown separately. Control functions include power on/off, input switching, scheduling, and command inputs.
Optional Early Warning Software
Early Warning Software monitors the status of projectors and displays connected to an intranet and informs you when an abnormality is detected or predicted, or when there are symptoms of trouble, helping to minimize downtime for stable operation.
Multi-Unit Brightness and Color Control
This function is designed to automatically correct brightness and color fluctuations that occur over time in individual projectors in a multi-screen system.
Multi-Screen Support System Connects Multiple Screens
With edge blending, edges of adjacent screens can be blended and their luminance controlled. Color matching corrects for slight variations in the color reproduction range of individual projectors. Computer software helps provide easy, accurate control.
Backup Input Setting Helps Optimize Performance
This feature allows for smooth switching to a backup input signal should the primary signal be disrupted, helping to ensure reliability for mission-critical control rooms, projection mapping, staging, and other applications where image display must be maintained.
Free 360° Rotation
The projector can be rotated 360° for installation and projection at virtually any angle.
Supports Art-Net DMX and PJLink
The PT-RZ120WU is compatible with Art-Net DMX protocol for lighting management, allowing the projector to be connected to a lighting console, opening the door to a range of added functionality and control options. The onboard LAN terminal also supports PJLink (Class 2) for integration into an existing A/V network using multiple device brands.
Geometric Adjustment for Custom Screen Surfaces
Geometric Adjustment adapts the image for projection onto spherical, cylindrical, and other shaped screens. Fine-tuning is performed via the remote control, with no external equipment needed. Paired with the Multi-Screen Support System, creative mapping presentations are possible in a variety of event and staging applications.
Geometry Manager Pro Software
This software is designed to expand built-in functionality to make complex adjustments easier. The free software package includes enhanced color matching and edge blending for multi-screen projection and adjustment of multiple screens over the network. An optional upgrade kit for this software adds creative masking capability using either four lines or bitmap data, as well as uniformity correction and correction area expansion.
Detail Clarity Processor 3 Sharpens Details
The circuit is designed to optimize the sharpness of each image based on the frequency components of the extracted image information, for enhanced realism.
Additional Features
- Auto screen image rotation function
- Smart projector control
- 10,000:1 dynamic contrast
- Compact and lightweight
- Rec. 709 Mode for HDTV projection for accurate colors
- DICOM Simulation Mode offers X-ray photo reproduction for educational use
- Heat-sink based cooling system
- Quiet Modes 1 & 2 reduce operational noise
- Suitable for high-ceiling installation
Panasonic RZ120WU Specs
Image Display
| Display System | 1-Chip 0.67" DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 12,000 Lumens |
| Uniformity | 90% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 10,000:1 |
Lens
| Focus | Manual Powered |
| Lens | f/1.7 - 1.9 (f = 25.6 - 35.7 mm) |
| Lens Shift | Vertical: -16 to 50% Horizontal: -10 to 30% |
| Optical Zoom | 1.39x |
| Throw Distance | 12.172 - 103.839' / 3.71 - 31.65 m |
| Throw Ratio | 1.7 to 2.4:1 |
| Projection Size | 100 - 600" / 254.00 - 1524.00 cm |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 15° |
| Ceiling Mountable | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x 3G-SDI (BNC) Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x 5BNC Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x DE-9/DB-9 Control Input 1 x DE-9/DB-9 Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x DE-9/DB-9 Remote Input 1 x RJ45 Control, Data Input/Output 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Full Brightness: 44 dB Medium Brightness: 41 dB Low Brightness: 38 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 1100 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 80% |
| Dimensions (W x H x D) | 19.6 x 7.9 x 22.9" / 498.0 x 200.0 x 581.0 mm With Included Lens |
Packaging Info
| Package Weight | 66 lb |
| Box Dimensions (LxWxH) | 29.5 x 25 x 14" |
