Display System 1-Chip 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Maximum Brightness 12,000 Lumens
Uniformity 90%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 10,000:1, 10,000:1 Lens Focus Manual Powered Lens
Focus Manual Powered
Lens f/1.7 – 1.9 (f = 25.6 – 35.7 mm)
Lens Shift Vertical: -16 to 50% Horizontal: -10 to 30%
Optical Zoom 1.39x
Throw Distance 12.172 – 103.839′ / 3.71 – 31.65 m
Throw Ratio 1.7 to 2.4:1
Projection Size 100 – 600″ / 254.00 – 1524.00 cm
Keystone Correction Vertical: 40 Horizontal: 15
Ceiling Mountable Yes

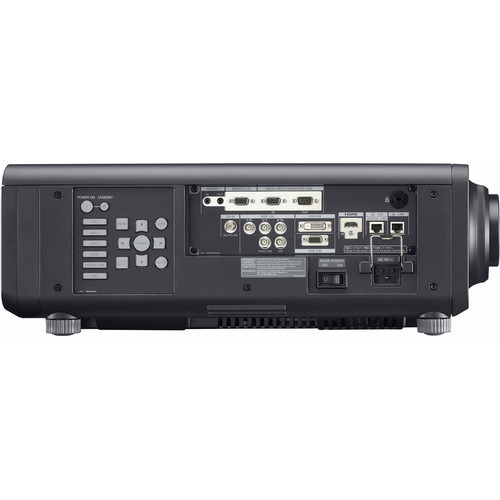

Inputs/Outputs 1 x 3G-SDI (BNC) Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x 5BNC Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x DE-9/DB-9 Control Input 1 x DE-9/DB-9 Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x DE-9/DB-9 Remote Input 1 x RJ45 Control, Data Input/Output 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise Full Brightness: 44 dB Medium Brightness: 41 dB Low Brightness: 38 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 1100 W
Operating Temperature 32 to 113 F / 0 to 45 C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 19.6 x 7.9 x 22.9″ / 498.0 x 200.0 x 581.0 mm With Included Lens
Package Weight 62 lb
Box Dimensions (LxWxH) 29.88 x 25.63 x 14.75″
10,000 1 dynamic contrast
The PT-RZ120BU features HDMI, VGA, 3G-SDI, DVI-D, and HDBaseT inputs, allowing for connectivity to nearly any device. The projector can be controlled via the included wireless/wired remote control, HDBaseT, or RS-232 with various control software options. Key Features
Panasonic RZ120BU Overview Brightness of 12,000 Lumens
Panasonic RZ120BU Overview WUXGA (1920 x 1200) Native Resolution
Various Optional Interchangeable Lenses Produces Images up to 600″
HDBaseT, 3G-SDI, DVI-D, VGA, HDMI Inputs 360 Rotation-Capable
Compatible with Popular Control Systems HDBaseT & RS-232 Controllable
Compatible with Popular Control Systems Wireless/Wired Remote Included 1-Chip DLP Technology with Solid Shine Lasers
The PT-RZ120BU uses dual solid-state lasers and phosphor wheels to project immersive 12,000-lumen images at WUXGA resolution. Delivering high color accuracy and contrast as well as consistent color uniformity, the PT-RZ120BU is suitable for large-format multi-screen projection., supports uncompressed 4K signal input via HDMI or DIGITAL LINK. Note: Images are converted to Full HD (1920 x 1080) upon video projection., is compatible with Art-Net DMX protocol for lighting management, allowing the projector to be connected to a lighting console, opening the door to a range of added functionality and control options. The onboard LAN terminal also supports PJLink (Class 2) for integration into an existing A/V network using multiple device brands.
System Daylight View 3 System Daylight View 3 helps prevent images from washing out in well-lit environments, enhancing brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors for an augmented visual impact.
Dust-Resistant Airtight Optical Block The optical block is airtight, which helps to ensure consistent image quality for up to 20,000 hours without maintenance.
Dust-Resistant Airtight Optical Block Selectable Operational Modes Help Maintain Image Quality
Dust-Resistant Airtight Optical Block In Normal Mode, the projector can operate continuously for up to 20,000 hours. In Eco Mode, this is extended up to 24,000 hours of continuous operation. These modes enhance suitability for education and signage applications.
Engineered for Stable 24/7 Operation with Light Source Failover Protection
The dual-drive laser optical engine groups laser diodes into two discrete modules. A fail-safe redundancy circuit works to minimize loss of brightness uniformity and color uniformity if a laser diode fails, making the projector suitable for mission-critical applications.
Single-Cable DIGITAL LINK Solution Upward HDBaseT-compatible DIGITAL LINK supports transmission of uncompressed video and control commands through a single Cat5e or higher STP cable for distances up to 492′ at Full HD or 164′ at 4K resolution. An optional DIGITAL LINK Switcher or Digital Interface Box can further simplify installation in large venues while reducing cost and improving reliability.
Single-Cable DIGITAL LINK Solution Separate terminals for LAN and DIGITAL LINK enhance versatility. 100Base-TX- and 10BaseT-compatible control signals can be assigned to the LAN terminal, freeing up the DIGITAL LINK terminal for video. Data Cloning
Using the built-in data-cloning function, configuration data can be copied from a master projector to slave projectors via LAN, expediting the setup of multiple RZ120BUs.
Wide-Range Powered Lens Shift Images can be quickly and easily aligned via remote control using the projector’s extra-wide powered lens shift, which offers -16 to 50% vertical and -10 to 30% horizontal adjustment with the preinstalled standard lens.
Wide-Range Powered Lens Shift Contrast Sync and Shutter Sync Function
The PT-RZ120BU features contrast and shutter sync functions for multi-screen and mapping applications. Contrast sync allows the projector’s digitally modulated contrast function to be synchronized over the network for consistent picture quality across screens. Shutter Sync incorporates a master/slave principle to synchronize shutter on/off timing between all networked projectors. It includes simultaneous fade-in and fade-out functions.
Wide-Range Powered Lens Shift Reduce Inventory Costs with Shared Lenses
The PT-RZ120BU shares optional lenses with other Panasonic projectors, reducing TCO for staging and event companies with large projector inventories. These lenses are designed to attach and detach with one-touch ease. Note: The ET-DLE030 lens is not compatible with the PT-RZ120BU projector. Quick Start, Quick Off
Wide-Range Powered Lens Shift The laser light source doesn’t require any warm-up, so images appear almost instantly (in about one second). There’s also no cool-down period needed when turning the power off at the mains the projector can be turned on and off any time as necessary.
Multi-Monitoring and Control Software The software offers monitoring and control of up to 2048 devices over a LAN network from a single computer. For monitoring, status for individual devices can be listed in groups, with more detailed information shown separately. Control functions include power on/off, input switching, scheduling, and command inputs.
Optional Early Warning Software Early Warning Software monitors the status of projectors and displays connected to an intranet and informs you when an abnormality is detected or predicted, or when there are symptoms of trouble, helping to minimize downtime for stable operation.
Multi-Unit Brightness and Color Control This function is designed to automatically correct brightness and color fluctuations that occur over time in individual projectors in a multi-screen system.
Multi-Screen Support System Connects Multiple Screens With edge blending, edges of adjacent screens can be blended and their luminance controlled. Color matching corrects for slight variations in the color reproduction range of individual projectors. Computer software helps provide easy, accurate control.
Multi-Unit Brightness and Color Control Backup Input Setting Helps Optimize Performance
Multi-Unit Brightness and Color Control This feature allows for smooth switching to a backup input signal should the primary signal be disrupted, helping to ensure reliability for mission-critical control rooms, projection mapping, staging, and other applications where image display must be maintained. Free 360 Rotation
Multi-Unit Brightness and Color Control The projector can be rotated 360 for installation and projection at virtually any angle.
Supports Art-Net DMX and PJLink Geometric Adjustment adapts the image for projection onto spherical, cylindrical, and other shaped screens. Fine-tuning is performed via the remote control, with no external equipment needed. Paired with the Multi-Screen Support System, creative mapping presentations are possible in a variety of event and staging applications.
Geometry Manager Pro Software This software is designed to expand built-in functionality to make complex adjustments easier. The free software package includes enhanced color matching and edge blending for multi-screen projection and adjustment of multiple screens over the network. An optional upgrade kit for this software adds creative masking capability using either four lines or bitmap data, as well as uniformity correction and correction area expansion.
Geometry Manager Pro Software Detail Clarity Processor 3 Sharpens Details
Geometry Manager Pro Software Smart projector control
10,000:1 dynamic contrast Compact and lightweight
Geometry Manager Pro Software Quiet Modes 1 & 2 reduce operational noise
Geometry Manager Pro Software Suitable for high-ceiling installation Panasonic RZ120BU Specs Image Display Display System 1-Chip 0.67″ DLP
Geometry Manager Pro Software Native Chip Resolution 1920 x 1200 (WUXGA) Maximum Brightness 12,000 Lumens Uniformity 90%
Aspect Ratio Native 16:10
Lens Shift Vertical -16 to 50%
Lens Shift Horizontal -10 to 30% Optical Zoom 1.39x
Throw Distance Throw Ratio 1.7 to 2.4:1
Projection Size 100 600″ / 254.00 – 1524.00 cm Features Keystone Correction
Projection Size Vertical 40
Projection Size Horizontal 15 Ceiling Mountable Yes
Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (BNC) Video Input, x DVI-D Video Input, x 5BNC Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input 1 x DE-9/DB-9 Control Input 1 x DE-9/DB-9 Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x DE-9/DB-9 Remote Input 1 x RJ45 Control, Data Input/Output
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours
Fan Noise Full Brightness 44 dB
Fan Noise Medium Brightness 41 dB
Fan Noise Low Brightness 38 dB
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 1100 W
Power Consumption Operating Temperature 32 to 113 F / 0 to 45 C
Power Consumption Operating Humidity 10 to 80%
Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 22.9″ / 498.0 x 200.0 x 581.0 mm With Included Lens Packaging Info Package Weight 62 lb
Power Consumption Box Dimensions (LxWxH) 29.88 x 25.63 x 14.75″
SKU PT-RZ120BU
